De300Wifi Double-leaf Gate Drive Kit 2X3M 400Kg Photocells Lamp 4Xpilot

Double-leaf gate operator DE300WiFI 2x3m 400kg Photocells Lamp 4xRemote control

⭐ Double-leaf gate operator DE300WiFi – 2×3 m / 400 kg – Wi-Fi, Bluetooth, 4× remote control, lamp, photocells

✅ The DE300 set is a complete automation for double-leaf gates with a length of one leaf 3 m and a weight of up to 200 kg (total: 6 m / 400 kg). Control via Wi-Fi, Bluetooth and remote controls, smooth operation and safety functions ensure comfortable use all year round - in rain, snow and at night.

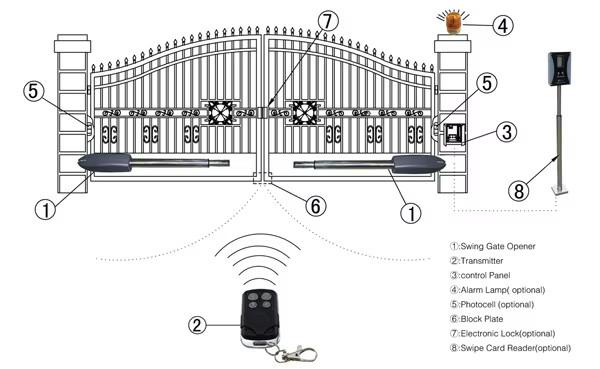

⭐ Kit contents:

• 2 × electromechanical actuators KM-C023 with mounting elements

• Control unit with Wi-Fi and Bluetooth (hermetic housing + mounting pins)

• 4 × 4-channel remote control

• Warning lamp with antenna

• Photocells (adjustable, 180° rotatable)

• Mounting brackets for gate posts and wings

• 2 × keys for emergency opening in case of power failure

• Set of anchors and mounting screws

• Instruction manuals in Polish

• Warranty card – 24 months

⭐ Control unit with Wi-Fi and Bluetooth - simple configuration, wide possibilities

• LED display - intuitive programming and diagnostics.

• Phone control (Android/iOS) - XHouse IoT application allows you to operate swing and sliding gate drives, lighting and other modules in the home.

• Support for up to 126 remote controls.

• Soft Start / Soft Stop - smooth start-up and braking.

• Wicket function - opening one wing for pedestrians/bicycles.

• Automatic closing - programmable closing time.

• Operation "overlapping" gates - delay of one wing relative to the other.

• Inputs forvideo intercom / intercom / keypad / wall switch, possibility ofWi-Fi / GSM modules.

• Option foremergency power supply: 12 V / 24 V battery.

⭐ Technical data of the control unit

• Power supply: 230 V AC ±15%

• Actuator voltage: 24 V DC

• Remote control frequency: 433.92 MHz

• Remote control range: up to 150 m

• Protection class: IP55

• Operating temperature: −25°C ~ +65°C

• Protection: amperometric, thermal, overload

⭐ Actuators - power and durability

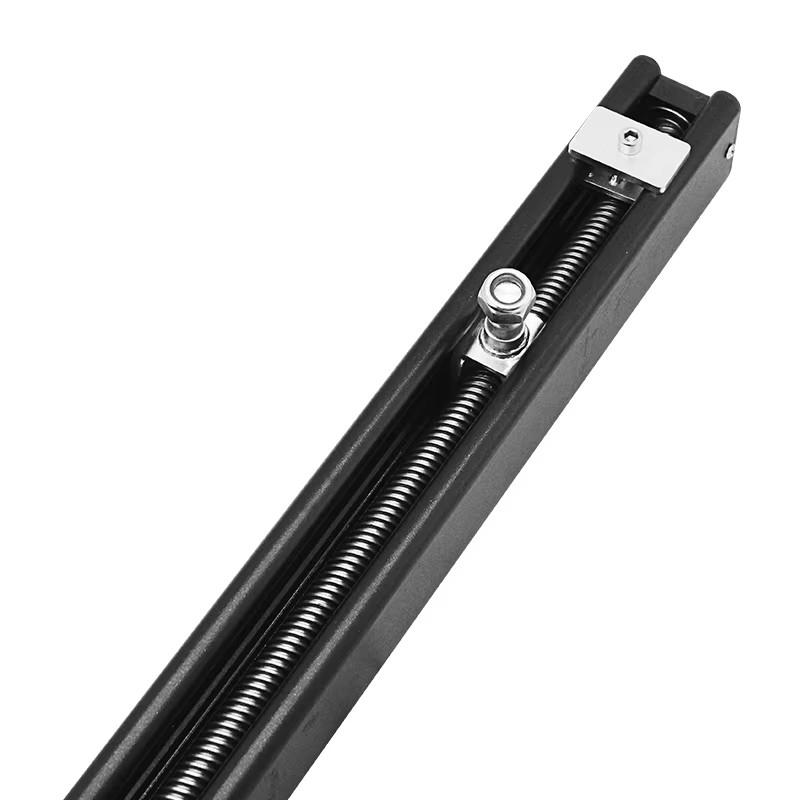

• Screw actuators with24 V DC worm gear motor - a proven solution for medium loads.

• Aluminum housing resistant to weather conditions.

• Racks and gears made of brass alloy - increased durability.

• Multi-position handles - quick installation even on narrow posts (post width from 10 cm).

• Overload switch - after When the stop is reached, the control unit cuts off the power supply.

• Emergency unlocking – manual opening in the absence of voltage.

✅ Technical data of the actuators:

• Power supply: 24 V DC

• Power: 60 W

• Max. leaf length: 3 m

• Max. leaf weight: 200 kg

• Max. Opening angle: 110°

• Arm extension speed: 24 mm/s

• Rotation speed: 100 RPM

• Protection class: IP55

⭐ LED signal lamp with antenna

• Universal power supply:12–24 V AC/DC and 85–265 V AC/DC

• Built-in interrupter– possibility to choose constant or pulse light mode

• Antenna433.92 MHz– significantly increases the range of remote controls

• Powerful LED diodes – vibration-resistant, visible from all sides

• HousingIP54– weather-resistant

• Compatible with drives of most leading brands

• Designed for swing and sliding gates

• LED light source in the form of a post emitting 3 directions

• Bright, even light visible from all sides of the lamp

• Maintenance-free and energy-saving - only 3W of power consumption

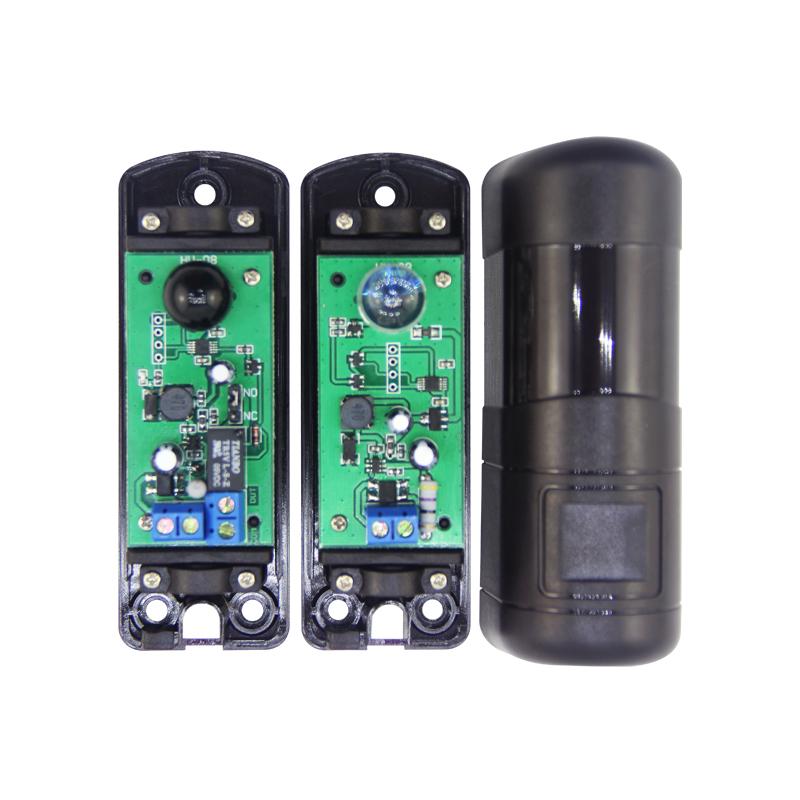

⭐ 180° rotating photocells - vertically and horizontally

• Adjustable viewing angle 180° - full vertical and horizontal adjustment

• Operating range: up to 12 m

• Dimensions:108 × 35 × 40 mm

• Power supply:12–24V DC/AC

• Current consumption:RX 50 mA / TX 30 mA

• Operating temperature range:-20°C to +55°C

• Weight: 105 g

• The set includes practical assembly pins

✅ 4 × Pilot 4-channel– with a dynamically changing code (433.92 MHz), each remote control has a unique identity code, enables convenient control of home automation.

⭐ Mounting elements and Security

✅ The included elements ensure easy installation and safe and reliable operation of the gate drive.

• Mounting anchors– a set of anchors and screws for solid mounting of the brackets

• 2 × Unlocking keys– enable manual opening of the gate in the event of a power outage

• Mounting brackets for actuators– multi-position, galvanized, protected against corrosion

• Limit– mounted to the ground, stops the gate in the closed position

⭐ FAQ – Frequently Asked Questions

1. Can I install the DE300WiFi kit myself?

Yes, the kit is suitable for self-assembly. The included instructions in Polish guide you step by step through the entire installation process.

2. What to do if there is a power outage?

The set includes emergency keys that allow you to manually open the gate. It is also possible to connect a 12 V / 24 V emergency battery.

3. Can I control the gate from my phone?

Yes, the control unit has a Wi-Fi and Bluetooth module that allows for operation via a mobile app (Android/iOS). You can also use the remote controls included in the set.

4. How many remote controls does the control unit support?

You can add up to 126 remote controls to the control unit's memory, which is useful both in single-family homes and with larger numbers of users.

5. Is the set weather-resistant?

Yes, the actuators have an IP55 protection class, and the control unit and lamp are designed to operate in temperatures from -25°C to +65°C.

6. Does the set have a wicket function?

Yes, you can program the opening of only one leaf, which makes it easier for pedestrians or cyclists to pass through.

7. Does the set have protection against collisions between the gate and an obstacle?

Yes, it hasamperometric, thermal and overload protection, and additionally photocells detect obstacles in the path of the gate leaves.
