De300Wifi 2X3M 400Kg Wi-Fi 2Xpilot Double Gate Operator Kit

De300WiFi double-leaf gate drive kit 2x3m 400kg Wi-Fi 2xRemote control

DE300WiFi double-leaf gate drive 2x3m 400kg Wi-Fi 2xRemote control

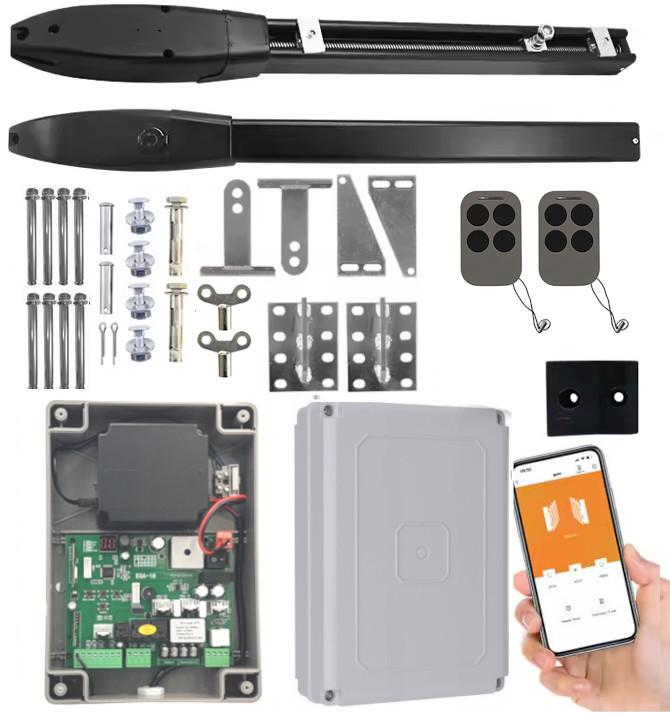

DE300 double-leaf gate kit with WIFI

Maximum length of one leaf 3m, weight 200 kg. The gate can be up to 6 meters long and weigh 400 kg.

• 2x KM-C023 electromechanical actuatorswith mounting elements

• Control unit with WiFi

• Hermetic housing for the control unit

• Mounting pins for the control unit

• 2 x 4-channel remote control

• Mounting brackets for posts and gate leaves

• 2x Keys for emergency opening of the gate in the event of a power failure

• Instruction manuals in Polish

• Warranty card - 24 months

Gate automation - convenience and comfort of use

By installing a remote-controlled gate drive to the gate, you can open the gate with a single press of a button on the remote control.

At any time of the year, day or night, in any weather conditions, whether rain or snow, thanks to the installed remote-controlled gate drive, you can safely enter your property without having to get out of your car.

The DE300 set is designed for double-leaf gates with a single leaf length of up to 3.0 meters and a leaf weight of up to 200 kg (the entire gate weighs up to 400 kg and is up to 6 meters long).

After reading the instructions, the DE300 set can be installed by yourself. Step by step, in accordance with the information contained in the instructions, you can successfully complete the installation yourself. If you have any questions, we will be happy to answer and explain any issues.

We have included installation instructions as an attachment to the auction (in the "Additional information" tab below the product description) so that you can see how simple it is before purchasing.

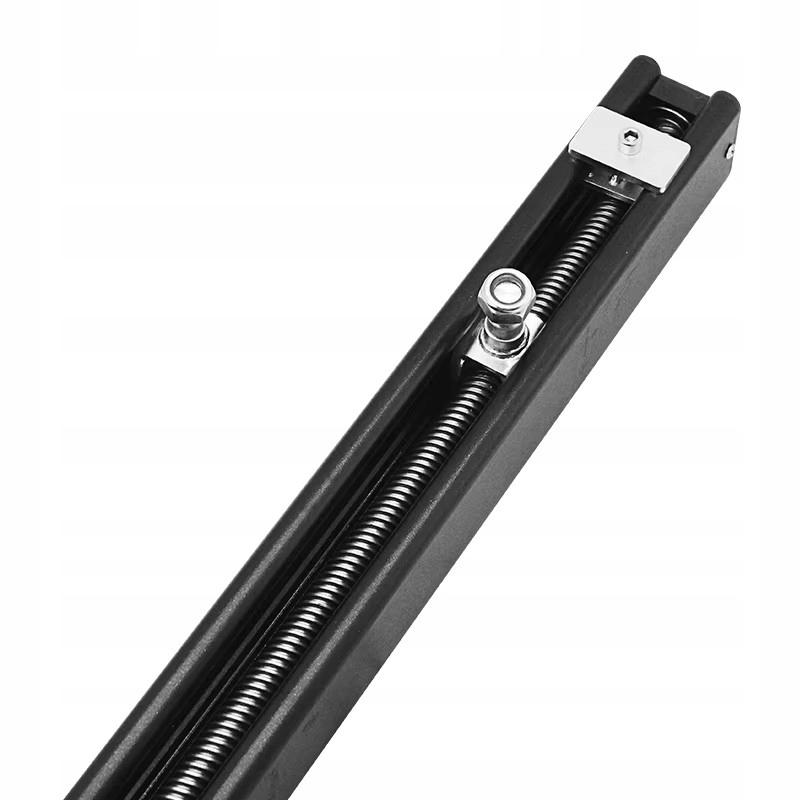

The screw actuator with a 24 V DC worm gear motor is ideal for use in medium-duty gates.

Thanks to the universal multi-position handles included in the set, installation is very simple.

The actuator housing is made of aluminum and ensures high resistance to weather conditions, while the racks and gears are made of a high-quality brass alloy, which guarantees increased durability and resistance to damage.

The range of movement of the actuators during operation is determined by an overload switch, i.e. when a specific point (a bumper attached to the ground) is reached, the control unit disconnects the power supply.

The set is equipped with solid, multi-position universal mounting brackets, which greatly simplifies installation and reduces its time. Universal mounting brackets are perfect for double-leaf gates in virtually any configuration.

The set includes two keys for emergency gate unlocking. In the event of a power outage, manually unlock the actuators (using the included key) and manually open the gate.

The control unit also provides the option of installing an emergency battery power supply that will open the gate in the event of a power outage.

Control Unit Functions

The control unit is intuitive and easy to install. Thanks to the simple and intuitive LED display, even someone who has never used it can program it. Power from the 230V mains is provided by a high-quality toroidal transformer, which eliminates unwanted voltage spikes.

• External Control: If you want to remotely open your gate from your garage, home, or anywhere in the world? No problem. You can connect devices to the control unit that will allow you to open the gate, including: video intercom, intercom, code keypad, phone control from anywhere in the world using an app (connected to the control unit via WiFi), and a universal radio receiver.

Thanks to the universal radio receiver, you can also control this device using remote controls from other brands.

• Soft Start and Soft Stop - guarantees smooth operation during gate opening and slows down the gate leaves in the final phase of operation, making the gate close gently and quietly (avoiding slamming). This function ensures high-quality operation of the actuators.

• Wicket function (for opening wicket gates or just one gate leaf), if opening the entire gate is not necessary, e.g., when you want to go for a walk or ride a bike, you can open only one gate leaf.

• Automatic closing - you can program the time after which the gate will close automatically in the control unit.

• Support for various types of gates, including gates in which one of the leaves has a closing strip where the gate operates "with an overlap." This is made possible by setting the advance time of one leaf relative to the other.

• The device's operating status is indicated by an LED display, which aids in device configuration and diagnostics.

• Possibility of connecting an emergency power supply (12V or 24V battery), which ensures uninterrupted operation of the device even in the event of a power outage.

• Overload protection: during drive operation, the control unit continuously measures the actuator's operating current. After exceeding the value set in the control unit (after encountering an obstacle e.g., a car), the gate automatically stops.

• Automatic locking of the actuator after stopping: no need to use additional locks on the gate to protect it against intruders. The design of the automatic gear ensures that after the gate is closed, the actuator locks and keeps the gate in the closed position.

SWING GATE ACTUATORS

• Actuator power supply: 24VDC

• Actuator power: 40W

• Maximum length of one leaf: 2.5 meters

• Maximum weight of one leaf: 200kg

• Maximum opening angle: 110 degrees

• Arm extension speed: 16 mmm/s

• Rotation speed：250 RPM

• Piston stroke:300mm

• Protection class：IP55

• Durable gear made of high-quality metal alloy

• Emergency release of the front mount

• WiFi control via phone applications (Android and iOS)

• Possibility to upload up to 126 remote controls

• Control unit power supply: 230V +/- 15%

• Actuator supply voltage: 24VDC

• Control unit power supply: 230V

• Remote control frequency: 433.92 Mhz

• Max. remote control range: 150 meters

• Option to connect a battery Emergency: 12V/24V

• Protection class: IP55

• Operating temperature: -25°C ~ +65°C

• Amperometric, thermal, overload protection

• Automatic closing

• Wicket function

• Delay function of one leaf in relation to the other

• Soft start and stop function of the actuators

• Control inputs for WIFI, GSM modules or video intercom

• Possibility to connect a wired wall switch

• Easy connection and programming

2 x 4-channel gate remote control

4-channel gate remote control, with a dynamically randomly changing code at a frequency of 433.92 MHz. Gate remote controls will help you manage your home automation. Each gate remote control has its own identity code – so remote controls can be copied from one remote control to another.

Set of anchors and mounting screws for attaching the brackets

2x Unlocking keys

For manual unlocking of the gate drive in the event of a power outage

Mounting brackets for actuators

Multi-position brackets with anti-corrosion protection - galvanized

Mounted to the ground to stop the gate in the closed position

• Condition: New

• Brand: Delmar

• Product weight with individual packaging: 18kg

• Maximum leaf weight: 200kg

• Maximum leaf length: 3m

• Supply voltage: 24V

• Condition: New

• Brand: Delmar

• Model: DE300WiFi

• Product weight with individual packaging: 15kg

• Drive type: For swing gates

• Maximum leaf length: 3 meters

• Maximum leaf weight: 200 kg

• Actuator supply voltage: 24V

• Supply voltage: 230V
