Drive Kit For Sliding Gates Dp1000Wifi 4X Remote Control 5X Lamp Strip

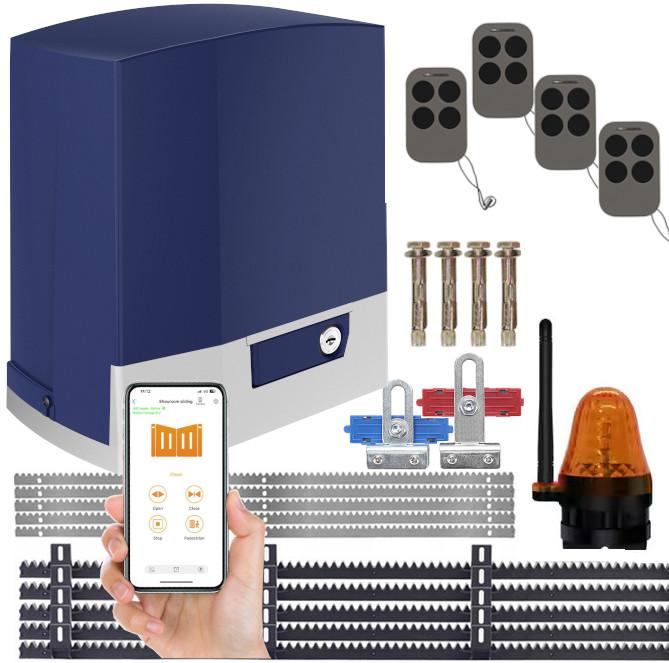

DRIVE KIT FOR SLIDING GATES DP1000WiFi 4x REMOTE CONTROL 5x STRIP LAMP

Driver for sliding gates DP1000WiFi

• automatic closing - possibility of automatic closing of the gate after a pre-set time from its opening

• wicket function - partial opening of the sliding gate allows the gate to be used as a wicket for pedestrians or cyclists

• smooth torque adjustment - allows for precise setting of the force with which the sliding gate motor should operate

• high efficiency - thanks to the use of a gear adapted to the engine power, the efficiency of the sliding gate drive has been significantly optimized

• soft start - stop - reduced noise and increased durability of moving parts, as well as achieving higher operating smoothness

• impact protection - smoothly adjustable sensitivity of the anti-crush protection system (overload protection)

• setting the movement directions - the ability to set the opening and closing direction of the sliding gate means that the gate drive can be mounted in two ways

• easy programming of the remote control - for Remote controls can be easily added to the sliding gate drives.

• DP1000WiFi drive with a built-in control unit and built-in WiFi on the motherboard

• 4 x 4-channel remote controls

• 2 x keys for emergency opening of the gate in the event of a power outage

• Indicator lamp with an antenna to increase the range of the remote controls

• 5 x toothed rack (5 meters in total)

• Set of magnetic limit switches for the toothed rack

• Mounting base and anchors

• Set of mounting elements (screws, nuts)

• Warranty card

• Installation and programming instructions in Polish for downloads

Gate automation - convenience and comfort of use

By installing a remote-controlled gate drive to the gate, you can open the gate with a single press of a button on the remote control.

At any time of the year, day or night, in any weather conditions, whether rain or snow, thanks to the installed remote-controlled gate drive, you can safely enter your property without having to get out of your car.

The DP1000AWiFi kit is designed for sliding gates with a leaf weight of up to 1000 kg.

After reading the instructions, the DP1000WiFi kitcan be installed independently. Step by step, following the instructions in the manual, you can successfully complete the installation yourself. If you have any questions, we will be happy to answer and clarify any issues.

We have included the instructions as an attachment to the auction (in the "Additional information" tab below the product description) so you can see how simple it is before purchasing.

TECHNICAL DATA OF THE DP1000WiFi DRIVE WITH BUILT-IN CONTROL UNIT:

• Max gate weight: 1000 kg

• Motor power: 130 W

• Gate leaf speed: 16 m/min

• Motor rotation speed: 1400 rpm

• Torque Torque: 22.0 N.m

• Output gear module: M=4

• Output gear number: Z=16

• Water resistance: IP44

• Operating temperature: -25° to 55°

• Device weight: 11 kg

• Dimensions (L x W x H) (mm): 256 x 185 x 270 mm

• Power supply: 230 V

• Remote control range up to: 50 m

• Number of remote controls that can be saved: 118

4 x 4-channel gate remote control

4-channel gate remote control, with a dynamically randomly changing code at a frequency of 433.92 MHz. Gate remote controls will help you manage your home automation. Each gate remote control has its own identity code.

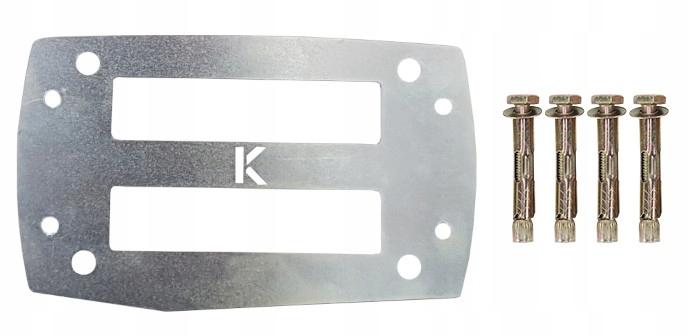

Mounting base and mounting anchors

• Factory-prepared holes for screwing the base on

• Factory-prepared holes for passing cables through

• Anti-corrosion protection: galvanized

Magnetic limit switches

They inform the drive from where the gate should open and close. Mounted on the toothed rack. The set also includes magnet holders.

2x Unlocking keys

For manual unlocking of the gate operator in the event of a power outage.

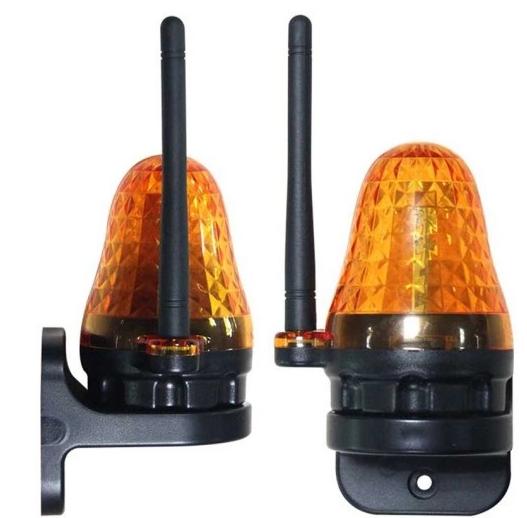

• Power supply: from 24V AC/DC to 230VAC

• Power: max 5W

• Operating temperature: -20°C / +55°C

• Lampshade: orange

• Technology: LED

• Lifespan: 50,000h

• Intended use: signal lighting

• Ingress protection: IP-54

• Mode Operation: continuous or pulsed 0.5s

• Resistance to shock and vibration: high

• Antenna: built-in

• Power consumption (with continuous light): 2.5 W

Polyamide strips with a metal core.

• quiet operation

• mounting method: farmers (sheet metal screws)

Galvanized metal toothed rack

• set of spacer sleeves for each rack

• toothed rack thickness 8 mm

• mounting method: welding

In the absence of information about the toothed rack, we include polyamide racks with a metal core.
