Central Swing Gate Controller 24V Housing 2X Wifi Bt Remote Control

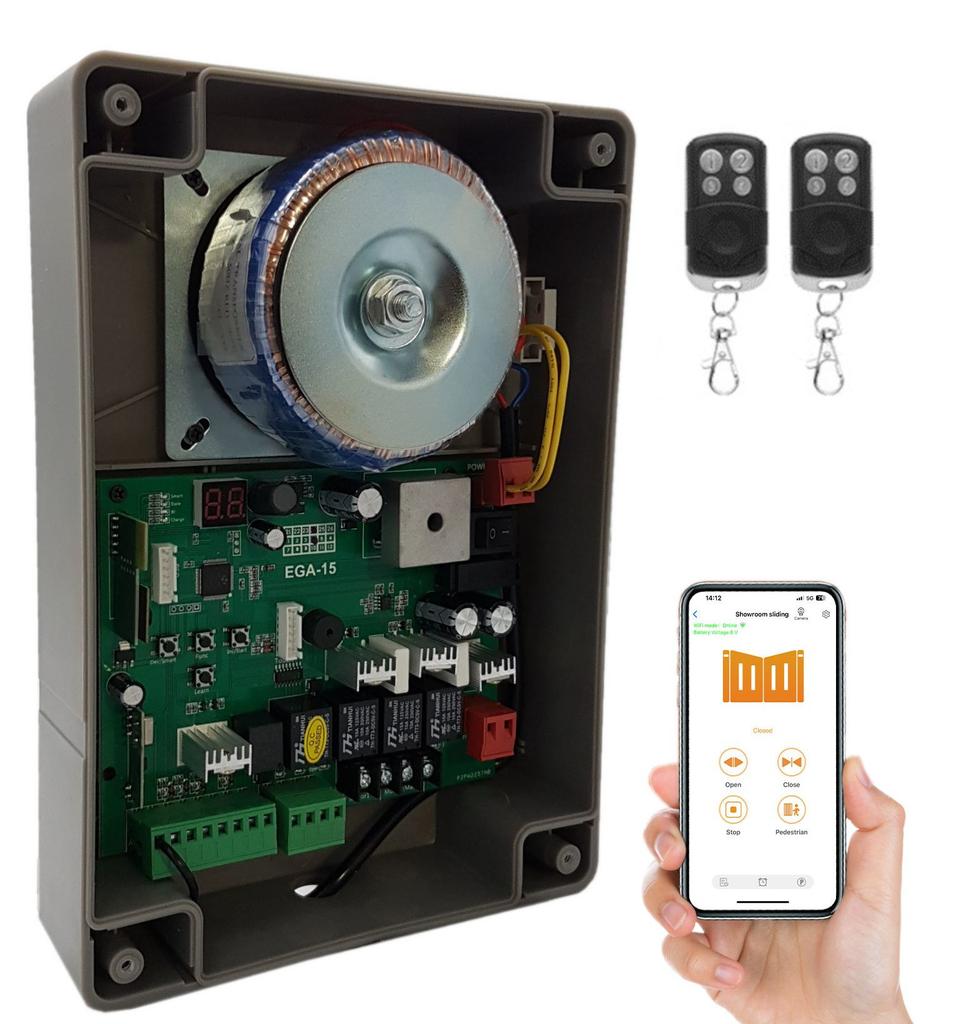

DEEGA18 control panel with WiFi and bluetooth + 2 remote controls Included in the set

Control unit with WiFi and Bluetooth

Possibility to configure settings using the application on the phone

The unit can be used as a replacement for control units for swing and double-leaf gates with 24V actuators

• Two-digit red LED display that helps in configuring the control unit parameters

• Possibility to connect 24V actuators

• Soft start and deceleration of actuators before closing

• Automatic closing function (adjustable time to auto-closing)

• Compatibility with many types of gates, including those with overlapping closures

• Function for operating only one actuator (e.g. for opening gates or just one gate leaf)

• LED indication of device status

• Smartphone control via WiFi or Bluetooth possible

Control unit functions

The control unit is intuitive and easy to install. Thanks to the simple and intuitive LED display, the unit can be programmed even by someone who has never used it before. Power is supplied from the 230V mains. using a high-quality toroidal transformer that eliminates unwanted voltage spikes.

• External Control: If you want to remotely open your gate from your garage, home, or anywhere in the world? No problem. You can connect devices to the control unit that will allow you to open the gate, including: video intercom, intercom, code keypad, phone control from anywhere in the world using an app (connected to the control unit via WiFi), and a universal radio receiver.

Thanks to the universal radio receiver, you can also control this device using remote controls from other brands.

• Soft Start and Soft Stop - guarantees smooth operation during gate opening and slows down the gate leaves in the final phase of operation, making the gate close gently and quietly (avoiding slamming). This function ensures high-quality operation of the actuators.

• Wicket function (for opening wicket gates or just one gate leaf), if opening the entire gate is not necessary, e.g., when you want to go for a walk or ride a bike, you can open only one gate leaf.

• Automatic closing - you can program the time after which the gate will close automatically in the control unit.

• Support for various types of gates, including gates in which one of the leaves has a closing strip where the gate operates "with an overlap." This is made possible by the function of setting the advance time of one of the leaves in relation to the other.

• The device's operating status is indicated by an LED display, which aids in device configuration and diagnostics.

• Possibility of connecting an emergency power supply (12V or 24V battery), which will ensure uninterrupted operation of the device even in the event of a power outage.

• Overload protection: during drive operation, the control unit continuously measures the actuator's operating current. After exceeding the value set in the control unit (after encountering an obstacle e.g. a car), the gate automaticallystops.

• Optical protection: a set of photocells (not included) can be connected to the control unit. When the infrared beam between the photocells is interrupted by an object entering the gate (before physical contact with the gate), the gate will stop automatically.

• Attribute: Value

• Controller power supply: 230VAC +/- 15%

• Actuator supply voltage: 24VDC

• Max. actuator power: 90W

• Max. Remote control range: 100 meters

• Protection class: IP55

• Operating temperature: -25°C ~ +65°C
