Double-leaf gate operator Nöckel De300Wifi 2X3M 400Kg Wi-Fi Bt 2Xpilot

NÖCKEL DE300WiFi Double-Leaf Gate Operator

Set 2x3.0m 400kg Wi-FI Bluetooth 2xRemote Control

Maximum length of one leaf 3.0m, weight 200 kg. The gate can be up to 6 meters long and weigh 400 kg in total.

NÖCKEL DE300 is more than just a drive - it's your personal entrance guard. Designed in accordance with the "For Your Safety" philosophy, it combines uncompromising mechanical strength with state-of-the-art Smart Home electronics.

This set is a choice for people who, instead of looking for compromises, choose a Polish brand, reliability and prestigious quality of workmanship.

▪ SAFETY: Advanced anti-collision systems ▪ INTELLIGENCE: Full control via WiFi (XHouse IoT) ▪ DURABILITY: Full resistance to extreme weather conditions

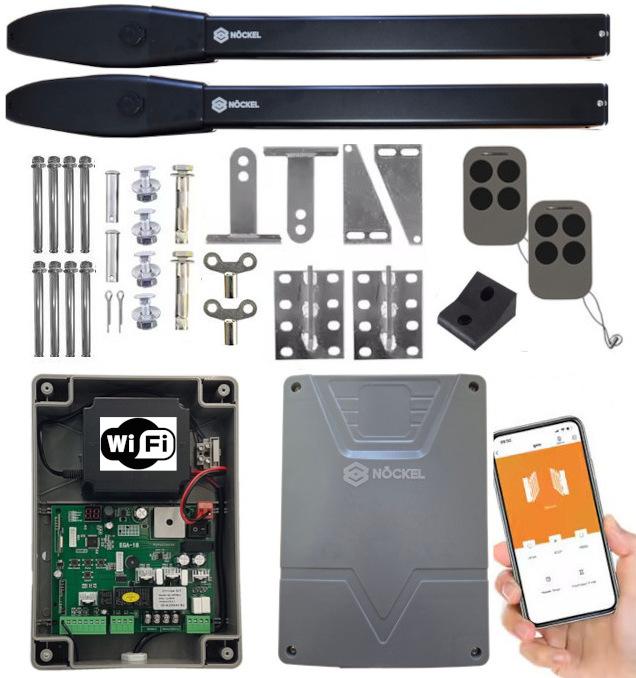

■ Set contents:

• 2 × electromechanical actuators KM-C023 with mounting elements

• Control unit with Wi-Fi and Bluetooth (hermetic housing + mounting plugs)

• 2 × 4-channel remote control

• Mounting brackets for gate posts and wings

• 2 × keys for emergency opening

• Set of mounting anchors and screws

• Instructions in Polish

Actuators – power and durability

• Screw actuators with 24 V DC worm gear motor – a proven solution for medium loads.

• Weatherproof aluminum housing.

• Racks and gears made of brass alloy – increased Durability.

• Multi-position handles – quick installation even on narrow posts (post width from 10 cm).

• Overload switch – when the door reaches the bumper, the control unit cuts off the power supply.

• Travel limiters "stoppers" on the actuators – possibility of setting travel limiters on the actuators

• Emergency unlocking – manual opening in the event of a power failure.

✅ Technical data of the actuators:

• Power supply: 24 V DC

• Power: 60 W

• Max. leaf length: 3 m

• Max. leaf weight: 200 kg

• Max. Opening angle: 110°

• Arm extension speed: 24 mm/s

• Rotation speed: 100 RPM

• Protection class: IP55

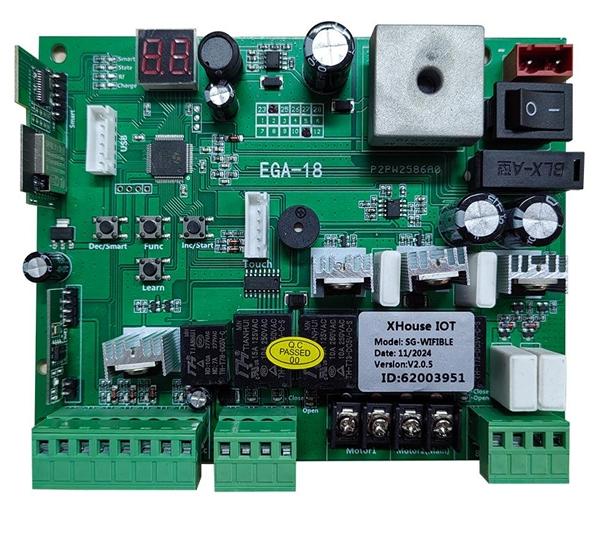

Control panel with Wi-Fi and Bluetooth - simple configuration, wide possibilities

• LED display - intuitive programming and diagnostics.

• Phone control (Android/iOS) - The XHouse IoT application allows you to operate swing and sliding gate drives, lighting and other modules in the home.

• Support for 126 remote controls.

• Soft Start / Soft Stop – smooth start-up and braking.

• Wicket function – opening one wing for pedestrians/bicycles.

• Automatic closing – programmable closing time.

• Operation of overlapping gates – delay of one wing relative to the other.

• Inputs for video intercom / intercom / keypad / wall switch, possibility of Wi-Fi / GSM modules.

• Option of emergency power supply: 12 V / 24 V battery.

■ Technical data of the control unit:

• Power supply: 230 V AC ±15%

• Actuator voltage: 24 V DC

• Remote control frequency: 433.92 MHz

• Remote control range: up to 150 m

• Protection class: IP55

• Operating temperature: −25°C ~ +65°C

• Protection: amperometric, thermal, overload

■ Remote controls

► 2 × 4-channel remote control – with a dynamically changing code (433.92 MHz), each remote control has a unique identity code, enables convenient control of automation Home.

• 433 MHz frequency – a stable, interference-resistant radio signal guarantees instant and reliable operation even in densely built-up areas.

• Four independent channels – you can operate up to four different devices with one remote: gate drives, garage entry, or gate.

• Connecting ring – a practical eyelet allows for quick connection to a lanyard or snap hook.

• Can be attached to keys – the compact housing fits on any keychain, so you always have the remote with you.

■ Mounting and safety elements

► The elements included in the set ensure easy installation and safe and reliable operation of the gate drive.

• Mounting anchors – a set of anchors and screws for solid mounting of the brackets

• 2 × Unlocking keys – allow manual opening of the gate in the event of a power failure

• Mounting brackets for actuators – multi-position, galvanized, protected against corrosion

• Limit – mounted to the ground, stops the gate in position closed

FAQ – Frequently Asked Questions

1. Can I install the DE300WiFi kit myself?

Yes, the kit is suitable for self-assembly. The included instructions in Polish guide you step by step through the entire installation process.

2. What to do if there is a power outage?

The set includes emergency keys that allow you to manually open the gate. It is also possible to connect a 12V/24V emergency battery.

3. Can I control the gate from my phone?

Yes, the control unit has a Wi-Fi and Bluetooth module, which allows for operation via a mobile app (Android/iOS). You can also use the included remote controls.

4. How many remote controls does the control unit support?

You can add up to 126 remote controls to the control unit's memory, which is useful both in single-family homes and with larger numbers of users.

5. Is the set weather-resistant?

Yes, the actuators have an IP55 protection class, and the control unit and lamp are designed to operate in temperatures from -25°C to +65°C.

6. Does the set have a wicket function?

Yes, you can program the opening of only one leaf, which makes it easier for pedestrians or cyclists to pass through.

7. Does the set have protection against collisions between the gate and an obstacle?

Yes, it has amperometric, thermal, and overload protection, and additionally, photocells detect obstacles in the path of the leaves.
