Nöckel De300Wifi Double-leaf Gate Drive 2X3M 400Kg Wi-Fi 4X Remote Control, Photocell, Lamp

NÖCKEL DE300WiFi Double-Leaf Gate Operator

Set 2x3.0m 400kg Wi-FI Bluetooth 4xRemote control, photocell, warning light

Maximum length of one leaf 3.0m, weight 200 kg. The gate can be up to 6 meters long and weigh 400 kg in total.

NÖCKEL DE300 is more than just a drive - it's your personal entrance guard. Designed in accordance with the "For Your Safety" philosophy, it combines uncompromising mechanical strength with state-of-the-art Smart Home electronics.

This set is a choice for people who, instead of looking for compromises, choose a Polish brand, reliability and prestigious quality of workmanship.

▪ SAFETY: Advanced anti-collision systems ▪ INTELLIGENCE: Full control via WiFi (XHouse IoT) ▪ DURABILITY: Full resistance to extreme weather conditions

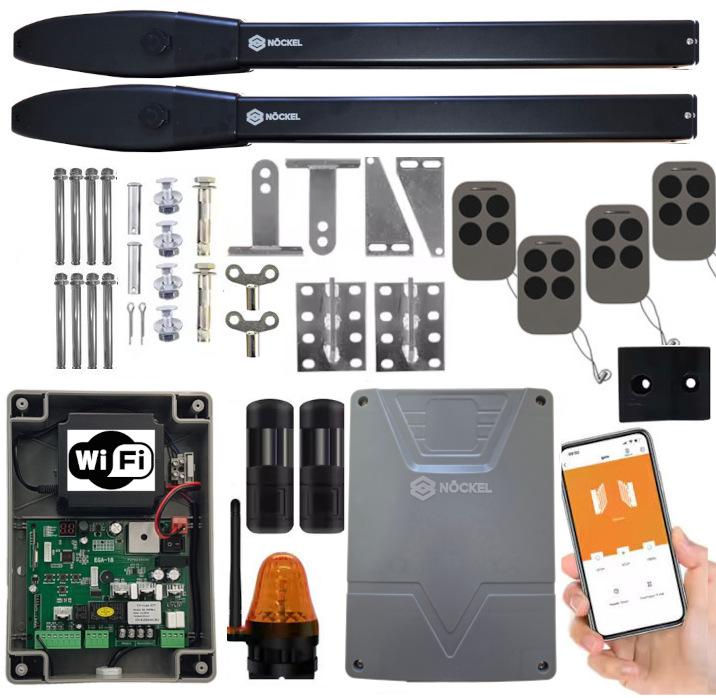

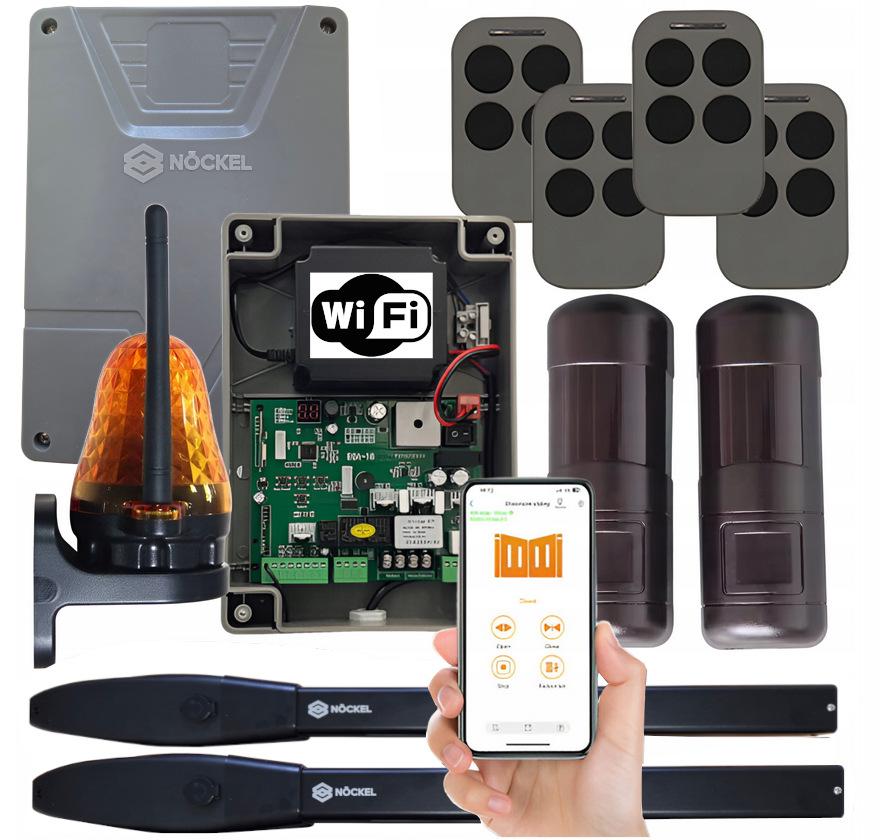

■ Set contents:

• 2 × electromechanical actuators KM-C023 with mounting elements

• Control unit with Wi-Fi and Bluetooth (hermetic housing + mounting plugs)

• Warning light with antenna

• Photocells (adjustable, 180° rotatable)

• 4 × 4-channel remote control

• Mounting brackets for gate posts and wings

• 2 × keys for emergency opening

• Set of anchors and screws assembly

• Instructions in Polish

Actuators – power and durability

• Screw actuators with 24 V DC worm gear motor – a proven solution for medium-sized loads.

• Aluminum housing resistant to weather conditions.

• Racks and gears made of brass alloy – increased durability.

• Multi-position handles – quick installation even on narrow posts (post width from 10 cm).

• Overload switch – when the door reaches the bumper, the control unit cuts off the power.

• Travel limiters "stoppers" on the actuators – possibility of setting travel limiters on the actuators.

• Emergency unlocking – manual opening in the event of a power failure.

✅ Technical data of the actuators:

• Power supply: 24 V DC

• Power: 60 W

• Max. leaf length: 3 m

• Max. leaf weight: 200 kg

• Max. Opening angle: 110°

• Arm extension speed: 24 mm/s

• Rotation speed: 100 RPM

• Protection class: IP55

Control panel with Wi-Fi and Bluetooth - simple configuration, wide possibilities

• LED display - intuitive programming and diagnostics.

• Phone control (Android/iOS) - The XHouse IoT application allows you to operate swing and sliding gate drives, lighting and other modules in the home.

• Support for 126 remote controls.

• Soft Start / Soft Stop – smooth start-up and braking.

• Wicket function – opening one wing for pedestrians/bicycles.

• Automatic closing – programmable closing time.

• Operation of overlapping gates – delay of one wing relative to the other.

• Inputs for video intercom / intercom / keypad / wall switch, possibility of Wi-Fi / GSM modules.

• Option of emergency power supply: 12 V / 24 V battery.

⭐ Control unit with WiFi and Bluetooth

• LED display – intuitive programming and diagnostics.

• Phone control (Android/iOS) – XHouse IoT application allows you to operate swing and sliding gate drives, lighting and other modules in the home.

• Supports up to 126 remote controls.

• Soft Start / Soft Stop – smooth start-up and braking.

• Wicket function – opening one leaf.

• Automatic closing – programmable time closing.

• Operation of "overlapping" gates - delay of one leaf relative to the other.

• Inputs for a video intercom and the ability to connect a wired wall switch.

• Option of emergency power supply: 12/2x12V battery.

■ Remote Controls

► 4 × 4-channel remote control – with a dynamically changing code (433.92 MHz), each remote control has a unique identity code, enables convenient control of home automation.

• 433 MHz frequency – a stable, interference-resistant radio signal guarantees instant and reliable operation even in densely built-up areas.

• Four independent channels – you can operate up to four different devices with one remote control: gate drives, garage entrance or gate.

• Connecting ring – a practical eyelet allows for quick connection to a lanyard or snap hook.

• Possibility of attaching to keys – the compact housing will fit on any keychain, so You always have the remote control with you.

180° rotating photocells - vertically and horizontally

• Adjustable viewing angle 180° - full vertical and horizontal adjustment

• Operating range: up to 12 m

• Dimensions: 108 × 35 × 40 mm

• Power supply: 12–24V DC/AC

• Current consumption: RX 50 mA / TX 30 mA

• Operating temperature range: -20°C to +55°C

• Weight: 105 g

• Includes practical mounting pins

■ LED signal lamp with antenna

• Universal power supply: 12–24 V AC/DC and 85–265 V AC/DC

• Built-in interrupter – possibility to choose constant or pulse light mode

• Antenna 433.92 MHz – significantly increases the range of the remote controls

• Powerful LED diodes – resistant to vibrations, visible from all sides

• Housing IP54 - resistant to weather conditions

• Compatible with drives of most leading brands

• Designed for swing and sliding gates

• LED light source in the form of a post emitting in 3 directions

• Bright, even light visible from all sides of the lamp

• Maintenance-free and energy-saving - only 3W power consumption

⭐ Mounting and security elements

✅ The elements included in the set ensure easy installation and safe and reliable operation of the gate drive.

• Mounting anchors – a set of anchors and screws for solid mounting of the brackets

• 2 × Unlocking keys – enable manual opening of the gate in the event of a power failure

• Mounting brackets for actuators – multi-position, galvanized, protected against corrosion

• Limit – mounted to the ground, stops the gate in the closed position

⭐ FAQ – Frequently Asked Questions

1. Can I install the DE300 set myself?

Yes, the set has been designed for easy installation. You will find a detailed step-by-step description in the manual.

2. Does the drive work in the event of a power outage?

Yes, the set comes with emergency unlocking keys. Additionally, the control unit allows for connecting a battery that will ensure operation in the event of a power outage.

3. Can the gate be opened from a phone?

Yes, thanks to the Wi-Fi and Bluetooth module, it is possible to control the gate using a phone app (Android / iOS).

4. How many remote controls can I program for the set?

The control unit allows you to remember up to 126 remote controls.

5. How does the wicket function work?

This function allows you to open only one gate leaf, which is convenient, for example, when walking or cycling.

6. Are photocells required during installation?

No, but it is better to install them for complete safety – photocells stop the gate when an obstacle appears in its path.

7. What is the range of the remote controls?

The remote control range is up to 150 meters in open space.

8. Can I control the gate from my phone?

Yes, the control unit has a WiFi and Bluetooth module, so you can operate the gate via a mobile app for Android and iOS.
