Double-leaf gate operator Nöckel De250Wifi 2X2.5M 400Kg Wi-Fi 2Xpilot

Double-leaf Gate Drive Set 2x2.5m 400kg Wi-FI Bluetooth Remote Controls NÖCKEL DE250

Maximum length of one leaf 2.5m, weight 200 kg. The gate can be up to 5 meters long and weigh 400 kg in total.

NÖCKEL DE250 is more than just a drive - it's your personal entrance guard. Designed in accordance with the "For Your Safety" philosophy, it combines uncompromising mechanical strength with state-of-the-art Smart Home electronics.

This set is a choice for people who, instead of looking for compromises, choose a Polish brand, reliability and prestigious quality of workmanship.

▪ SAFETY: Advanced anti-collision systems ▪ INTELLIGENCE: Full control via WiFi (XHouse IoT) ▪ DURABILITY: Full resistance to extreme weather conditions

■ Set contents:

• 2 × electromechanical actuators KM-C01 with mounting elements

• Control unit with Wi-Fi and Bluetooth (hermetic housing + mounting plugs)

• 2 × 4-channel remote control

• Mounting brackets for gate posts and wings

• 2 × keys for emergency opening

• Set of mounting anchors and screws

• Instructions in Polish

■ Actuators – durability and power

• Aluminum housing – resistant to weather conditions

• Brass alloy gears – durable and resistant to damage

• Universal multi-position handles – easy installation even on narrow posts (post width from 10 cm).

• Auto-lock after stopping – no need for additional locks

• Overload switch – when reaching the stop, the control unit cuts off the power.

• Emergency unlocking – possibility of manual opening of the gate in the event of a power failure

► Technical data of the actuators:

• Power supply: 24 V DC

• Power: 40 W

• Max. leaf length: 2.5 m

• Max. leaf weight: 200 kg

• Max. Opening angle: 110°

• Arm extension speed: 16 mm/s

• Rotation speed: 250 RPM

• Piston extension: 300 mm

• Protection class: IP55

■ Control unit with WiFi and Bluetooth

• Display LED – intuitive programming and diagnostics.

• Phone control (Android/iOS) – The XHouse IoT application allows you to operate swing and sliding gate drives, lighting, and other home modules.

• Supports up to 126 remote controls.

• Soft Start / Soft Stop – smooth start-up and braking.

• Wicket function – opening one wing.

• Automatic closing – programmable closing time.

• Operation of overlapping gates – delay of one wing relative to the other.

• Inputs for a video intercom and the ability to connect a wired wall switch.

• Option of emergency power supply: battery 12/24 V.

■ Technical data of the control unit:

• Power supply: 230 V AC ±15%

• Actuator voltage: 24 V DC

• Remote control frequency: 433.92 MHz

• Remote control range: up to 150 m

• Protection class: IP55

• Operating temperature: −25°C ~ +65°C

• Protections: amperometric, thermal, overload

■ Remote Controls

►2 × 4-Channel Remote Control – with a dynamically changing code (433.92 MHz), each remote control has a unique identity code, enabling convenient control of home automation.

• 433 MHz frequency – a stable, interference-resistant radio signal guarantees instant and reliable operation even in densely built-up areas.

• Four independent channels – one remote control can operate up to four different devices: gate drives, garage entry, or gate.

• Connecting ring – a practical eyelet allows for quick connection to a lanyard or snap hook.

• Can be attached to keys – the compact housing fits on any keychain, so you always have the remote control with you.

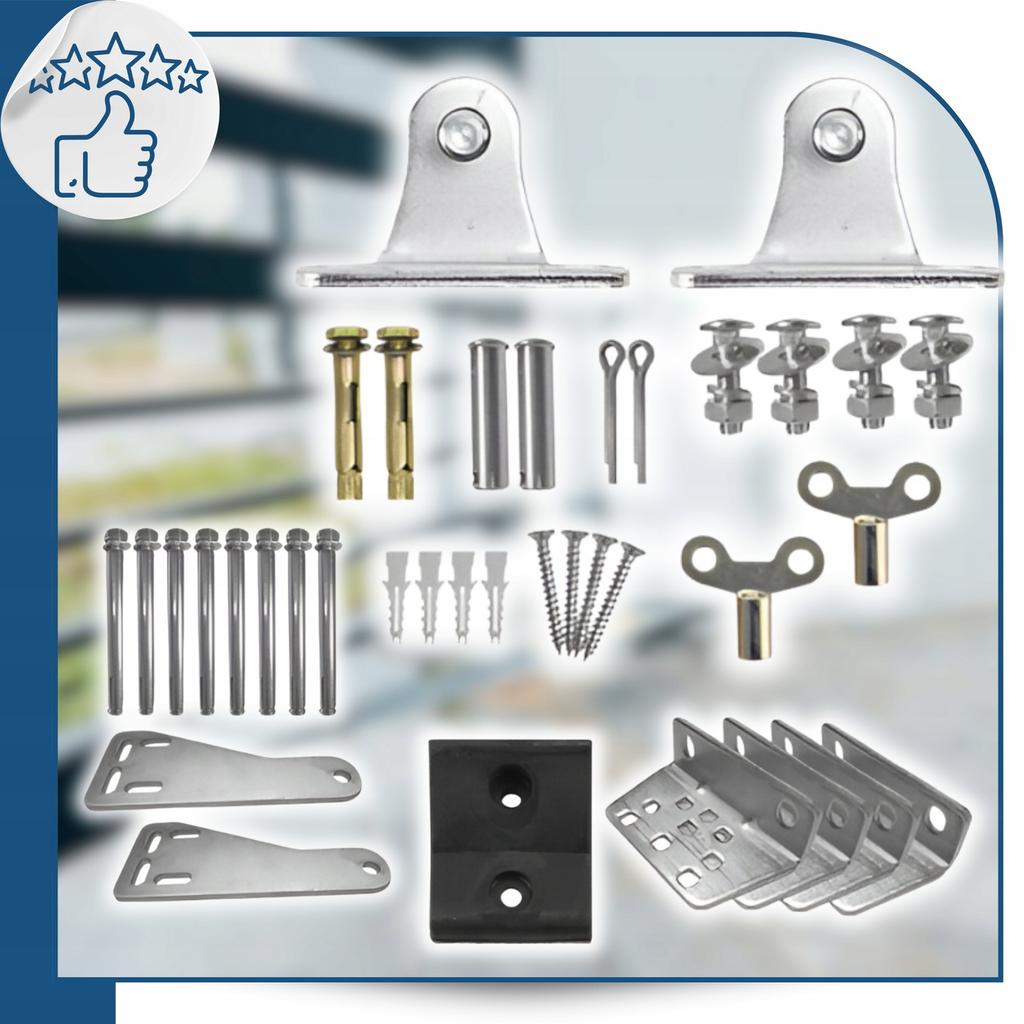

■ Mounting and security elements

► The elements included in the set ensure easy installation and safe and reliable operation of the gate drive.

• Mounting anchors – a set of anchors and screws for solid mounting of the brackets

• 2 × Unlocking keys – enable manual opening of the gate in in the event of a power failure

• Mounting brackets for actuators – multi-position, galvanized, protected against corrosion

• Limit – mounted to the ground, stops the gate in the closed position

? FAQ – Frequently Asked Questions

1. Can I install the DE250 kit myself?

Yes, the kit has been designed for easy installation. You'll find a detailed, step-by-step description in the manual.

2. Does the drive work in the event of a power outage?

Yes, the set comes with emergency unlocking keys. Additionally, the control unit allows you to connect a battery that will ensure operation in the event of a power outage.

3. Can the gate be opened from your phone?

Yes, thanks to the Wi-Fi and Bluetooth module, you can control it using a phone app (Android / iOS).

4. How many remote controls can I program for the set?

The control unit allows you to remember up to 126 remote controls.

5. How does the wicket function work?

The function allows you to open only one gate leaf, which is convenient, for example, when walking or cycling.

6. Are photocells mandatory during installation?

No, but it's better to install them for complete safety – photocells stop the gate when an obstacle appears in its path.

7. What is the range of the remote controls?

The remote control range is up to 150 meters in open space.

8. Can I control the gate from my phone?

Yes, the control unit has a WiFi and Bluetooth module, so you can operate the gate via a mobile app for Android and iOS.
