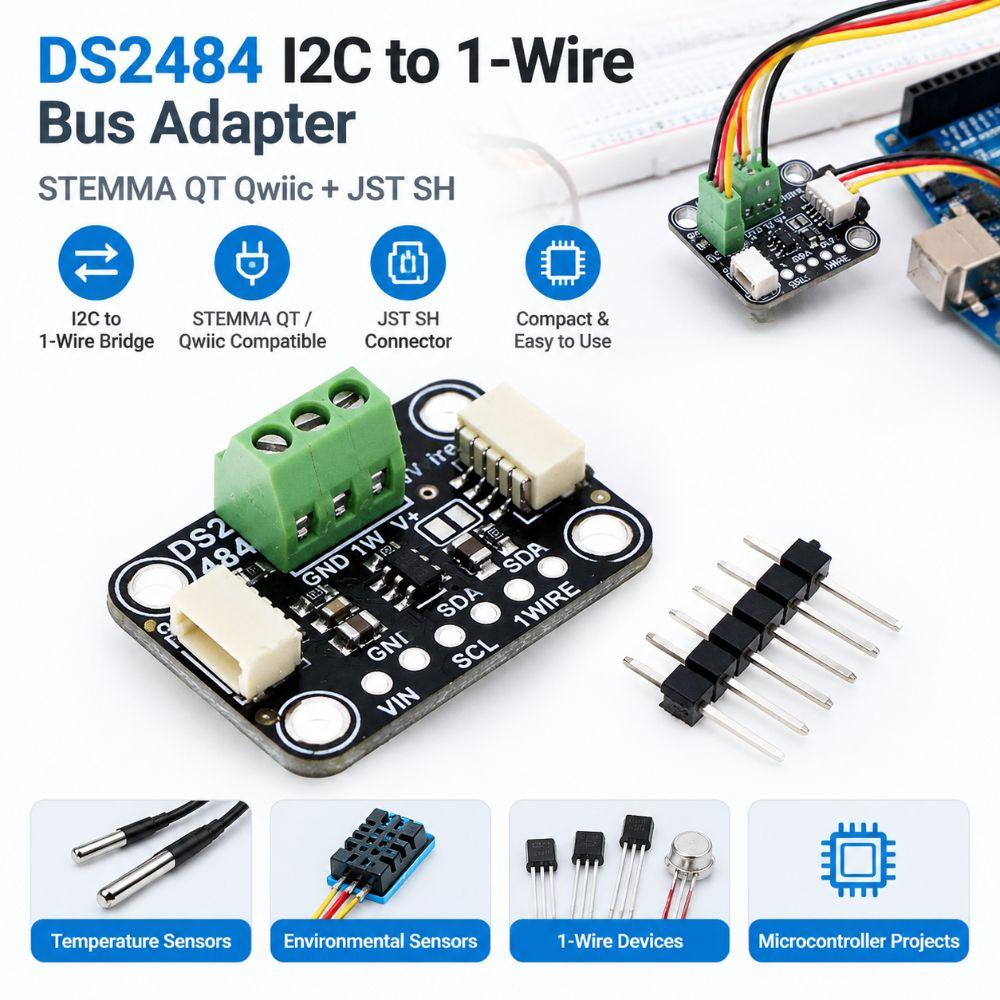

Qwiic + JST SH DS2484 Module I2C to 1-Wire Bridge I2C to 1-Wire Adapter Microcontroller Projects

Label:Yes Operating Temperature: -40°C ~ +85°C Host side: STEMMA QT / Qwiic Supply Voltage: 2.5V ~ 5.5V Host Interface: I2C (configurable address) Interface Configuration: Slave Interface: Single-channel 1-Wire bus (JST SH connector) Slave side: JST SH 4-pin (1-Wire + VCC/GND) Module Dimensions: 25.4mm(1.00in) x 17.8mm(0.70in) x 10mm(0.39in)

Features: Primary Applications Connecting 1-Wire temperature sensors (such as the DS18B20) Interfacing with iButton electronic tags Expanding 1-Wire network devices Integrating industrial sensor networks

Product Features Plug-and-Play: Features a STEMMA QT/Qwiic connector no soldering required Dual-Interface Design: Qwiic connector for the host side, JST SH cable connection for the slave side Robust Driving Capability: Supports long-distance 1-Wire cabling Open-Source Ecosystem: Drivers available for Arduino and CircuitPython

Package Included: 1 x DS2484 Module
