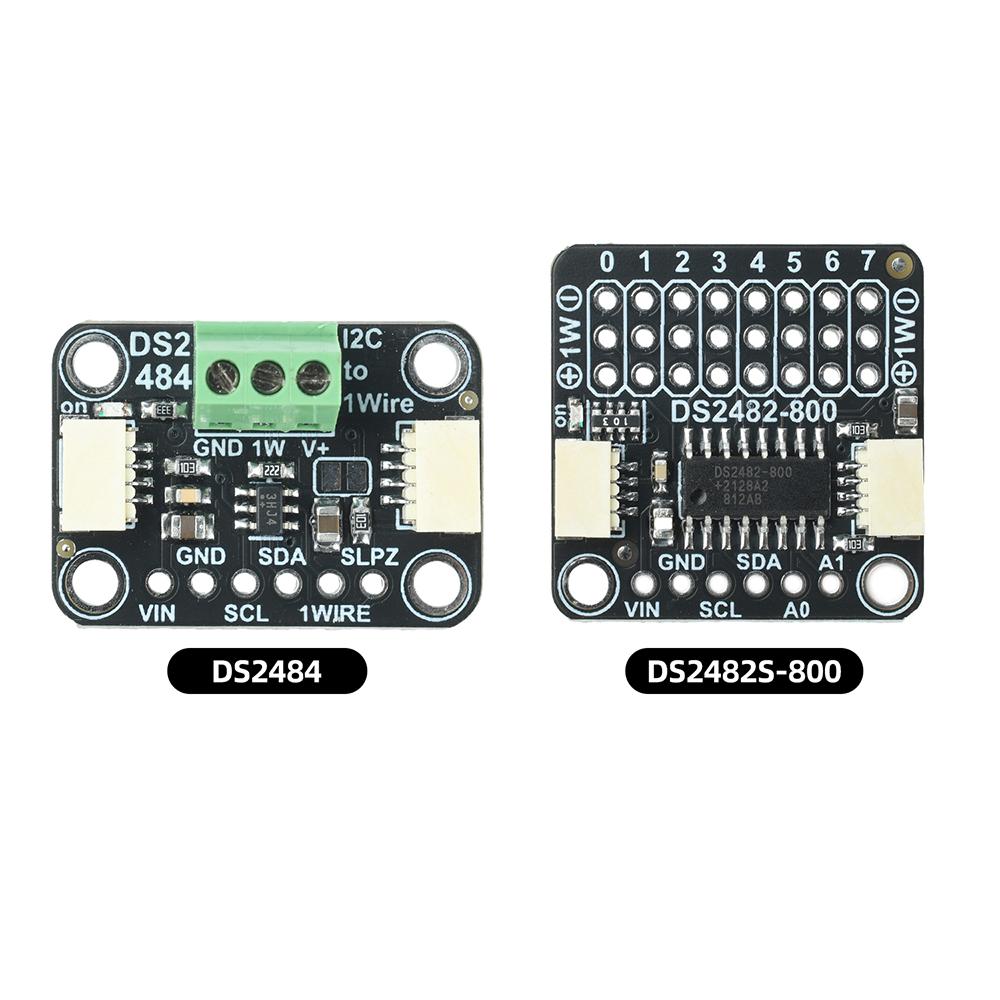

DS2482S 800 8 Channel I2C To 1 Wire Bus Adapter STEMMA QT Qwiic Interface Industrial Long Distance Wiring Sensor Driver Module

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 2.5V-5.5V Type : Module Origin : Mainland China Condition : New Operating Temperature : -40-85C Feature 1 : I2C To 1-Wire Adapter 1-Wire Bus Driver Feature 2 : I2C 1-Wire Bridge Line Driver Splitter Feature 3 : DS2484 DS2482S-800 Adapter Feature 4 : 8 Channel 1-Wire Adapter Feature 5 : STEMMA QT Interface Feature 6 : Qwiic Interface Feature 7 : JST SH 4Pin Interface Feature 8 : Configurable I2C Address Feature 9 : DS18B20 Sensor Adapter Feature 10 : 2.5V-5.5V Wide Voltage

Product Features: 1. Supports I2C to 1-Wire protocol bridging, with built-in drivers and terminal resistors adapted for long-distance wiring 2. Compatible with STEMMA QT/Qwiic interfaces, plug and unplug wiring without soldering for quick setup 3. Wide voltage adaptation for 2.5V~5.5V, stable industrial operation at a wide temperature range of -40 ℃ to 85 ℃ 4. Supports standard and over drive dual communication rates, with customizable I2C addresses to avoid bus conflicts 5. Suitable for various devices, open-source drivers adapted to various sensing scenarios Style 1: DS2484 I2C to 1-Wire bus adapter compatible with STEMMA QT/Qwiic+JST SH interfaces

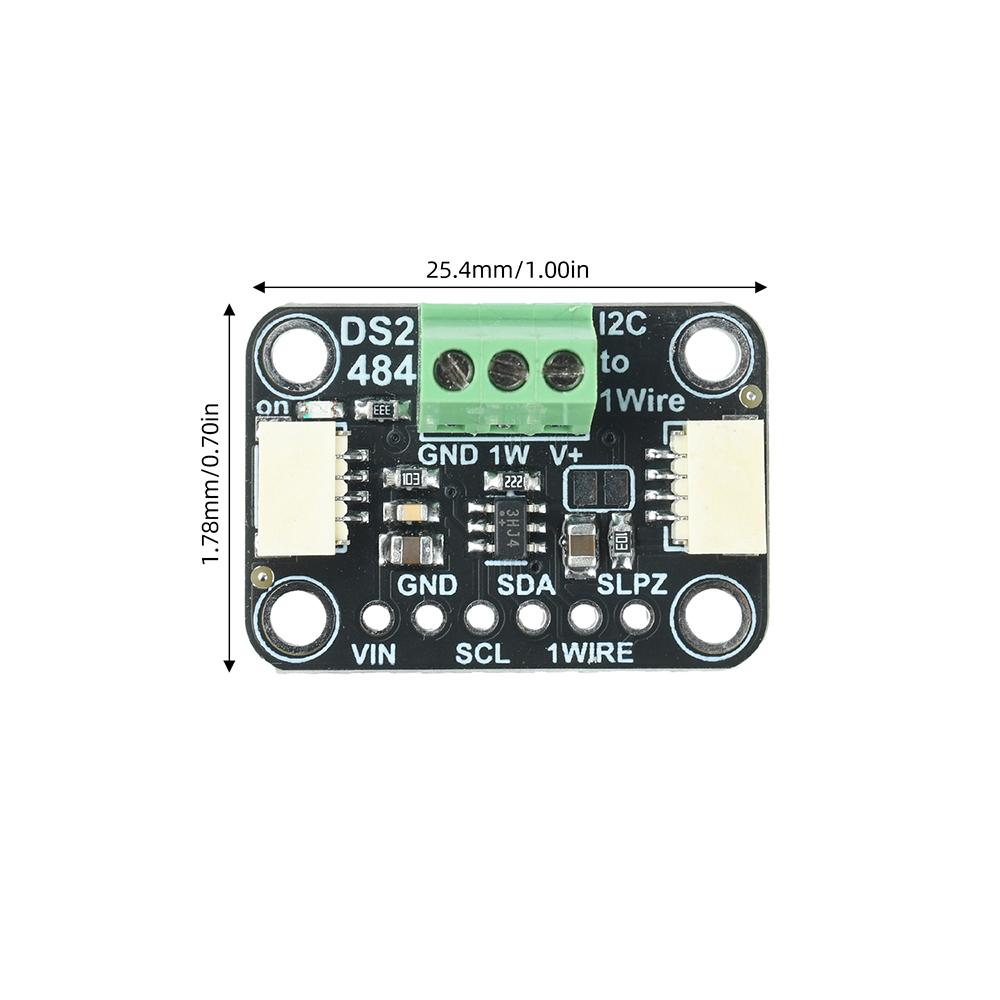

Basic Parameters: Host interface: I2C (address configurable) Slave interface: Single 1-Wire bus (JST SH interface) Supply voltage: 2.5V~5.5V Working temperature: -40 ° C~+85 ° C Interface configuration: Host end: STEMMA QT/Qwiic Slave end: JST SH 4-pin (1-Wire+VCC/GND) Module size: 25.4mmx17.8mm x10mm

core functionality 1-Wire ® Single bus to I2C bridging Built in 1-Wire line driver and terminal resistor Supports two speed modes: standard and over drive Dual interface host end Qwiic, slave end JST SH cable connection Support long-distance 1-Wire wiring

main purpose Connect 1-Wire temperature sensors such as DS18B20 Accessing iButton electronic tags Expand 1-Wire network devices Industrial Sensor Network Integration Open source ecosystem provides example drivers Style 2: DS2482S-800 8-channel I2C to 1-Wire bus adapter compatible with STEMMA QT/Qwiic interface

Basic Parameters Host interface: I2C (address configurable) Slave interface: Single 1-Wire bus Supply voltage: 3.0V~5.5V Working temperature: -40 ° C~+85 ° C Interface: STEMMA QT/Qwiic+1-Wire interface Module size: 25.6mmx25.3mmx5mm

Core functions: 1-Wire ® Single bus to I2C bridging Built in 1-Wire line driver and terminal resistor Supports two speed modes: standard and over drive STEMMA QT/Qwiic interface, plug and play Strong driving capability, supporting long-distance 1-Wire wiring Automatically execute 1-Wire reset, addressing, read/write timing

main purpose Connect 1-Wire temperature sensors such as DS18B20 Accessing iButton electronic tags Expand 1-Wire network devices (humidity, identification sensors, etc.) Industrial Sensor Network Open source ecosystem provides example drivers

Packing List Module x1 Needle X1 label:yes
