STSPIN220 Stepper Motor Drive Module Potentiometer Current Limit Low Standby Current 1.8V‑10V Power Supply For Robot PTZ

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 1.8V-10V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : STSPIN220 Stepper Motor Driver Module Feature 2 : Micro Stepper Motor Driver Feature 3 : Stepper Motor Breakout Board Feature 4 : Bipolar Stepper Driver Feature 5 : 1.3A Current Adjustable Feature 6 : STEP DIR Control Feature 7 : Screw Terminal Module Feature 8 : Over Temperature Short Circuit Protection Feature 9 : Potentiometer Current Limit Feature 10 : Low Standby Current

Product Features: 1. Using STSPIN220 driver chip, the output current can be adjusted, up to a maximum of 1.3A 2. Supports up to 1/256 micro step subdivision, with STEP/DIR pins to control motor operation 3. Equipped with a potentiometer to adjust the upper limit of current and multiple built-in protection circuits to enhance safety during use 4. Screw terminal wiring design, paired with status indicator lights, intuitive and convenient wiring debugging 5. Low standby power consumption, suitable for driving scenarios such as gimbal, robot, and small 3D printing

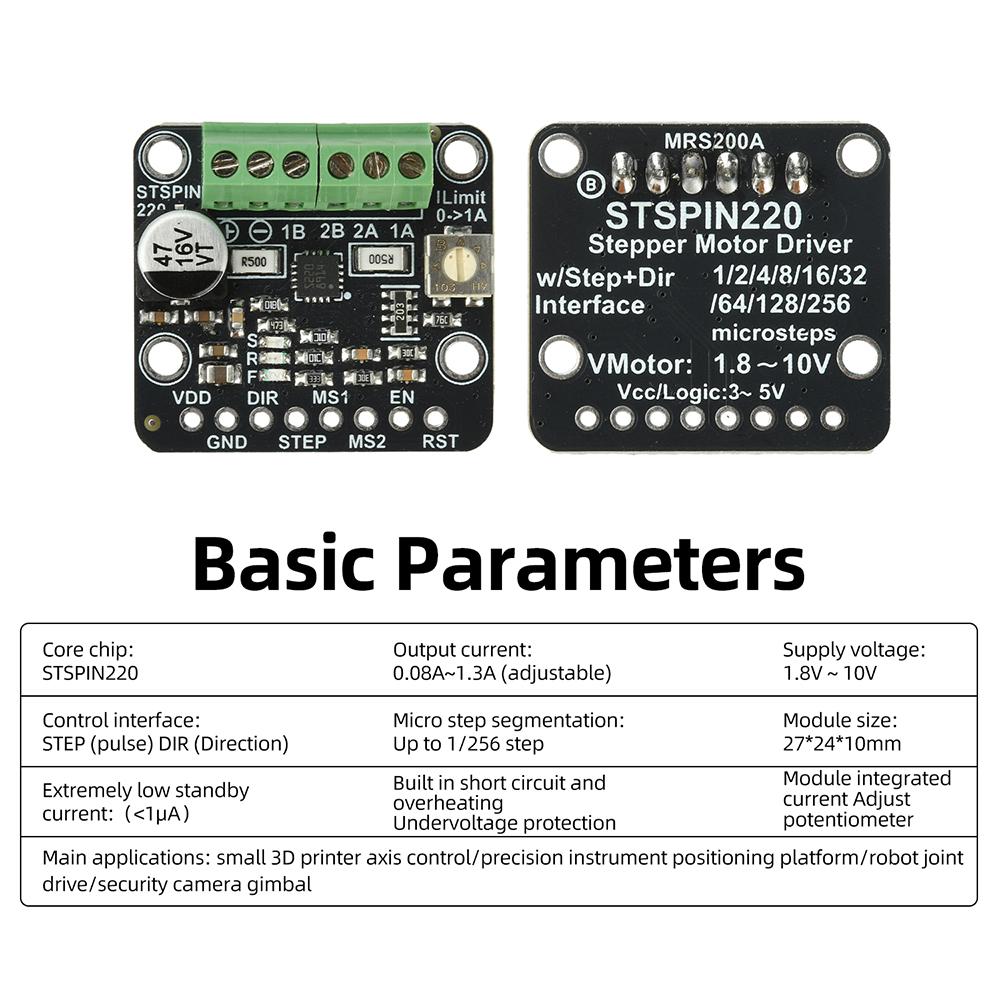

Basic Parameters: Core chip: STSPIN220 Output current: 0.08A~1.3A (adjustable) Supply voltage: 1.8V~10V Control interface: STEP (pulse)/DIR (direction) Microstep segmentation: up to 1/256 step Module size: 27 * 24 * 10mm Extremely low standby current: (<1 μ A) Built in short circuit, over temperature, and under voltage protection Module integrated current regulating potentiometer

Core Functionality: STSPIN220 Microstep Driver with Converter and Overcurrent Protection The VDD/logic voltage ranges from 3V to 5V and can be used with any device of ESP32 or other single board computers Wire terminal screw block connection, convenient for connecting VMotor power supply and 4-wire bipolar stepper motor, with 26-20AWG slot, 2.54mm/0.1 "spacing Only use two pins to control the stepper: DIRection and STEP The default is 1/16 micro step mode, which can be changed by setting the DIR/STEP/MS1/MS2 pins and resetting them The red and green LEDs on the DIR signal allow you to understand forward or backward movement The yellow LED on STEP lets you know that the motor driver is moving Reset and enable low-power/disable control line Potentiometer setting current limit, up to~1.3A 47uF 16V electrolytic capacitor on motor power supply

Main purpose: Axis control for small 3D printers Precision instrument positioning platform Robot joint drive Security camera gimbal

Packing List: STSPIN220 module x1 label:yes
