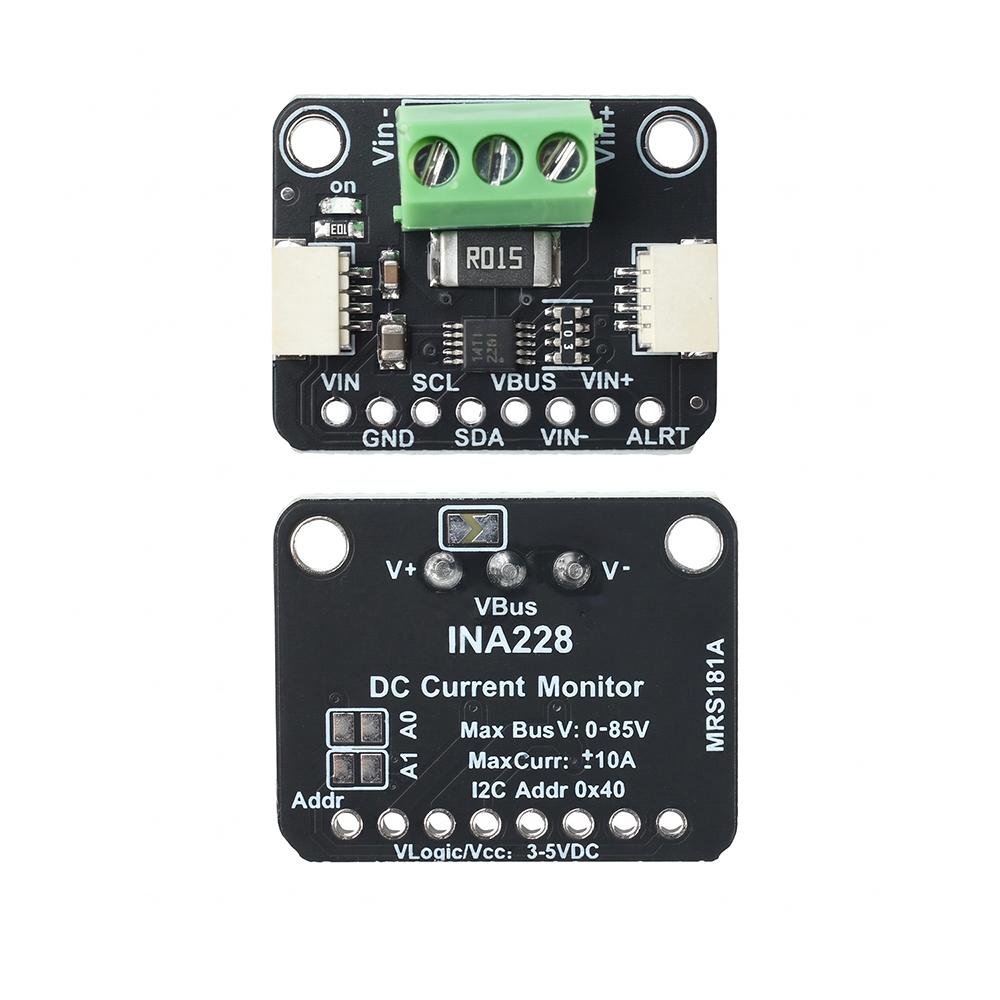

INA228 INA237 INA238 Power Monitoring Module 16Bit ADC 85V Wide Voltage 20A Current Detector I2C Configurable For Monitoring

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 2.7-5.5V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : Current Voltage Power Monitor Module Feature 2 : Energy Consumption Monitor Feature 3 : 20Bit ADC High Precision Monitor Feature 4 : 16Bit ADC Power Detection Module Feature 5 : 85V Wide Voltage Monitoring Feature 6 : 20A High Current Monitor Feature 7 : STEMMA QT Qwiic Interface Module Feature 8 : I2C Address Configurable Monitor Feature 9 : Automatic Energy Accumulation Module Feature 10 : Solar System Energy Monitor

Product features; 1. Equipped with STEMMA QT/Qwiic interface, welding free plug and play, supporting high side electrical parameter measurement 2. Multiple styles to choose from, covering multiple types of DC power supply scenarios 3. Built in high-precision ADC chip with automatic accumulation calculation function for electrical energy and charge 4. Wide voltage power supply, I2C communication address can be freely configured and modified 5. Equipped with complete open-source drivers, suitable for photovoltaic, industrial control, and power consumption monitoring scenarios Product Parameters: Style 1: INA228 high-precision current/power monitoring module 20 bit ADC current/voltage monitor compatible with STEMMA QT/Qwiic interface

Performance characteristics: 1. Qwiic plug and play, solder free, 20 bit ADC high-precision cumulative power 2. Compatible with 0-85V wide voltage bus, accurate detection of ± 20A high current 3. The current gain error is only ± 0.25%, and the power consumption monitoring data is reliable 4.2.7-5.5V wide power supply, I2C address can be d and configured 5. Complete open-source driver matching, suitable for photovoltaic industrial control power monitoring

Basic Parameters: Current measurement: ± 20A (maximum, depending on shunt resistance) Voltage measurement: 0V~85V ADC resolution: 20 bits Current accuracy: ± 0.25% (gain error, maximum value) Supply voltage: 2.7V~5.5V Interface: STEMMA QT/Qwiic (I2C address configurable) Module size: 25.4mmx20.3mmx10mm

Style 2: INA237 85V 10A 16 Bit current/power monitoring module compatible with STEMMA QT/Qwiic interface

Performance characteristics: Qwiic solder free plug and play, high side synchronous voltage, current, and power measurement Equipped with a 16 bit ADC, it can automatically accumulate electrical energy and charge data Compatible with high voltage bus from 0 to 85V, with ± 20A wide range current detection Current gain error as low as ± 0.5%, stable power supply of 2.7-5.5V I2C address can be modified, compatible with open-source drivers for multi scenario monitoring

Basic Parameters Current measurement: ± 20A (maximum, depending on shunt resistance) Voltage measurement: 0V~85V ADC resolution: 16 bits Current accuracy: ± 0.5% (gain error, maximum value) Supply voltage: 2.7V~5.5V Interface: STEMMA QT/Qwiic (I2C address configurable) Module size: 25.4mmx20.3mmx10mm

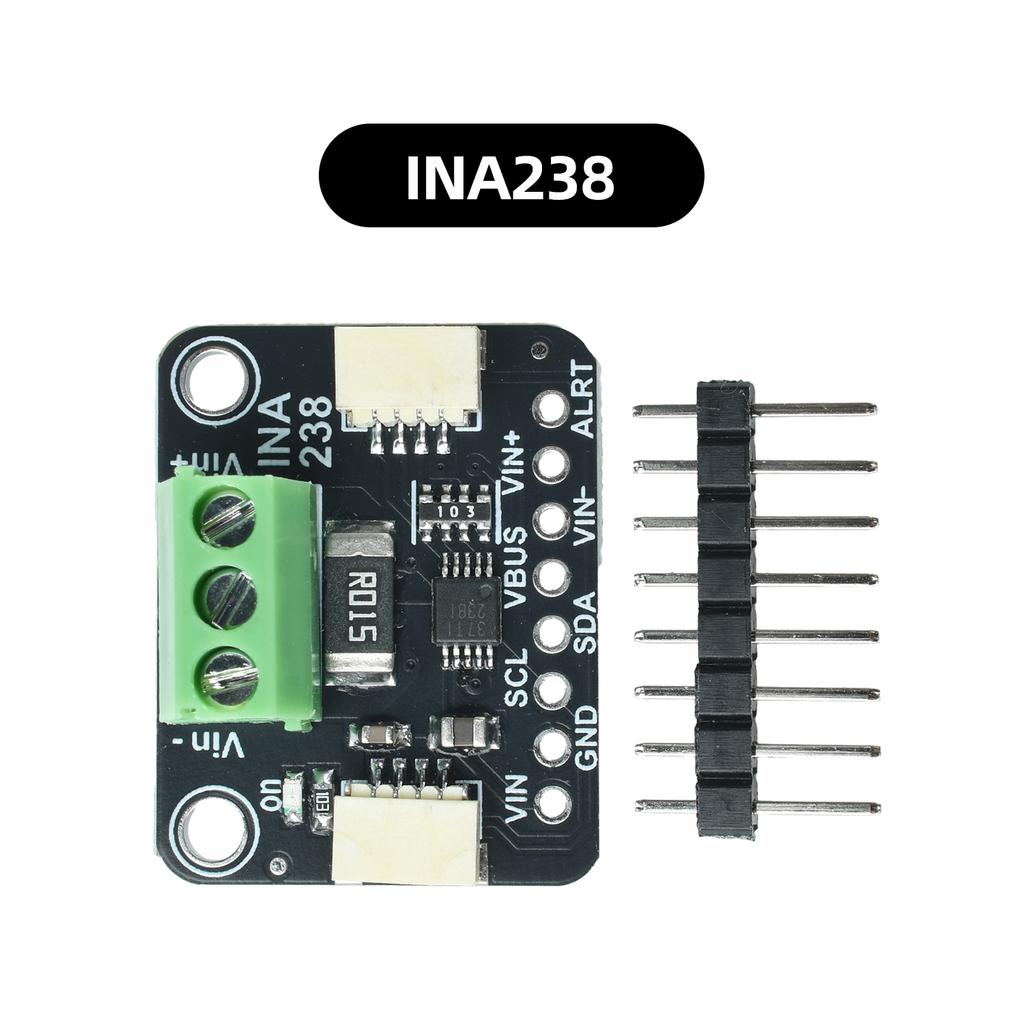

Style 3: INA238 high-precision current/power monitoring module DC current voltage power monitor compatible with STEMMA QT/Qwiic interface

Performance characteristics: 1. Qwiic interface solder free plug and play, easy to complete high side electrical parameter detection 2. 20 bit Δ - ∑ ultra-high precision ADC, supporting electric energy and charge accumulation calculation 3. Compatible with 0-85V high-voltage bus, with a maximum measurable ± 20A circuit current 4. The current gain error is only ± 0.25%, and the stable power supply is between 2.7-5.5V 5. The I2C address can be d, and the open-source driver is compatible with various energy consumption monitoring Basic Parameters: Current measurement: ± 20A (maximum, depending on shunt resistance) Voltage measurement: 0V~85V ADC resolution: 20 bits Current accuracy: ± 0.25% (gain error, maximum value) Supply voltage: 2.7V~5.5V Interface: STEMMA QT/Qwiic (I2C address configurable) Module size: 25.4mmx20.3mmx10mm

Main uses: Battery Management System (BMS) Server/Data Center Power Monitoring Energy metering for solar energy systems Power consumption analysis of industrial equipment

Product List: 1X module 1X needle arrangement label:yes
