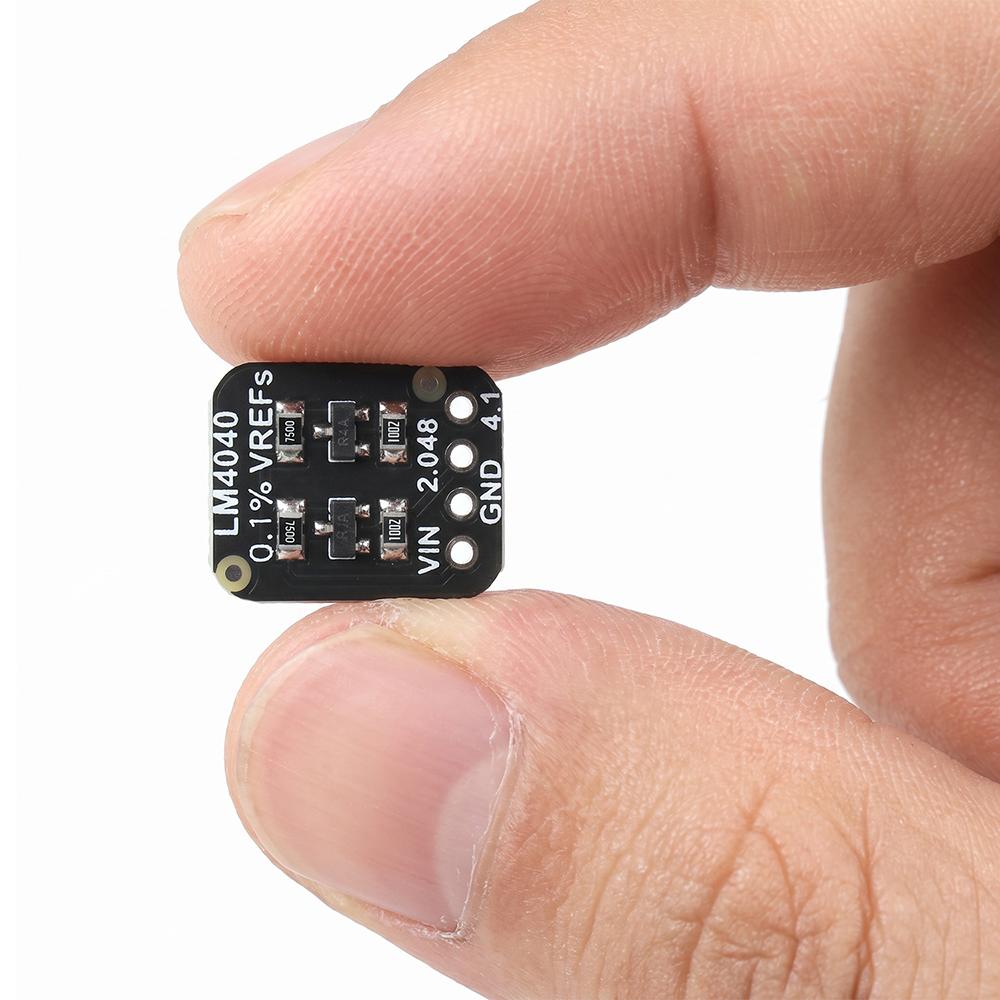

DC 3V To 12V LM4040 Reference Module 2.048V 4.096V Benchmark For Test Equipment Calibration Electronic Diy Project

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 5V-12V Type : Module Operating Temperature : 0-50C Origin : Mainland China Condition : New Feature 1 : LM4040 Reference Board Feature 2 : ADC Calibration Module Feature 3 : 0.1% Accuracy Voltage Source Feature 4 : 2.048V 4.096V Dual Reference Feature 5 : DC 5V-12V Reference Board Feature 6 : Shunt Voltage Reference Feature 7 : Multimeter Calibration Feature 8 : MCU Precision Measurement

Product Features 1. Dual parallel high-precision benchmark, equipped with 750 Ω bias resistor, stable output without drift 2. Dual reference voltage output: 2.048V compatible with 3.3V system, 4.096V compatible with 5V system 3. The whole machine has an accuracy of up to 0.1%, meeting the precision measurement and calibration requirements of ADC, multimeter, and microcontroller 4. Flexible power supply: Conventional 5V-12V power supply; Drive with 3V at 2.048V reference only 5. Small and easy to wire, versatile for electronic DIY, instrument debugging, and equipment calibration

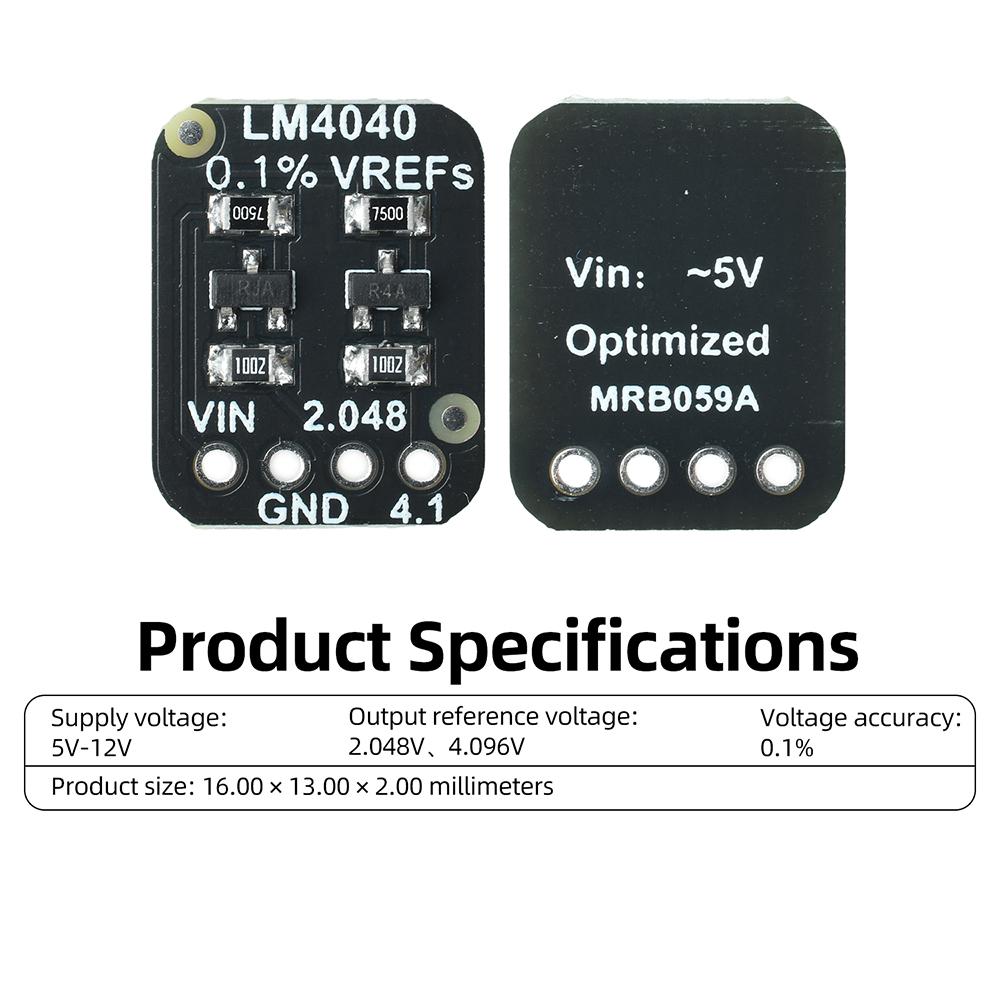

Product Specifications Supply voltage: 5V-12V Output reference voltage: 2.048V, 4.096V Voltage accuracy: 0.1% Product size: 16.00 × 13.00 × 2.00 millimeters

Product List: 1X module

Precautions This product is a voltage reference source, not a regulated power supply, and cannot turn off the output. It can only be used for measurement calibration. Due to the influence of the monitor and lighting, the actual color may differ slightly from the picture. We apologize for any inconvenience caused. There is a 1-2 centimeter size error in manual measurement, which is a normal situation. label:yes
