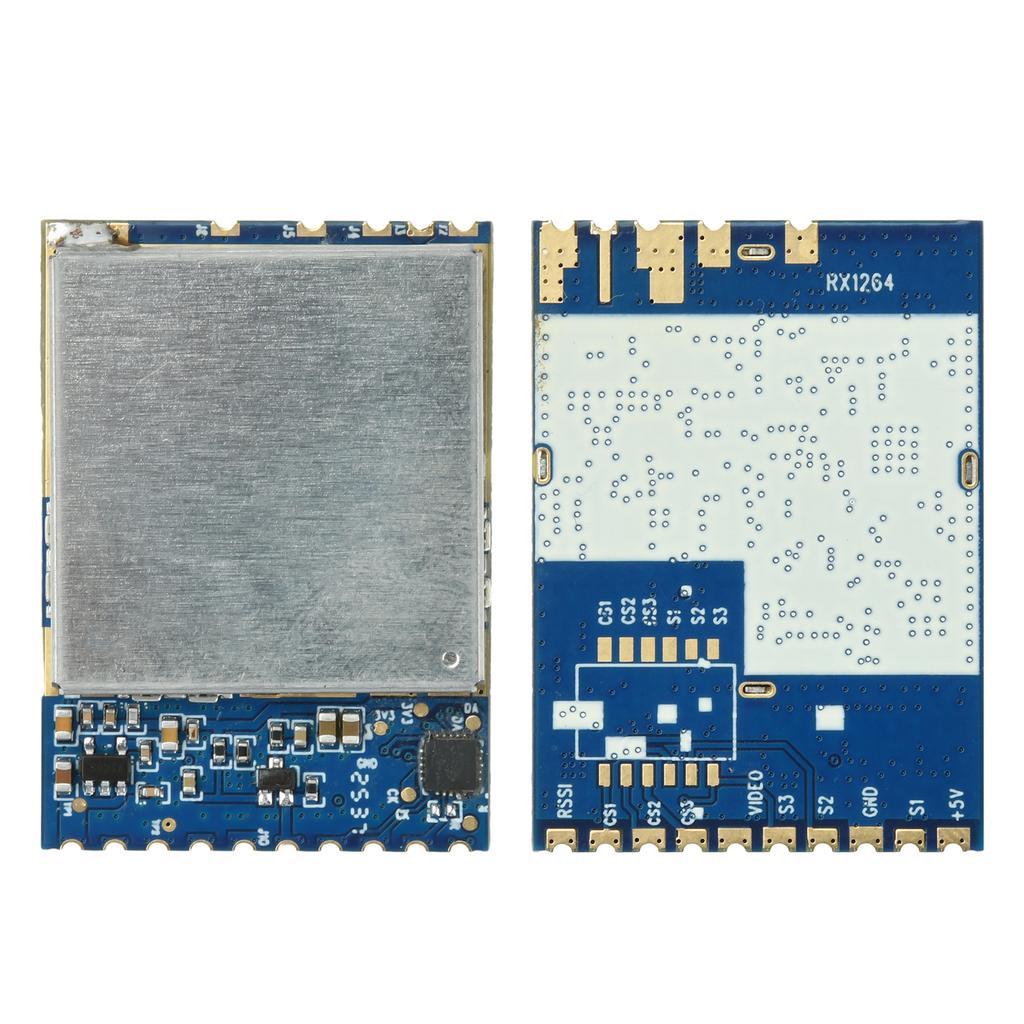

1.2G/1.3G FM Video Receiver Module RX1264 Wireless FPV Mapping Module Analog Wireless Audio/Video Transmission Receiver Module

Electrified : No High-concerned chemical : none Compatible Drone Model : 1.2G/1.3G Size : 3.7*2.63*0.4cm Package : Yes Weight : 11g Model Number : 1.2G/1.3G FM Video Receiver Module Compatible Drone Brand : EACHINE Brand Name : occkic Origin : Mainland China

Features: 1. Small size, low power consumption, high sensitivity: compact module design, low power consumption and high reception sensitivity to ensure stable reception of audio and video signals in various environments. 2. SMD package, space-saving: the use of SMD package technology, occupying a very small space, easy to integrate into various types of equipment to enhance the design flexibility 3. Integrated VCO and PLL chip: Built-in high-performance VCO (voltage-controlled oscillator) and PLL (phase-locked loop), providing more stable frequency control and more efficient signal processing capability. 4. Wideband FM video demodulation: supports wideband FM video demodulation to ensure clear and smooth images and meet the demand for high-quality video transmission. 5. Simple connection and ready to use: just connect the power supply, audio cable, video cable and antenna, you can easily receive sound and image signals, convenient and efficient operation.

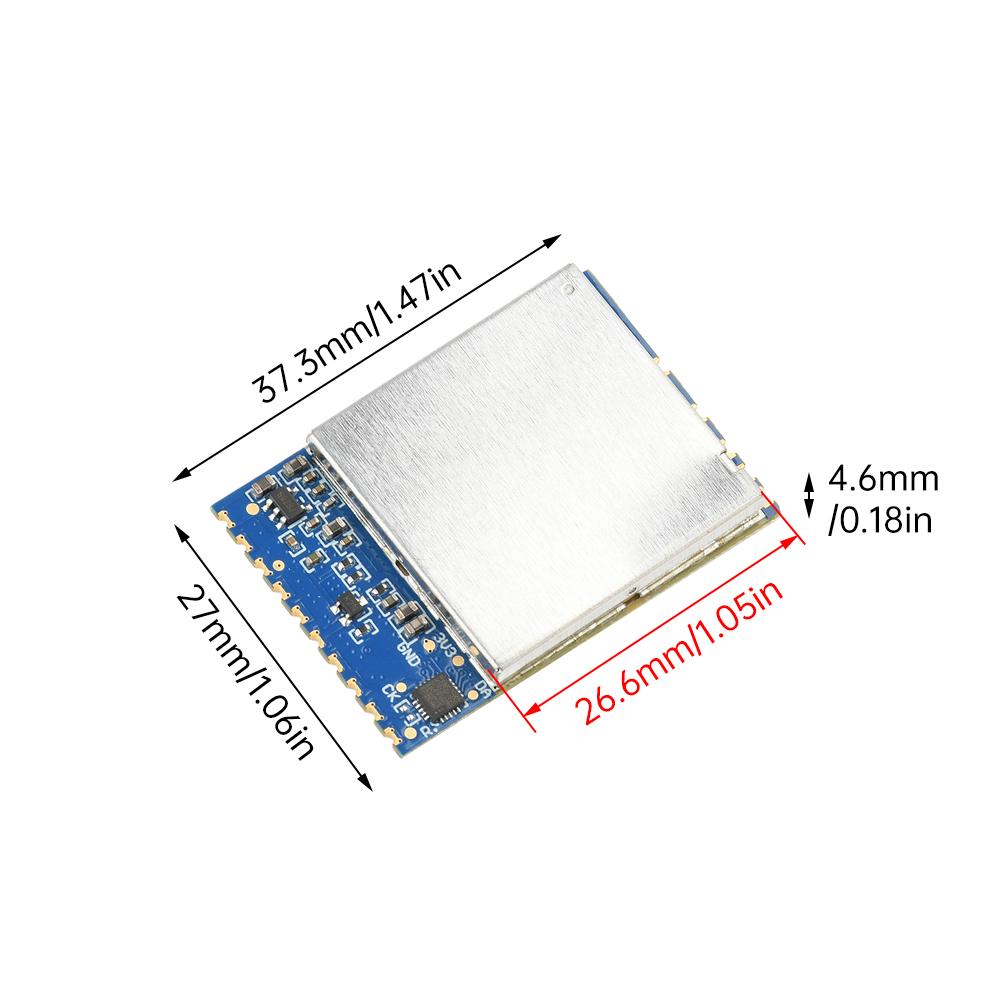

Parameter: Supply voltage: DC 5V Current consumption: 380±30mA Radio Frequency RF: Receiving frequency range: 1080~2200MHz Input VSWR: 2:1 Demodulation mode: FM/PLL IF frequency IF: 480MHz Antenna port impedance: ±200kHz Stability of local oscillator frequency: ±200kHz Local oscillation control: PLL Input local oscillation leakage: -65dBm Receiving sensitivity: -95dBm±2 Input level range: -95dBm±5dBm Video: Video output impedance: 75Ω, Typ Video Output Level: 1±0.2Vp-p, Typ Video Polarity: Negative Polarity Video Frequency Response: ±5dB, Max.50Hz Differential Gain: ±5dB, Max Differential Phase: ±5 Deg.,Max 3dB IF Bandwidth: 16.5MHz Signal-to-Noise Ratio S/N: 38dB,Min Working Environment: Operating Temperature: -10~65°C Storage Temperature：-30~85℃ Working Humidity: 85%RH Product size: 37*26.3mm

Package include: Module*1 label:yes
