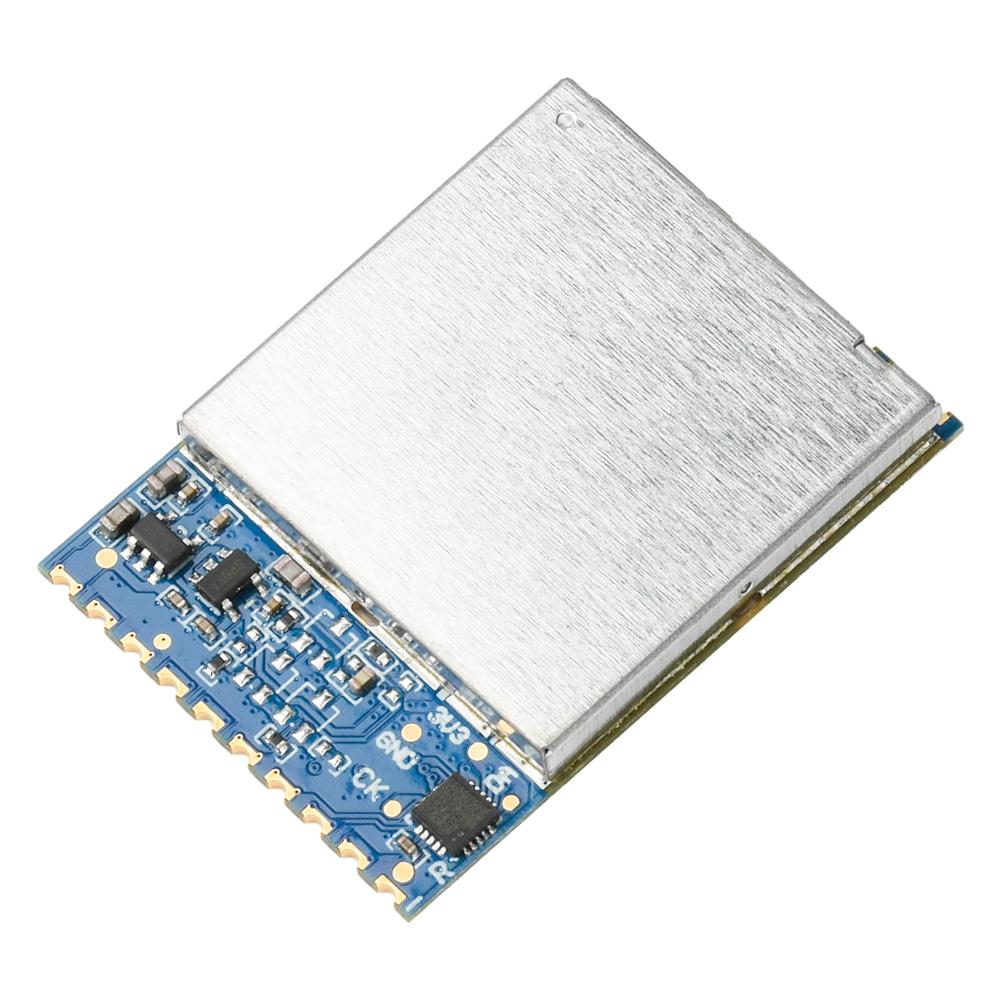

RX3364 3.3G Wireless FPV Image Transmission Module Simulates Wireless Audio and Video Transmission and Reception Module

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Electronic : No Material : Plastic Size : RF Module Type : RF Module Model Number : RF Module DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Output Voltage : RF Module Style : RF Module Certification : NONE

Features: 1. High integration design: The module adopts a high integration design, which has the advantages of small size, low power consumption, and high sensitivity. 2. Simple and easy-to-use connection method: Simply connect the antenna to easily receive sound and image signals, with easy operation. 3. Broadband reception capability: Supports a reception frequency range of 3060-3500MHz to ensure stable and reliable signals. 4. Excellent video performance: The video output impedance is 75 Ω, providing clear and stable image quality. 5. Excellent environmental adaptability: The working temperature range is -10 ° C to+65 ° C, which can adapt to the usage needs of various environmental conditions. Parameter: DC Characteristics POWER SUPPLY：5.0V Current Consumption：(380 30)mA Environmental Specification Operating Temperature：-10~+65°C Storing Temperature：-30~+85°C Operating humidity：85%RH RF: Receiving frequency range：3060-3500MHZ Voltage Standing Wave Ratio：2:1 Demodulation system：FM/PLL Intermediate frequency IF: 480MHz ANT.inputimpedance：50Ω, TyP. LO Frequency stabilization：±200kHz LO Frequency Precision：±200kHz LO Control：PLL lnput LO Leak：-65dBm Receiving Sensitivity：-95dBm±2 InputLevel Range：-95dBm~+5dBm Video Characteristics) Video Outputimpedance：75Ω, TyP. Video Output Level)：1±0.2Vp-P. TyP. Video Polarity：NEGATIVE Video Frequency Respone：±5 dB, Max.50Hz ~ 6MHz Differential Gain：±5 %, Max Differential Phase：±5 Deg, Max 3DbIFWIDEBAND：16.5MHz Signal to Noise Ratio (S/N): 38dB, Min Package Include: 1X module label:yes
