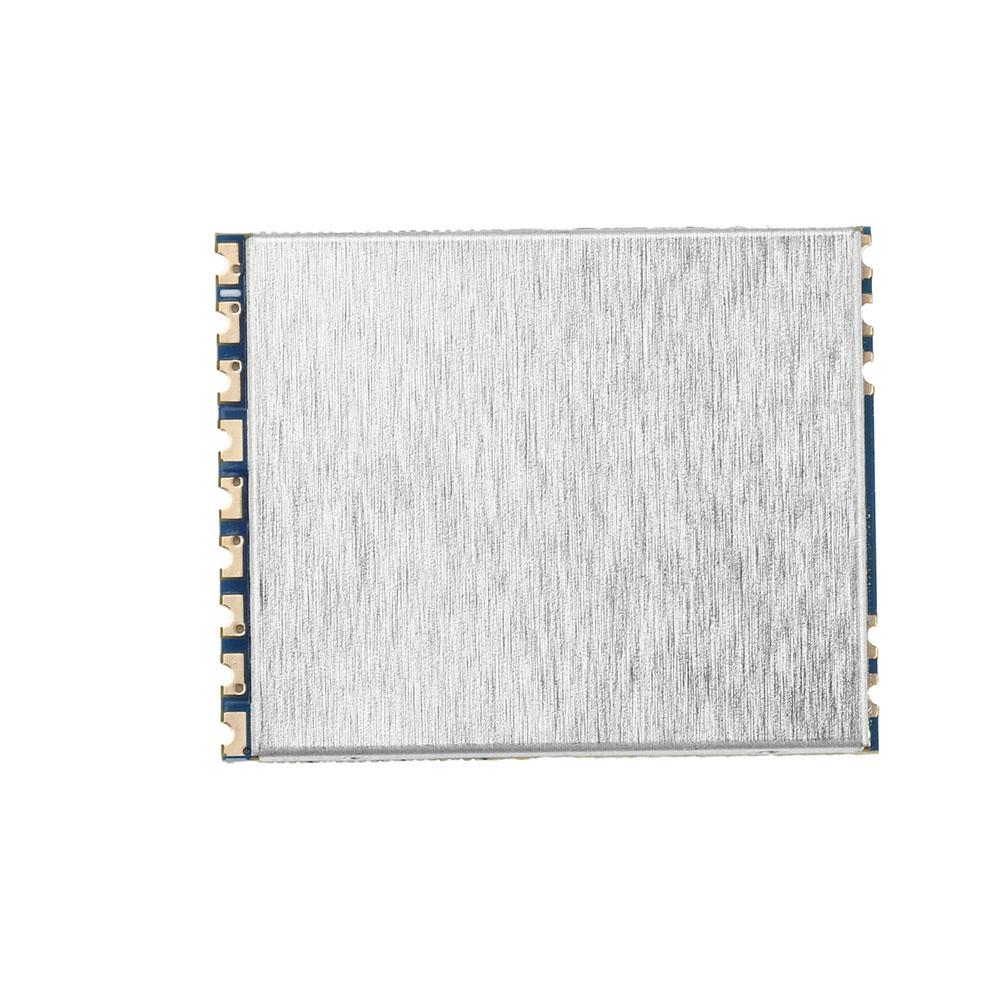

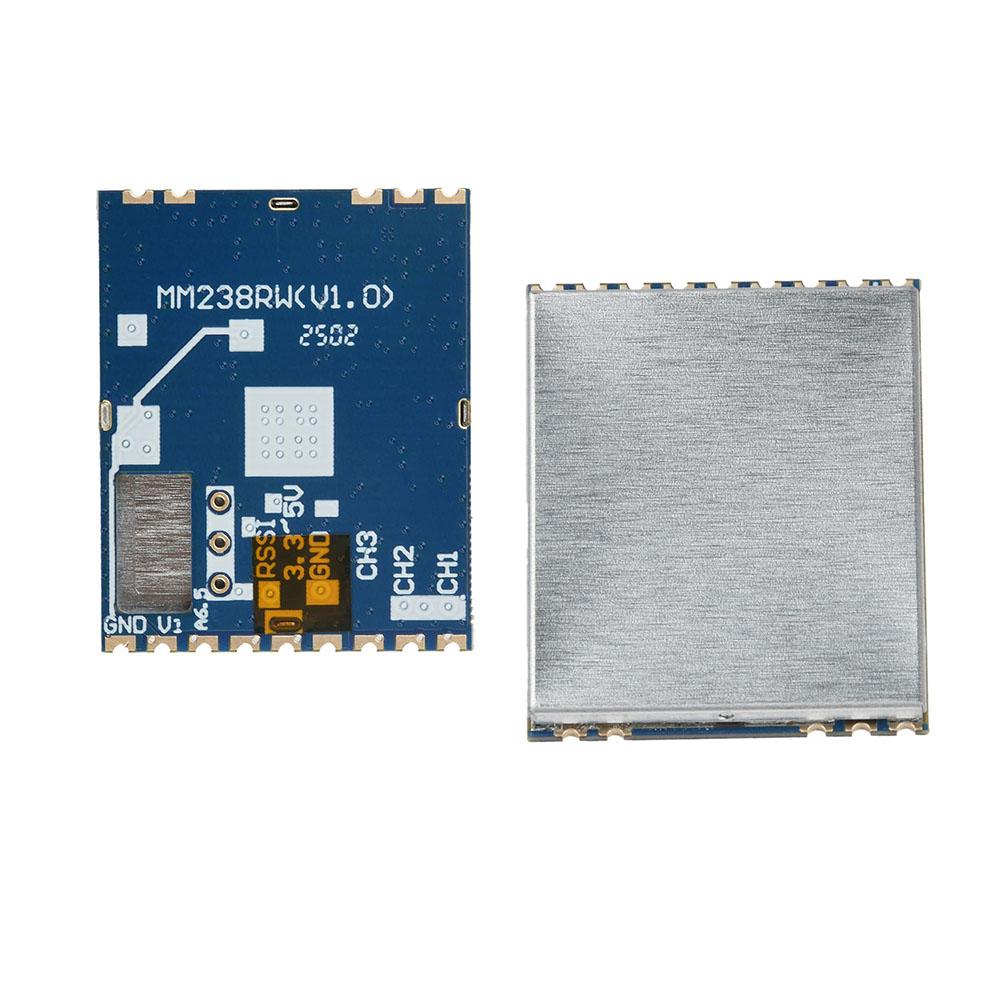

DC 3.3-5V 5.8G MM238RW FPV Receiver Wireless Video Transmission Module High Sensitivity Long Range for DJI Drones

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 3.3-5V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : -10 to +65°C Wholesale discounts : Complete variety, welcome to contact us for consultation

Features: 1. Compact size, low power consumption design: the module is lightweight, low energy consumption, suitable for embedded installation, to meet the needs of portable equipment 2.High-frequency reception range: support 4900-5945MHz frequency, covering a wide range, to ensure stable and reliable signal transmission. 3. High sensitivity performance: accurate signal capture, long transmission distance, clear and smooth picture quality without delay. 4. Strong adaptability, impedance matching 75Ω: video output impedance is 75Ω, compatible with mainstream display devices, more convenient connection. 5. Wide temperature working environment: adapt to -10 ~ +65 ° C temperature range, suitable for a variety of scenarios, such as wireless audio and video transmission, etc. Parameter: DC Characteristics Supply Voltage: 3.3-5.0V Current Consumption: 220mA Operating Environment Operating Temperature: -10~+65°C Storage Temperature: -30~+85°C Operating Humidity: 85%RH Radio Frequency Receiving Frequency Range: 4900-5945MHz Input VSWR: 2:1 Demodulation: FM/PLL IF Frequency IF: 480MHz Antenna Port Impedance: 50Ω, TyP. Local oscillator frequency stability: ±100kHz Local oscillator frequency accuracy: ±100kHz Local oscillator control: PLL Input local oscillation leakage: -55dBm Receiving sensitivity: -90dBm Input level range: -90dBm~+5dBm Video Video output impedance: 75Ω, TyP. Video output level: 1±0.2Vp-p Video polarity: negative Video frequency response: ±5 dB,Max.50Hz ~ 6MHz Differential gain: ±5 %, Max Differential phase: ±5 Deg, Max 3dB IF bandwidth: 16.5MHz S/N ratio: 38dB, Min Deg, Max 3dB IF Bandwidth: 16.5MHz Signal to Noise Ratio: 38dB, Min Product Size: 28*23*3mm

Package include: Module*1 label:yes
