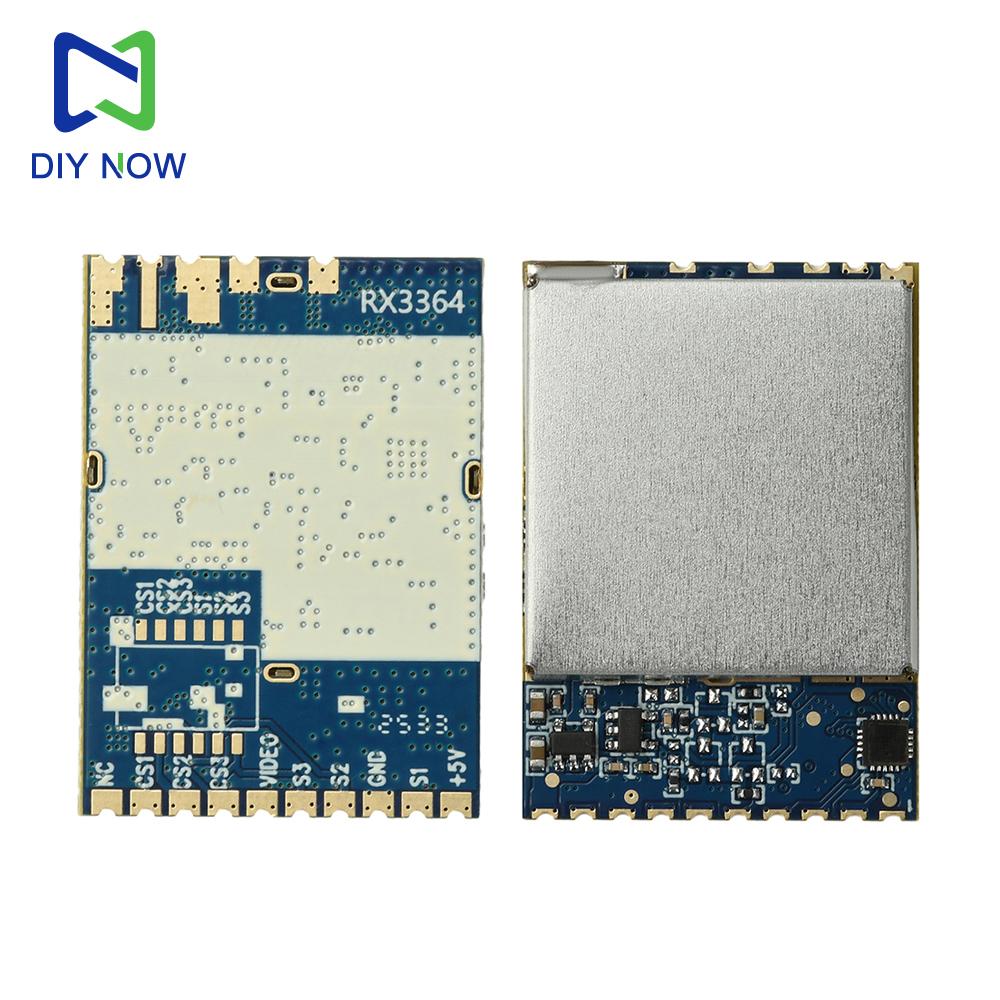

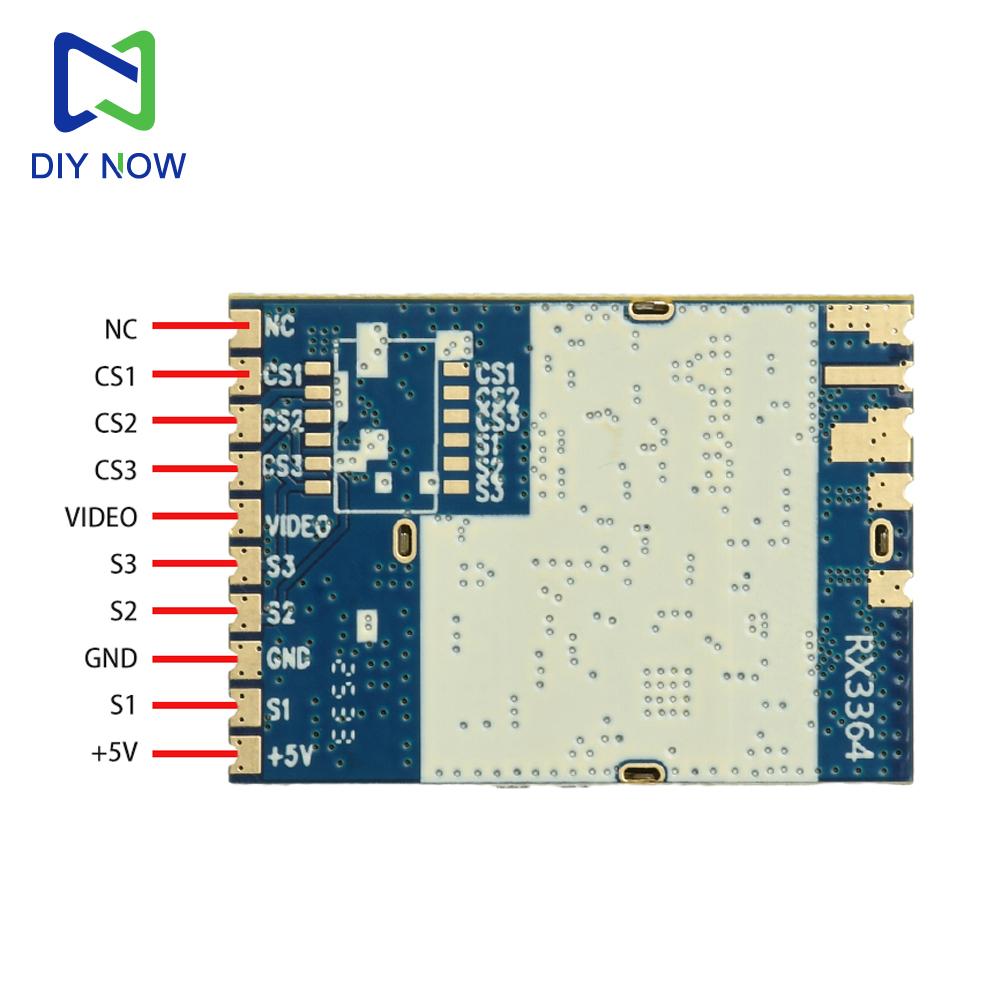

RX3364 3.3G Wireless FPV Image Transmission Module Without RSSI Simulating Wireless Audio and Video Transmission Receiver Module

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 5V Application : Drone FPV (First-Person View) Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : -10-65°C RX3364 : RX3364 Receiver Receiving frequency range : 3060-3500 MHz Intermediate frequency (IF) : 480 MHz InputLevel Range : -95dBm-+5dBm Usage Scenarios : Drone FPV (First-Person View), Wireless Communication, Image Transmission

This module is commonly used in FPV (First Person View) systems for racing drones or consumer drones, providing pilots with low-latency real-time video feedback. Simply connect the antenna for easy reception of audio and video signals. The video output impedance is 75Ω, providing clear and stable image quality, suitable for racing, aerial photography, or recreational flight. This module can also be used in educational or development projects such as wireless communication experiments and image transmission technology testing.   Product Parameters:DC CharacteristicsSupply Voltage: 5.0VCurrent Consumption: (380±30)mAOperating Temperature: -10~+65°CStorage Temperature: -30~+85°COperating Humidity: 85%RH   Radio Frequency (RF)Receiving Frequency Range: 3060-3500MHzInput VSWR: 2:1Demodulation Method: FM/PLLIntermediate Frequency (IF): 480MHzAntenna Port Impedance: 50Ω, Typ.Local Oscillator Frequency Stability: ±200kHzLocal Oscillator Frequency Accuracy: ±200kHzLocal Oscillator Control: PLL Video Input Local Oscillator Leakage: -65dBmReceiving Sensitivity: -95dBm±2Input Level Range: -95dBm~+5dBm Video Output Impedance: 75Ω, Typ.Video Output Level: 1±0.2Vp-P, Typ.Video Polarity: NegativeVideo Frequency Response: ±5 dB, Max. 50Hz ~ 6MHzDifferential Gain: ±5 %, MaxDifferential Phase: ±5 Deg., Max3dB IF Bandwidth: 16.5MHzSignal-to-Noise Ratio (S/N): 38dB, Min   Product List:1X Module label:yes
