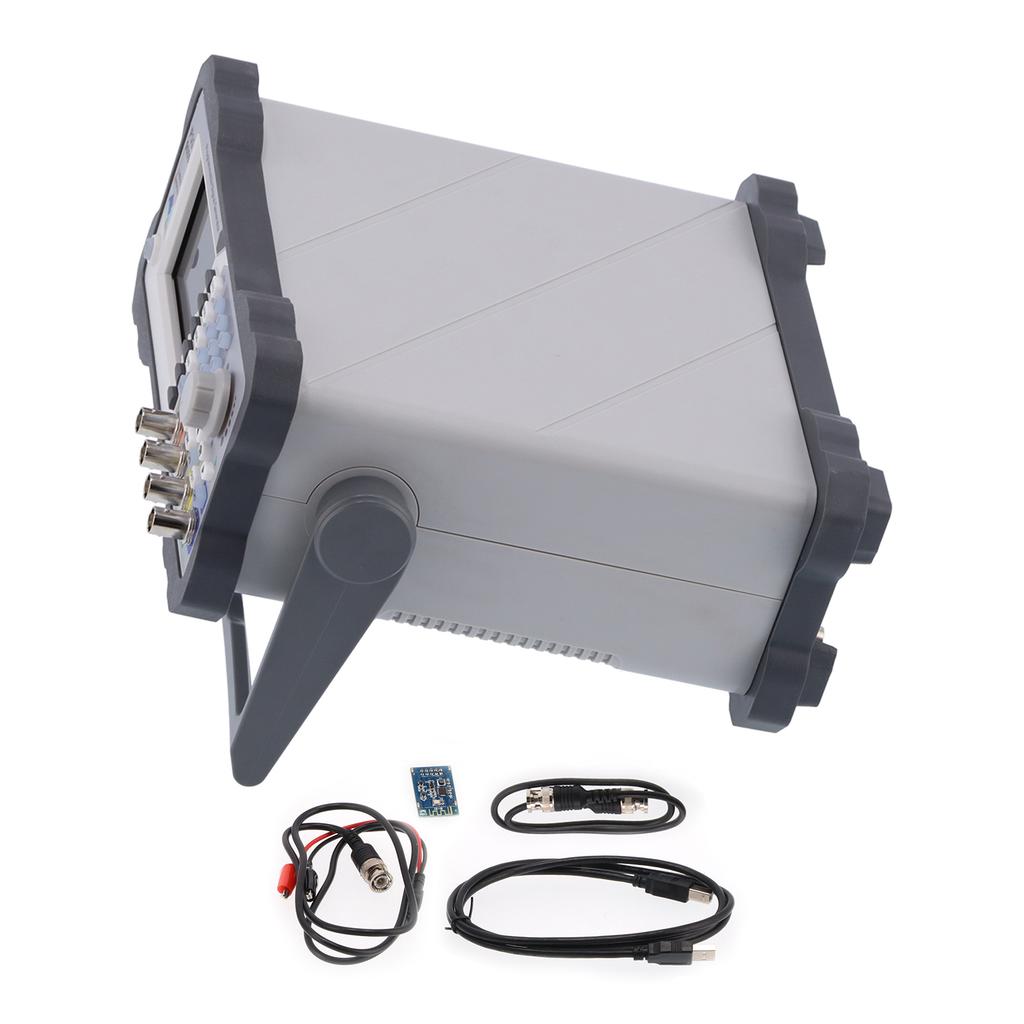

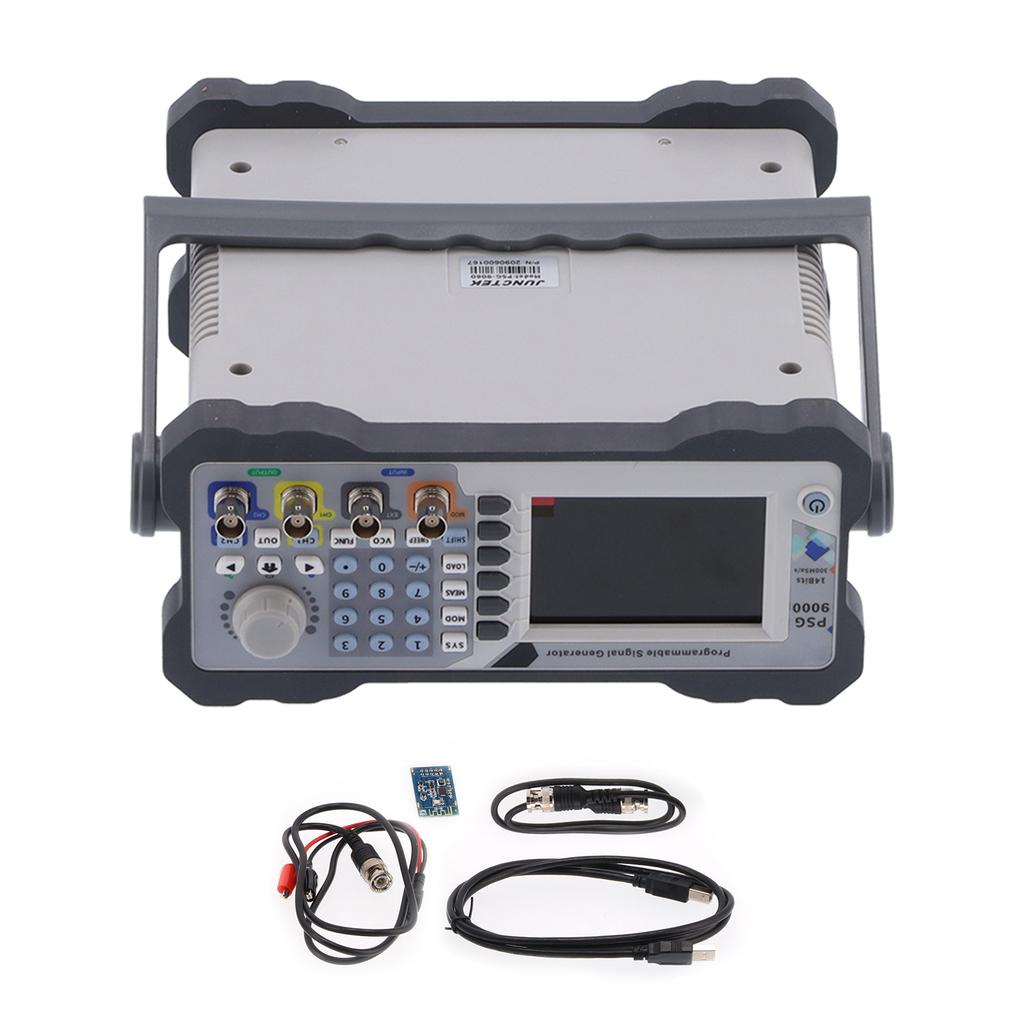

PSG9060 Signal Generator Dual Channel Function Signal Arbitrary Waveform Generator

Feature: 1. Large heat dissipation area can effectively maintain the long‑term operation. 2. Signal generator is light in weight, one‑handed operation reduces operators fatigue. 3. The integral molding has no burrs, the surface is smooth, and the installation is simple. 4. Digital signal generator uses advanced DDS technology, 2 independent channels are easy to use. 5. Equipped with a large LED screen to make your test easier to operate and observe. Specification: Item Type: Signal Generator Material: ABS Model: PSG9060 Frequency Range 87.5 108MHZ(70 90M, 100 120M can be provided) Frequency Step 0.1MHZ Frequency Stability + 10ppm ( 10 degrees C+50 degrees C) Display LED Modulation FM Antenna Impedance 50 Ohm Antenna Interface BNC Q9 Output Power 0.2W, 1W, 3W, 5W (50MW, 100MW, 200MW, 0.5W) Spurious and Harmonics

< 30dB Frequency Deviation

less than + 75kHz Modulation Sensitivity 0.75V Sound Source CD, MP3, PC Microphone Level 1 2mv Frequency Response 150 15000Hz Distortion

less than 2percent (F=75KHz, f=1KHz) S N

more than 55dB Power Voltage

DC(9V 13.8V) Working Current < 1.2A . Package List: 1 x Signal Source Generator1 x Manual3 x Connection Line1 x Module
