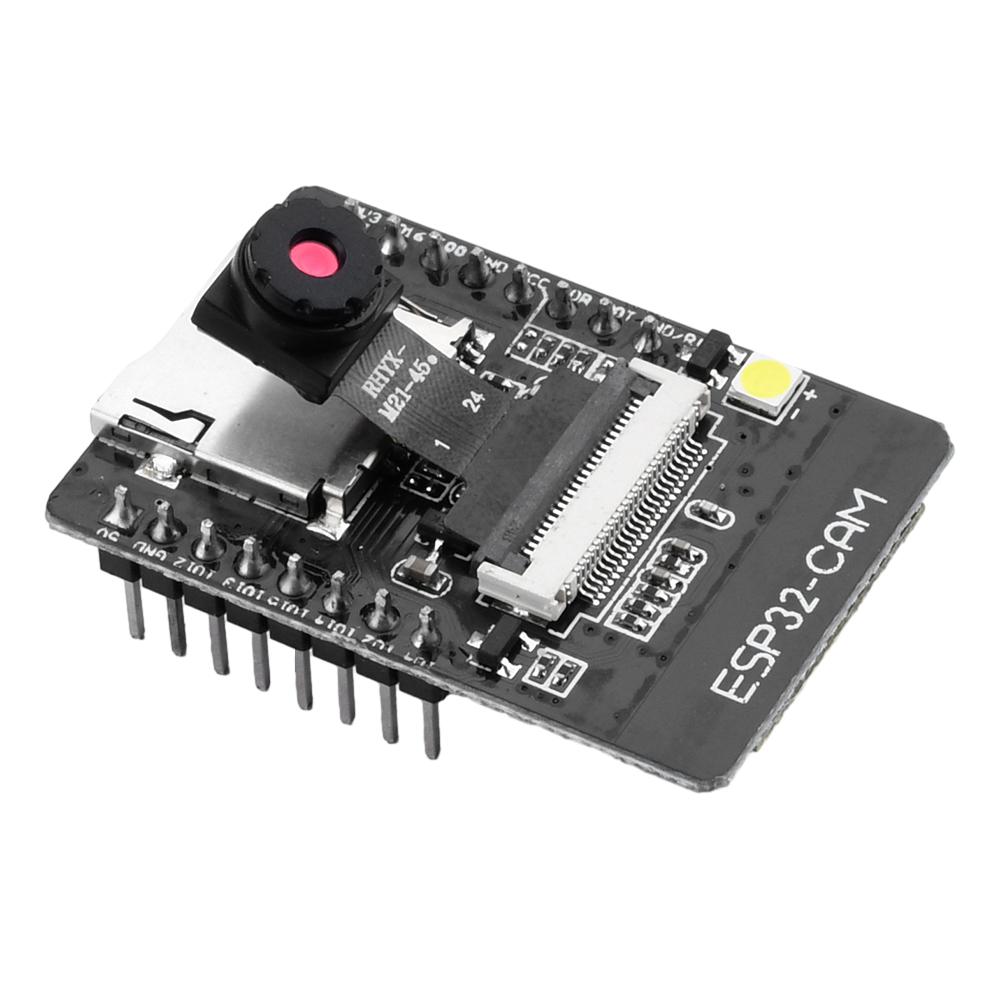

ESP32-CAM WIFI Bluetooth Development Board Onboard OV2640/OV3660 Camera Multifunctional IoT Development Board Demo Board

High-concerned chemical : none Model : IoT Development Board Type : ESP Series Origin : Mainland China Brand Name : occkic

Features: 1. This module is a small-sized camera module that can function independently as the smallest system. 2. A new WiFi+BT dual-mode development board designed based on ESP32, with onboard PCB antenna. 3. ESP32-CAM is an 802.11b/g/n Wi Fi+BT/BLE SoC module with ultra-low power consumption and deep sleep current as low as 6mA, making it suitable for IoT applications with high power requirements.. 4. Easy to use, ESP32-CAM is a micro module with camera function, equipped with OV2640 camera, GPIO for connecting peripherals, and a micro-SD card for storing captured images. It can be used directly by plugging it into the motherboard. 5. ESP32-CAM can be widely used in various IoT scenarios, suitable for home smart devices, industrial wireless control, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications. Parameter: Working voltage: 4.75-5.25V, recommended 5V SPIFlash: default 32mbit RAM: Internal 520KB Wi Fi: 802.11b/G/n/e/i BT: BT 4.2BR/EDR and BLE standards Supports interfaces (2Mbps): UART, SPI, I2C, PWM TF card support: up to 4G IO ports: 9 Serial port speed: default 115200bps Spectrum range: 2400~2483.5 MHz Antenna shape: Integrated PCB, 2dBi gain Image output formats: JPEG (OV2640 only), BMP, GRAYSCALE Transmission power: 802.11b: 17 ± 2dBm (@ 11mbps) 802.11g: 14 ± 2dBm (@ 54mbps) 802.11n: 13 ± 2dBm (@ MCS7) Receiving sensitivity: CCK, 1mbps: -90dBm CCK, 11mbps: -85dBm 6Mbps (1/2BPSK): -88dBm 54Mbps (3/464-QAM): -70dBm MCS7 (65Mbps, 72.2 Mbps): -67dBm Power consumption: Turn off flash: 180mA @ 5V Turn on the flash and set the brightness to maximum: 310mA @ 5V. Deep sleep: The lowest power consumption can reach 6mA@5V . Modern sleep: minimum achievable 20mA@5V . Light sleep: minimum achievable 6.7mA@5V . Security: VPA/VPA2/VPA2 Enterprise/VPS Working temperature: -20 ℃~70 ℃ Storage environment: -40 ℃~125 ℃,<90% RH Application: Smart home device image transmission Wireless monitoring Smart agriculture Wireless QR code recognition Wireless positioning system signal And other IoT applications Package include: Set 1: Development board X1 Camera X1 Set 2: Development board X1 Camera X1 Burn bottom plate X1 label:yes
