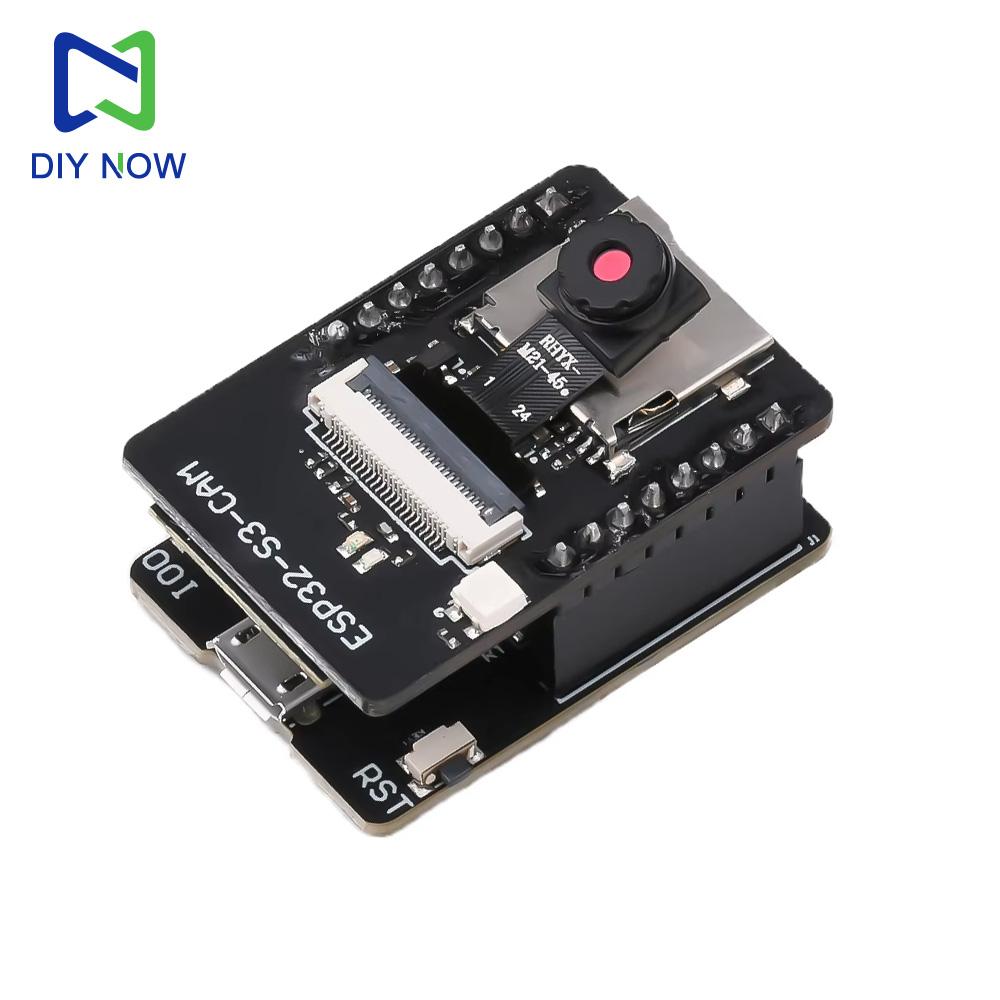

ESP32 S3 CAM Development Board with OV2640 Camera Onboard WiFi Bluetooth Compatible Module ESP32-S3-1 N16R8 Module

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Application : Electric Toy Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : -40 to 65

Features: 1.ESP32-S3 is a low-power MCU system-on-chip (SoC) that integrates 2.4 GHz Wi-Fi and low-power Bluetooth dual-mode wireless communication.

2. The chip integrates a high-performance Xtensa® 32-bit LX7 dual-core processor, ultra-low-power co-processor, Wi-Fi baseband, Bluetooth baseband, RF module and peripherals.

3. Supports multiple low-power working states and can meet the power consumption requirements of various application scenarios.

4. The ESP32-S3 chip provides rich peripheral interfaces and has a variety of unique hardware security mechanisms. The complete security mechanism enables the chip to meet strict security requirements.

5. Application fields include: smart home, industrial automation, consumer electronics, smart agriculture, robots, audio equipment, etc.

Performance parameters: Xtensa® 32-bit LX7 dual-core processor up to 240 MHz Built-in 512 KB SRAM, 384 KB ROM storage space, and supports multiple external SPI, Dual SPI, Quad SPI, Octal SPI, QPI, OPI flash and off-chip RAM Additional vector instructions for accelerating neural network calculations and signal processing 45 programmable GPIOs, supporting common peripheral interfaces such as SPI, I2S, I2C, PWM, RMT, ADC, UART, SD/MMC host controller and TWAITM controller, etc.

Wi-Fi • Supports IEEE 802.11b/g/n protocols • Supports 20 MHz and 40 MHz bandwidth in 2.4 GHz band • Supports 1T1R mode with data rates up to 150 Mbps • Wireless Multimedia (WMM) • Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU) • Immediate Block ACK • Fragmentation/defragmentation • Beacon automatic monitoring (hardware TSF) • 4 × virtual Wi-Fi interfaces • Supports Infrastructure BSS Station mode, SoftAP mode and Station + SoftAP mode at the same time. Please note that when ESP32-S3 scans in Station mode, the SoftAP channel will change at the same time • Antenna diversity • 802.11 mc FTM

Bluetooth-compatible : • Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth mesh • High power mode (20 dBm) • Rate support 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps • Advertising Extensions • Multiple Advertisement Sets • Channel Selection Algorithm #2 • Wi-Fi and Bluetooth coexist and share the same antenna

CPU and storage • Xtensa® 32-bit LX7 dual-core processor up to 240MHz • 384 KB ROM • 512KB SRAM • 16 KB RTCSRAM • 8MB PSRMA Working voltage: 3V- 3.6V Temperature range: -40 to 65℃ Product List: Set one: 1XESP32-S3-CAM development board

Set two: 1XESP32-S3-CAM development board 1X2640 camera

Set three: 1XESP32-S3-CAM development board 1X2640 camera 1X burning socket

Set four: 1X burning socket label:yes
