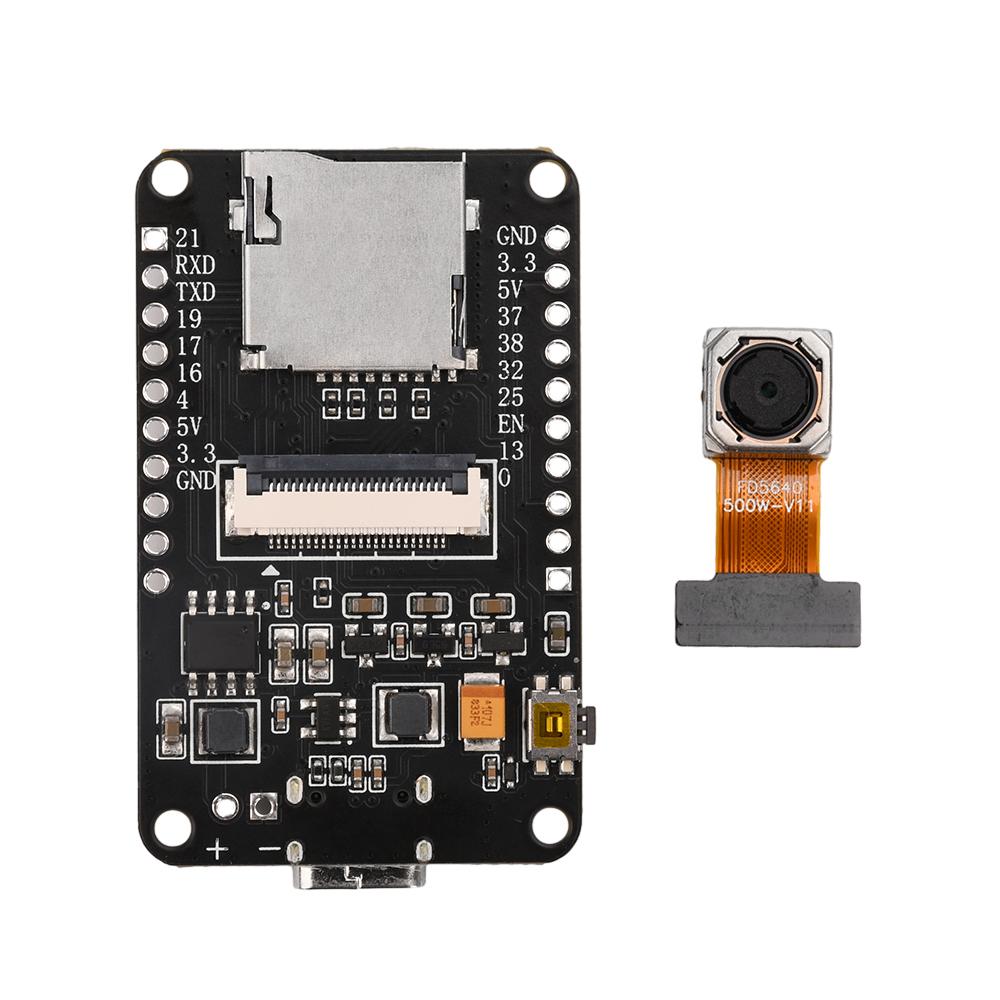

Tye-c ESP32-CAM Development Board WiFi Bluetooth 80-240MHz Module CH340 With OV5640 Camera Modulle 500W Pixel

Quantity : 1 High-concerned chemical : none Package : TQFP is_d : Yes Application : Camera Type : Voltage Regulator Brand Name : DIY NOW Origin : Mainland China Condition : New Condition : New Type : Esp Module Key Word : OV5640 Module Dropship : Support

Tye-c ESP32-CAM Development Board WiFi Bluetooth 80-240MHz Module CH340 With OV5640 Camera Modulle 500W Pixel

Feature: 1. This development board is an upgraded version of the ESP32-CAM development board, with PSRAM added. 2. The module adopts the ESP32 low-power solution, integrated with wifi and Bluetooth, and the module can run independently as a minimum system. 3. The module is equipped with a 0V5640 camera by default. With the powerful performance of ESP32, it can reach up to 30 FPS in VGA format. 4. The most significant feature of this upgrade is the addition of 8M (bytes) of external RAM and upgraded configuration TF card slot, which can support users to use storage cards up to 32G, can shoot higher pixels and store more pictures, and meet users' various secondary development needs. 5. And after adding PSRAM, it can also support the face recognition framework ESP-WHO, which is suitable for use in the Internet of Things and smart devices, such as the development of face recognition projects in supermarket lockers.

Performance parameters: MCU:ESP32-D0WDQ6: The frequency can be adjusted between 80-240MHz, integrated 2.4GHz Wi-Fi and Bluetooth dual-mode, 40nm process, internal integrated 520KB RAM and onboard 8MB PSRAM, using SPI protocol communication, the rate is up to 40M. USB:CH340X: Automatic download circuit, with E8051 core compatible with MCS51 instruction set, the average instruction speed is 8~15 times faster than the standard MCS51, ESP32-CAM module uses CH340X to realize automatic download circuit, with USB can be convenient to write and debug ESP32. CMOS:OV5640 Camera: Provides the complete functions of a single-chip JXGA (1632x1232) camera and image processor, through the serial camera control bus (SCCB) interface, provides full-frame sampling, scaling or windowed 8-bit/10-bit images in multiple formats, and the best image distance is 20-250CM. Dual power supply mode: USB and external battery: battery welding points are reserved, and the battery is not installed by default. Users can connect a 3.7v lithium-ion battery by themselves. The module is equipped with an IP5306 power management chip to detect the battery power/charging status. Double-click the reset button to shut down the device in battery power mode, and single-click the reset button to start up the device. HY2.0 cable interface: A HY2.0 cable interface is reserved and mounted on the internal I2C bus, so that it can be expanded through I2C to achieve multi-functions to meet different application scenarios. Trans-flashCard: Maximum support for 32G storage card Sensor category: optical sensor Working current: 0.15A Working voltage: 5V Size: 48mm*30mm Module application scenarios: Secondary development of Aolt applications such as monitoring, video, and photography Low-cost camera solutions IoT node equipment Product list: 1X development board 1X OV5640 camera 1X heat sink label:yes
