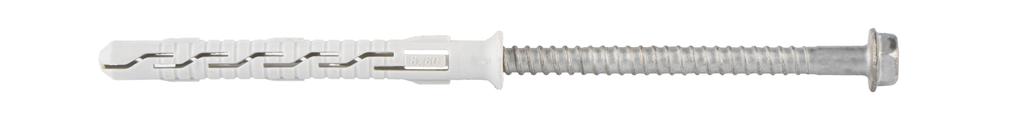

Frame expansion plugs KPS-FAST-08080K (50)

Frame expansion plugs

8x80 mm, 50 pcs.

Consists of a polyamide sleeve and a galvanized steel screw with a hexagonal head with an integrated washer and a TX socket.

Recommended for fastening metal elements and in places where a larger pressure surface is needed and flush mounting of the screw head is not required, unlike countersunk head screws.

The most important parameters

• Model: KPS-FAST-08080K

• Plug size: 8.0x80 mm

• Maximum usable length: 10 mm

• Packaging: 50 pcs

• Socket: TX-30

• a sleeve - a plastic element

• a connector - a steel screw with a conical head and a socket TORX-30

Original Product of a Reputable Company KLIMAS Screw-Met ®

Features and benefits

1. Backplate head with TX-30/SW-10 socket

The TX socket guarantees optimal torque transfer, while the use of a SW hexagonal head allows you to tighten the screw with the appropriate force (e.g. using a torque wrench).

2. Thread Reduction

Precise screw insertion. Increased expansion force in the second expansion zone.

3. Anti-corrosion protection - zinc flake

Zinc flake is twice as resistant to corrosion as galvanized zinc. The Klimas Wkręt-met laboratory confirmed the excellent quality of the coating through tests in a salt spray chamber (240 hours in a salt spray chamber for zinc flake compared to 120 hours for galvanized zinc).

4. Polyamide Sleeve

Better physicochemical properties than polypropylene or polyethylene.

5. Fire Resistance

For the installation of facade systems, the connector's load-bearing capacity has a sufficient fire resistance of at least 90 minutes (R90). if the design load on one connector NR<0.8kN (without permanent centric load).

Substrates and example applications

B. Solid ceramic brick, silicate

C. Ceramic block,

D. Hollow silicate block,

E. Autoclaved AAC concrete

1. Installation of ventilated facades

2. Air conditioner mounting

3. Warm mounting fasteners

4. Fastening of building installation elements

5. "Warm mounting" fasteners

6. Fastening of building installation elements

These are only example applications.

Frame plug with a hexagonal head screw with an integrated washer and a TX socket recommended for fastening metal elements.

• Plastic element - sleeve

• Connector - steel screw

Pre-assembly of the connectors means:

• simpler and faster assembly

• ready-to-use products without the need for assembly

• no mistakes when selecting the sleeve for the screw

• [Dk] Plug diameter: Ø 8.0 mm

• [Lk] Plug length: 80 mm

• [Tfix] Max. usable length: 10/30 mm

• [Heff] Anchorage depth: 50/70 mm

• Plug material: polyamide (nylon)

• Quantity in package: 50

• [Dw] Screw diameter: Ø 6.0 mm

• [Lw] Screw length: 85mm

• Socket type: SW-10 and TX-30

• Screw material: galvanized steel

• Quantity in package: 50

European Technical Approval ETA 12/0272

The screws we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and suitable for specific tasks.

• Before installation, identify the substrate in which the fastener will be installed and compare the loads that the fastener will transfer with the load-bearing capacities specified in the Product Data Sheet or in the European Technical Assessment.

• The appropriate length of the fastener should be selected so that the expansion zone is located in the wall construction material (the thickness of the fastened element corresponds to the maximum usable length of the fastener).

• The drilling hole depth should be at least 10 mm longer than the anchorage depth of the connector - this will allow for correct seating of the sleeve in the hole and eliminate the problem of screws loosening.

• Using impact is not recommended when drilling in perforated bricks, ceramic blocks and aerated concrete, which destroys the walls and does not ensure the connector is securely seated.

• The diameter of the drilled holes should match the diameter of the dowels used.

• The drilled hole should be cleaned, at least by passing the drill twice, which will remove the drilling dust to the outside. Holes drilled vertically downwards require deeper drilling or blowing out the accumulated drilling dust.

• The dowel is inserted into the drilled hole and the screw is screwed in until it is fully embedded in the sleeve.

• Forcing the screw may cause it to loosen, which is not covered by the manufacturer's warranty.

• Installation should be carried out performed at a temperature in the range of -20 °C to +40 °C (refers to the substrate temperature).
