ULTRASONIC COATING MATERIAL THICKNESS GAUGE

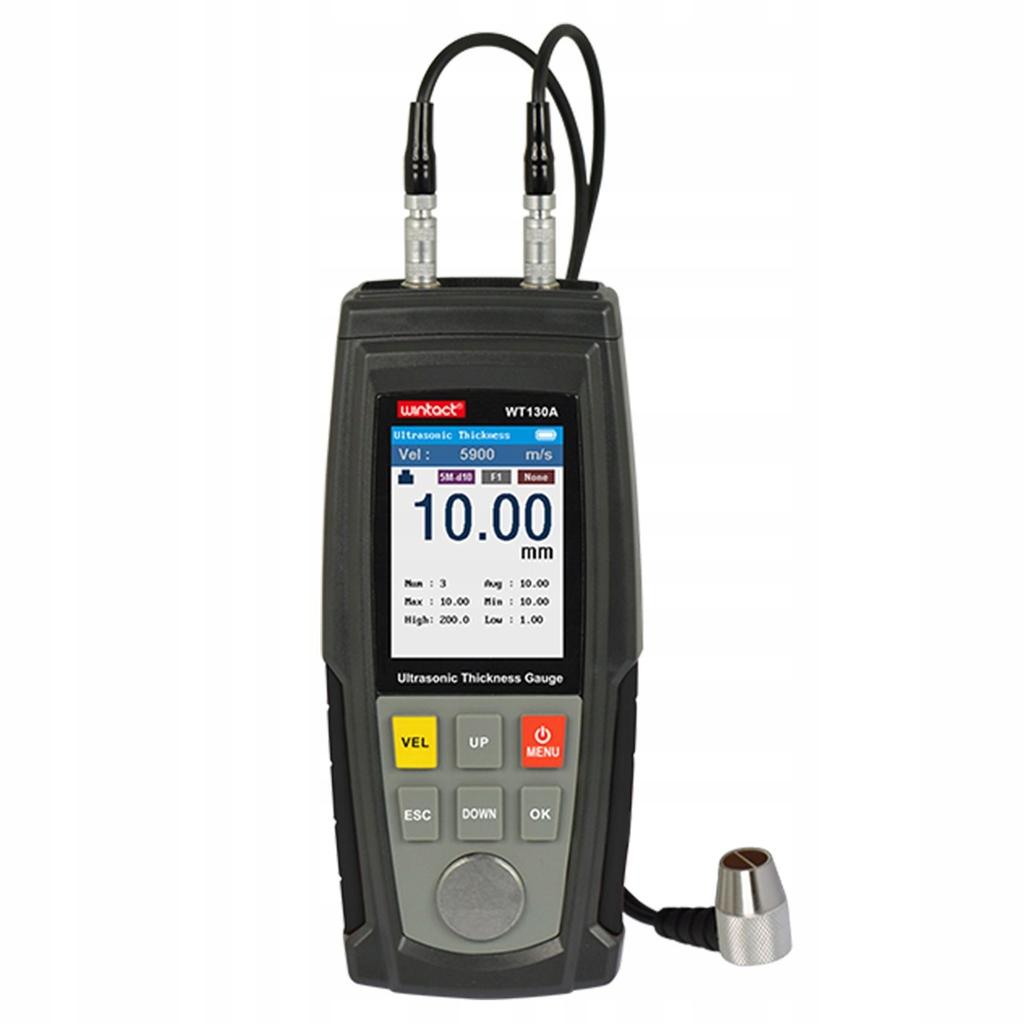

✅ ULTRASONIC THICKNESS GAUGE WT130A

EQUIPPED WITH TWO MEASUREMENT PROBES INCLUDED(adjust the probe as needed)

The meter is equipped with a microprocessor for quick and non-invasive measurement of material thickness and sound propagation velocity.

Modern and easy to use, as well as rich in numerous functions:ultrasonic thickness gauge equipped with a microprocessor for fast andnon-invasive measurement of material thickness and sound propagation speed.

The device is used to accurately measure the thickness of various materials or elements in the manufacturing industry. The device is perfect formaintenance of pipelines and pressure vessels.It is usefulin production, metalworking, quality control of goods and other inspection areas.For any material that allows ultrasonic waves to be transmitted at a constant speed and that can be distinguished from waves reflected from the back side.

✅ Application of the thickness gauge:

The device can be used to measure the thickness of any material that conducts ultrasonic waves well, whose upper and lower surfaces are parallel to each other, e.g. metal, plastic, ceramics and glass, aluminum, copper, gold, resin, water, glycerine, etc., except cast iron, whose particles are too large.

✅ KEY FEATURES OF THE COATING METER:

• Two measuring probes included!

• Large measurement range:1 - 300 mm

• Data recording: up to 1500 data groups

• Large and clear screen - color display

• Data graphs - easy-to-analyze data graphs can be generated directly on the device's screen.

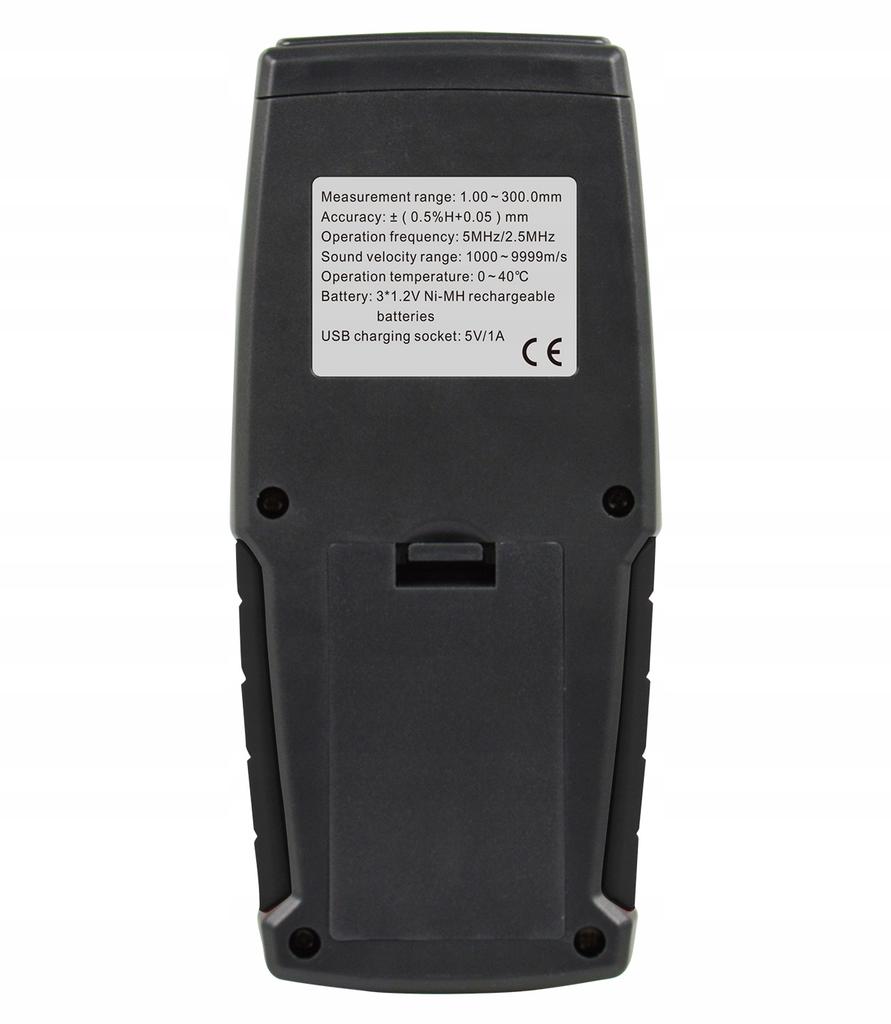

✅ Thickness Gauge Specifications:

• Item Type: Thickness Gauge

• Material: ABS

• Purpose: Used to measure the thickness of metal, glass and other Materials.

• Measuring range: 1.00-300.00 mm

• Data storage: 1500

• Probe: yes

• Operating frequency: 5MHz/2.5MHz

• Measuring error: ±(0.5%H + 0.05)mm

• Minimum pipe measurement: Ф20x3mm (steel)

• Sound velocity adjustment: 1000-9999m/s

• Operating temperature range: 0~40℃

• Battery: 3 pcs AAA 1.2V batteries (battery not included)

• Probe application:

• 5Md10: 1.0-300.0mm

• 5Md6: 1.0-100.0mm

• 25M: 1.2-300.0mm

• High temperature: 1.2-300.0mm

✅ Different from WT100A up:

• Higher data storage capacity

• Larger measurement range

• Second probe, to be adjusted according to material thickness.

✅ Set contents:

• thickness gauge,

• user manual in Polish,

• cable USB,

• two measurement probes,

• USB charger,

• original manufacturer's packaging.

✅ INTERFACE DESCRIPTION MENU

1. Choosing the measurement method

2. Measurement records

3. Setting value limits

6. Data graphs

✅ MEASUREMENT INTERFACE DESCRIPTION:

2. Sound Velocity

3. Feedback Icon

4. Selected Probe

5. Measured Value

6. Battery Charge Status

7. Currently Selected Data Recording Method (Hand.S - Manual Recording)

9. Detailed Measurement Information

✅ DESCRIPTION OF THE DEVICE ELEMENTS:

1. Receiving port

2. Transmission connector

5. Function buttons

6. Measuring probe

7. Built-in calibration plate
