ABS DIY Generator Kit Acrylic Signal Generator Kit Precise Waveform Generator Kit DIY Assembly

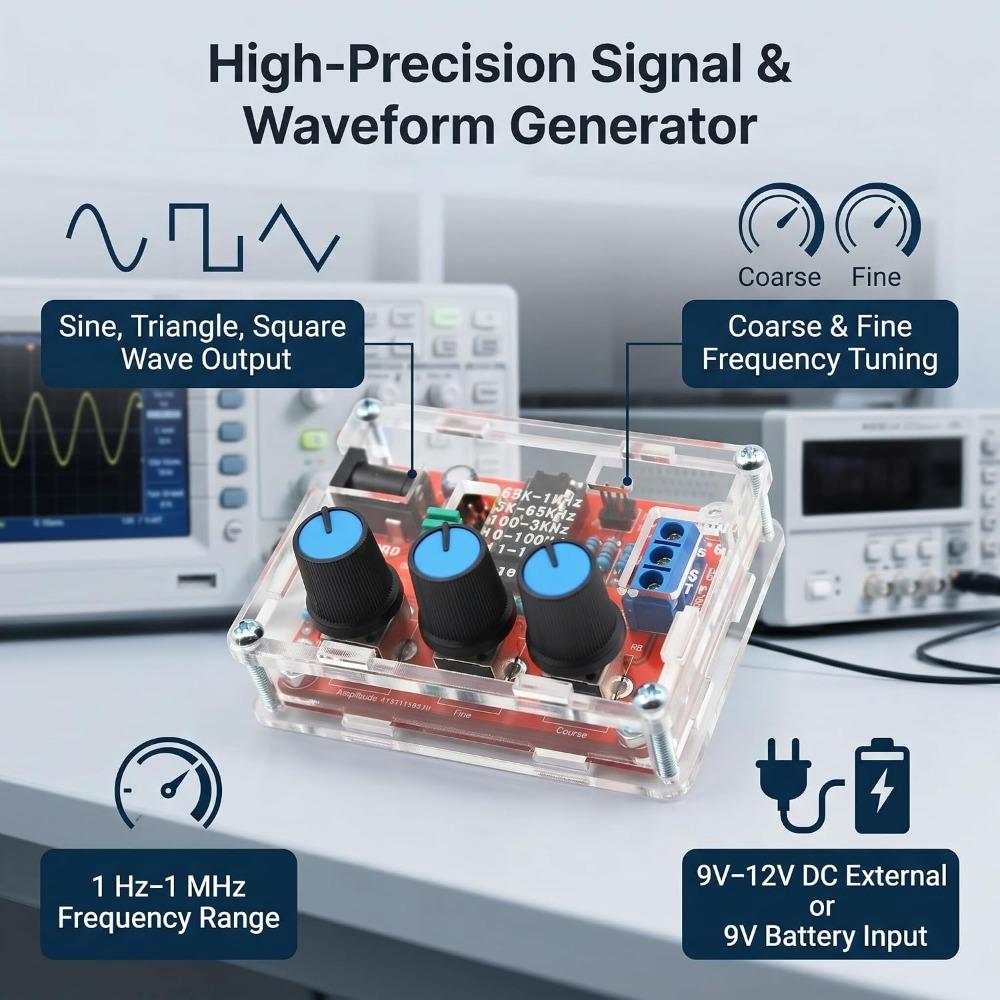

Label:Yes Through-Hole DIY Assembly: Supplied as loose component set. All parts follow through-hole soldering standard, assembly manual included for electronics hobbyists. Broad Frequency Coverage: Delivers frequency output ranging from 1Hz to 1MHz with five-digit resolution for detailed signal testing work. Stable Power Input With Full Specs: Accept 9-12V DC input via 5.5*2.1 power port. Impedance reaches 600 Ohms ±10 percent. Assembled unit dimension: 7.2cm(2.83in) length, 5.5cm(2.17in) width. Tunable Parameter Setting: Equipped with coarse-tune and fine-tune knobs, supporting adjustable frequency and amplitude for precise waveform output. Multi Waveform Output: This DIY kit produces sine, square and triangle waveforms to satisfy different electronic project requirements.

Specifications: Product Name: DIY XR2206 Waveform Generator Kit Color: Colorful Material: Acrylic, ABS, FR-4 Fiberglass, Metal Weight: 70 g

Product Size: 7.2*5.5cm(2.83*2.17in)

Type: DIY Kit Voltage Supply: 9-12V DC Input Waveforms: Square, Sine &Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz-1MHz Sine: Amplitude: 0-3V at 9V DC Input Distortion: Less than 1% (at 1KHz) Flatness: +0.05dB 1Hz - 100kHz Square: Amplitude: 8V (no load) at 9V DC Input Rise Time: Less than 50ns (at 1KHz) Fall Time: Less than 30ns (at 1KHz) Symmetry: Less than 5% (at 1KHz) Triangle: Amplitude: 0-3V at 9V DC Input Linearity: Less than 1% (up to 100KHz) 10mA Package Size: Approx. 12 * 8 * 2cm(4.72 * 3.15 * 0.79in) / 4.72 * 3.15 * 0.8in Package Weight: 69g / 2.46oz

Package Including: 1 Set DIY Kit ( With Manual )

Notes: 1.The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
