FR-4 Fiberglass DIY Generator Kit ABS Sine Wave Generator Electronics Enthusiasts

Label:Yes Tunable Parameter Setting: Equipped with coarse-tune and fine-tune knobs, supporting adjustable frequency and amplitude for precise waveform output. Stable Power Input With Full Specs: Accept 9-12V DC input via 5.5*2.1 power port. Impedance reaches 600 Ohms ±10 percent. Assembled unit dimension: 7.2cm(2.83in) length, 5.5cm(2.17in) width. Multi Waveform Output: This DIY kit produces sine, square and triangle waveforms to satisfy different electronic project requirements. Through-Hole DIY Assembly: Supplied as loose component set. All parts follow through-hole soldering standard, assembly manual included for electronics hobbyists. Broad Frequency Coverage: Delivers frequency output ranging from 1Hz to 1MHz with five-digit resolution for detailed signal testing work.

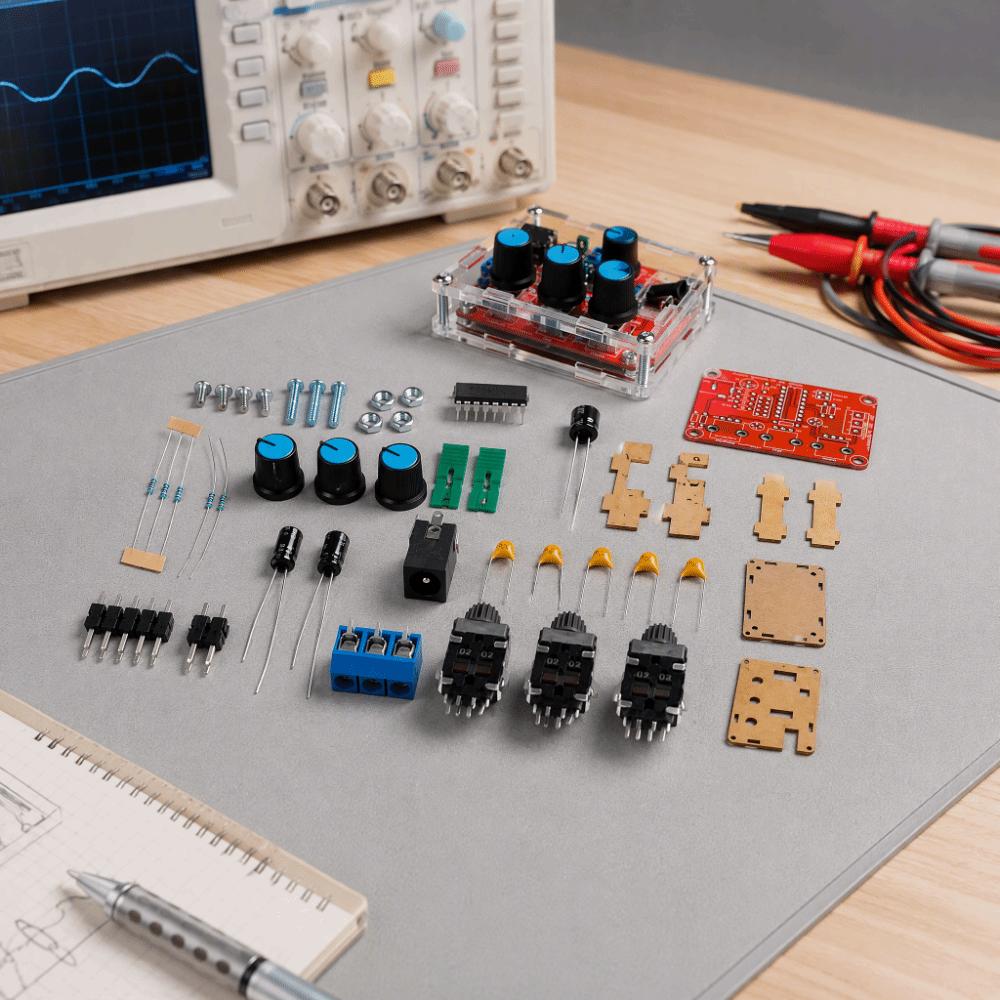

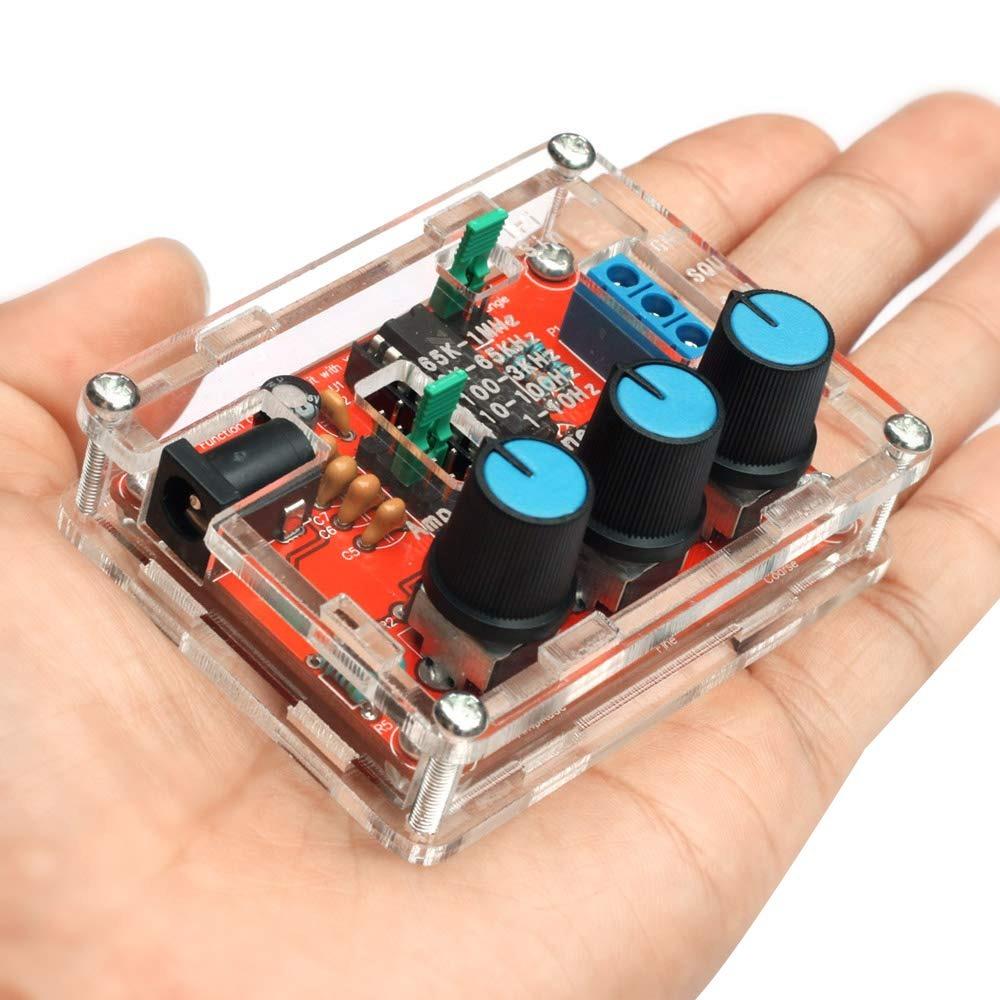

Specifications: Product Name: DIY XR2206 Waveform Generator Kit Color: Colorful Material: Acrylic, ABS, FR-4 Fiberglass, Metal Weight: 70 g

Product Size: 7.2*5.5cm(2.83*2.17in)

Type: DIY Kit Voltage Supply: 9-12V DC Input Waveforms: Square, Sine &Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz-1MHz Sine: Amplitude: 0-3V at 9V DC Input Distortion: Less than 1% (at 1KHz) Flatness: +0.05dB 1Hz - 100kHz Square: Amplitude: 8V (no load) at 9V DC Input Rise Time: Less than 50ns (at 1KHz) Fall Time: Less than 30ns (at 1KHz) Symmetry: Less than 5% (at 1KHz) Triangle: Amplitude: 0-3V at 9V DC Input Linearity: Less than 1% (up to 100KHz) 10mA Package Size: Approx. 12 * 8 * 2cm(4.72 * 3.15 * 0.79in) / 4.72 * 3.15 * 0.8in Package Weight: 69g / 2.46oz

Package Including: 1 Set DIY Kit ( With Manual )
