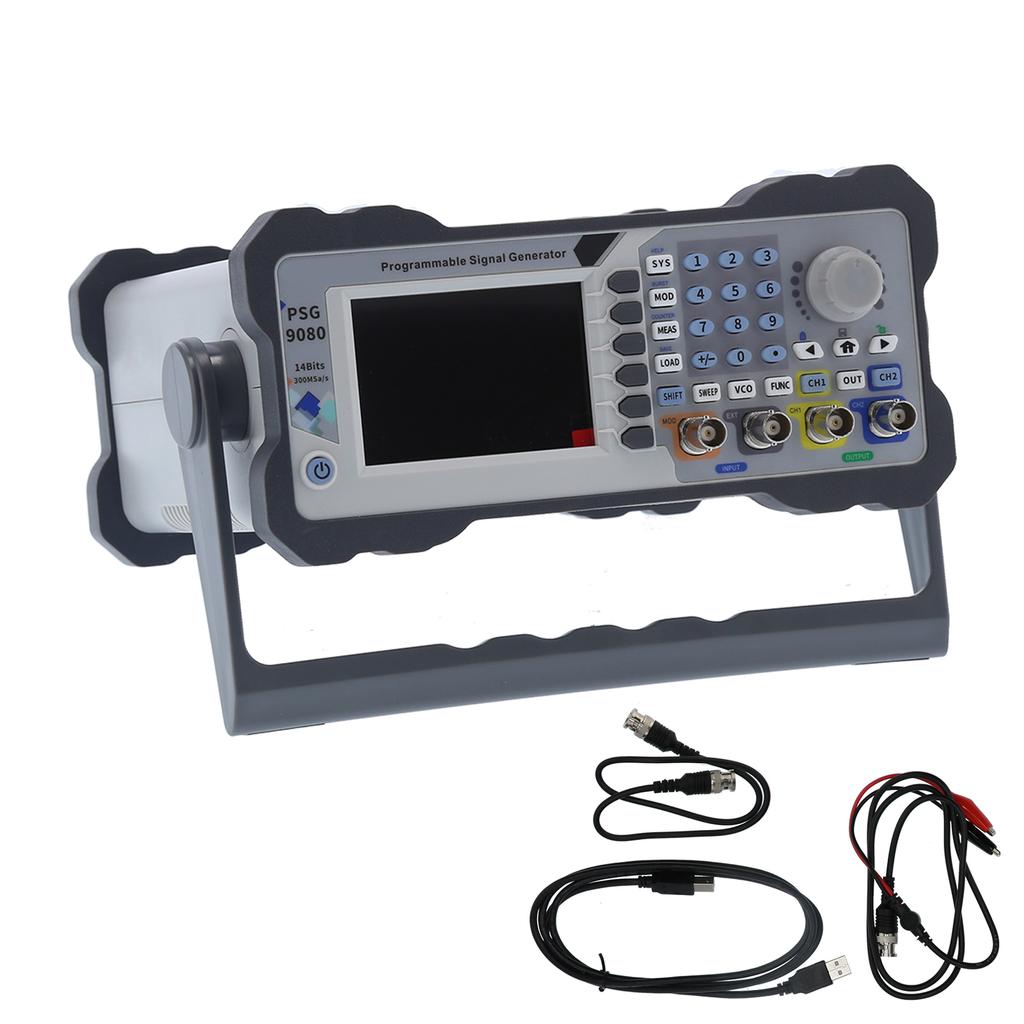

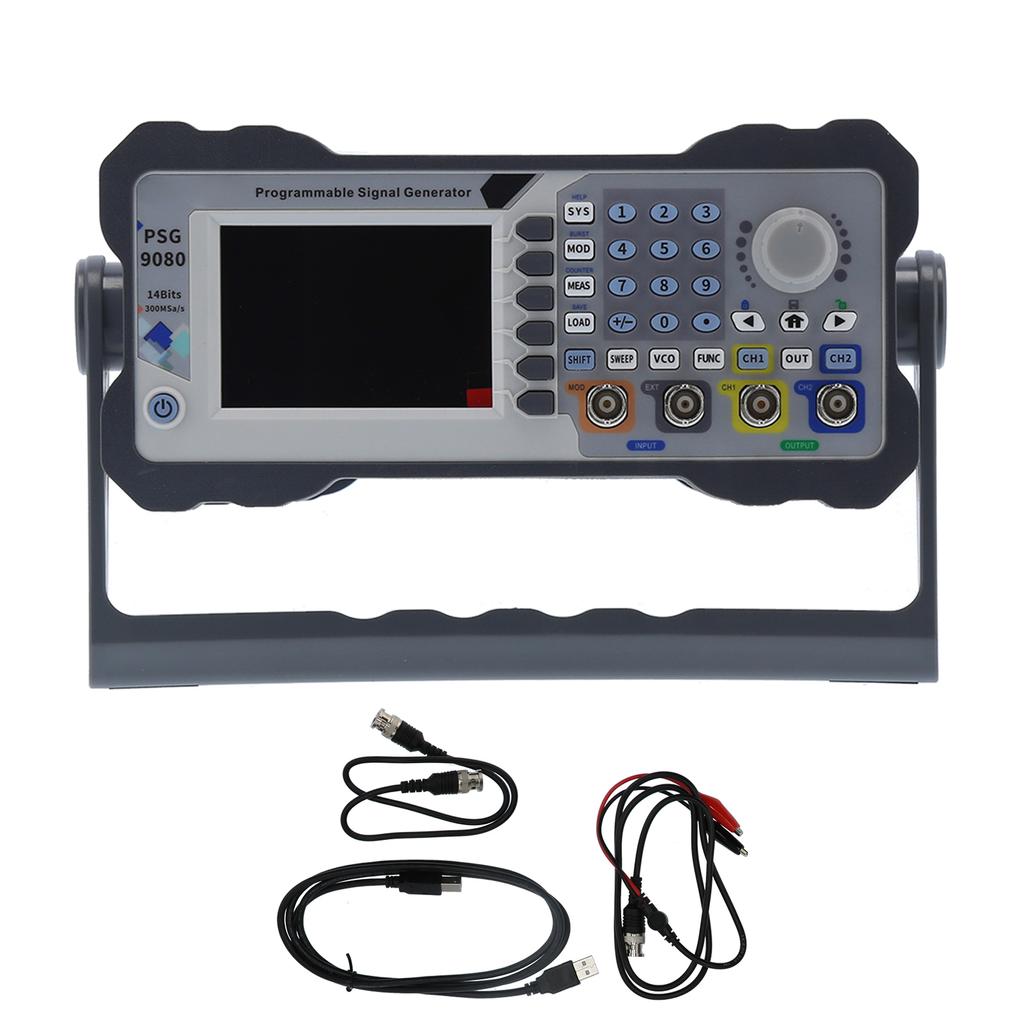

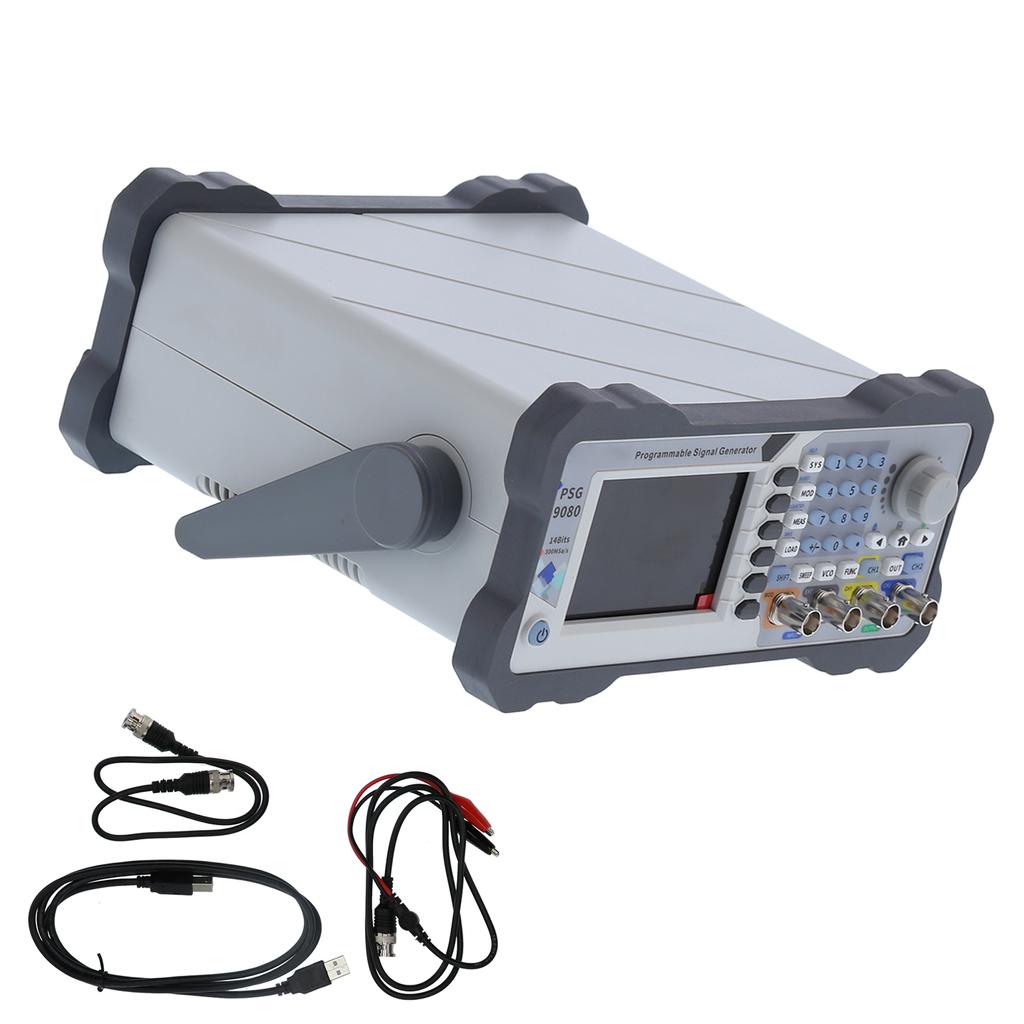

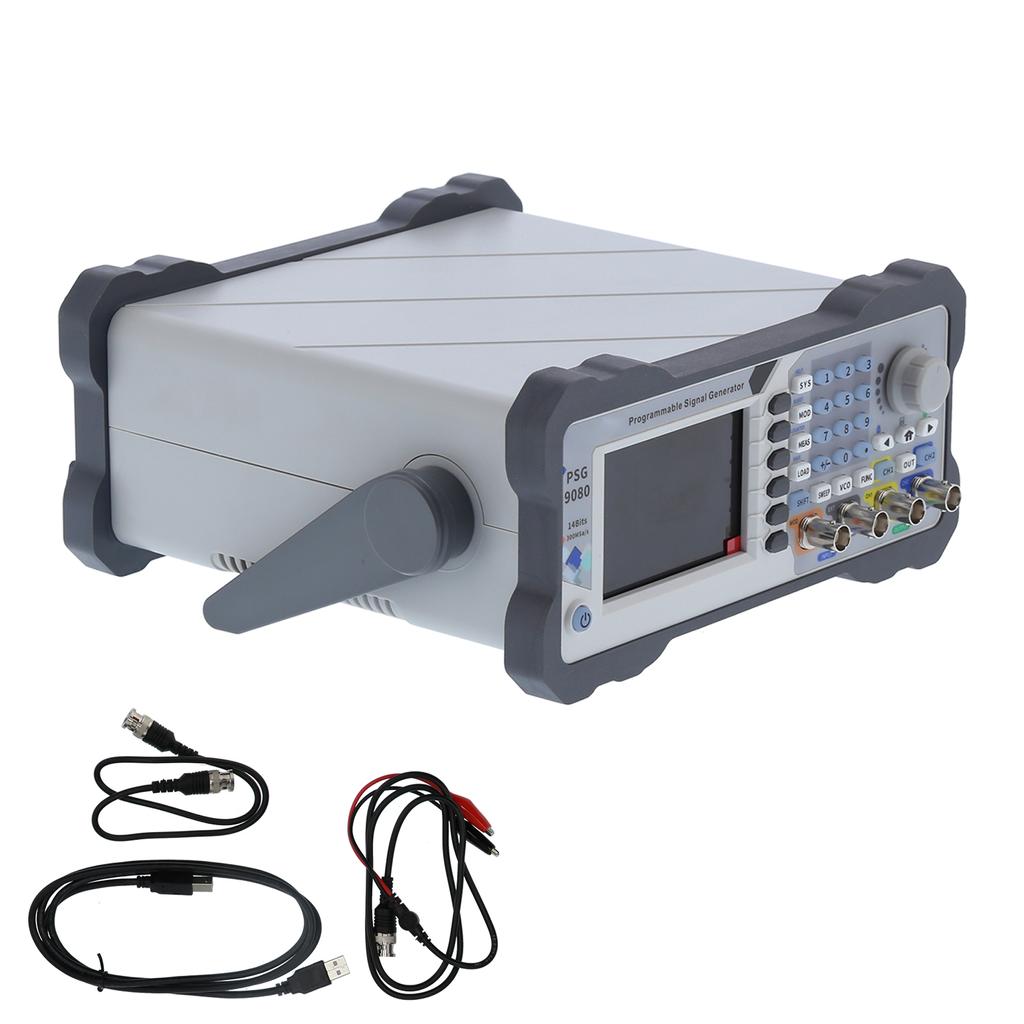

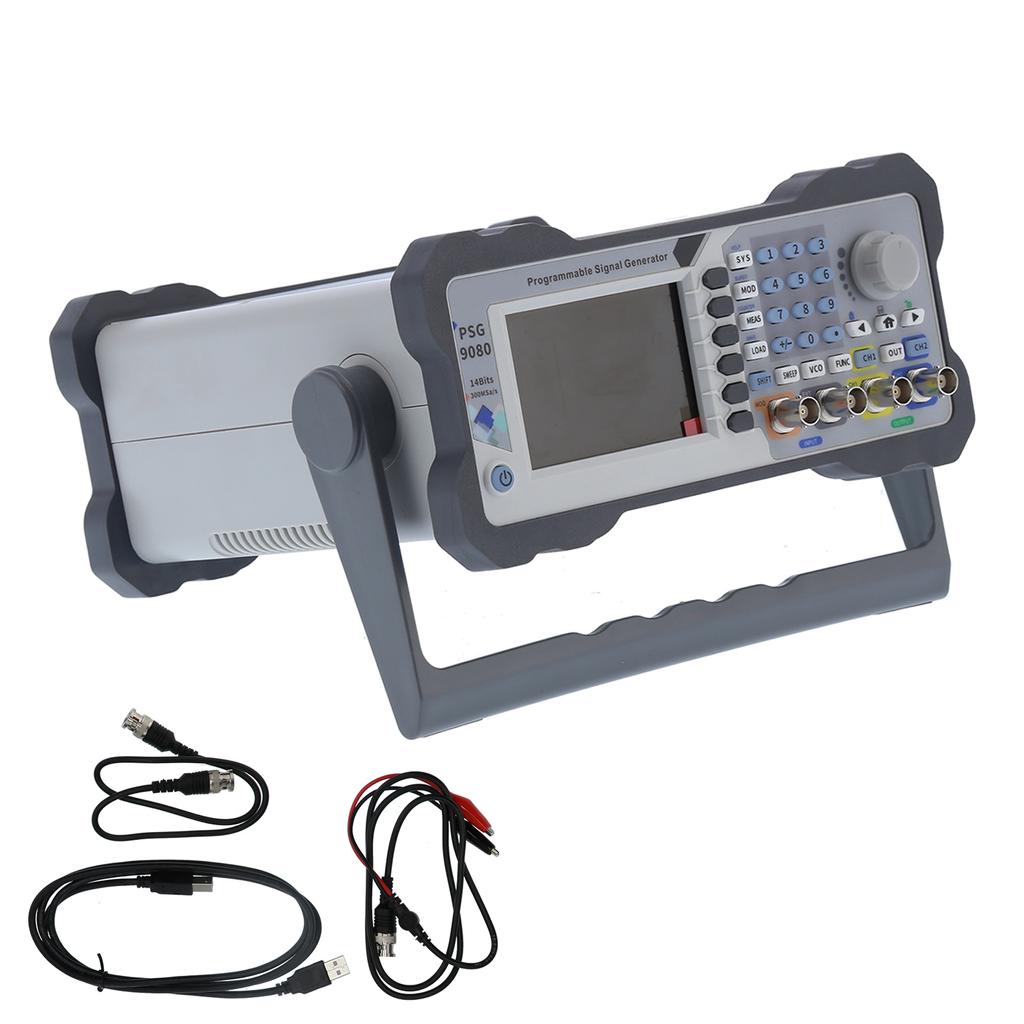

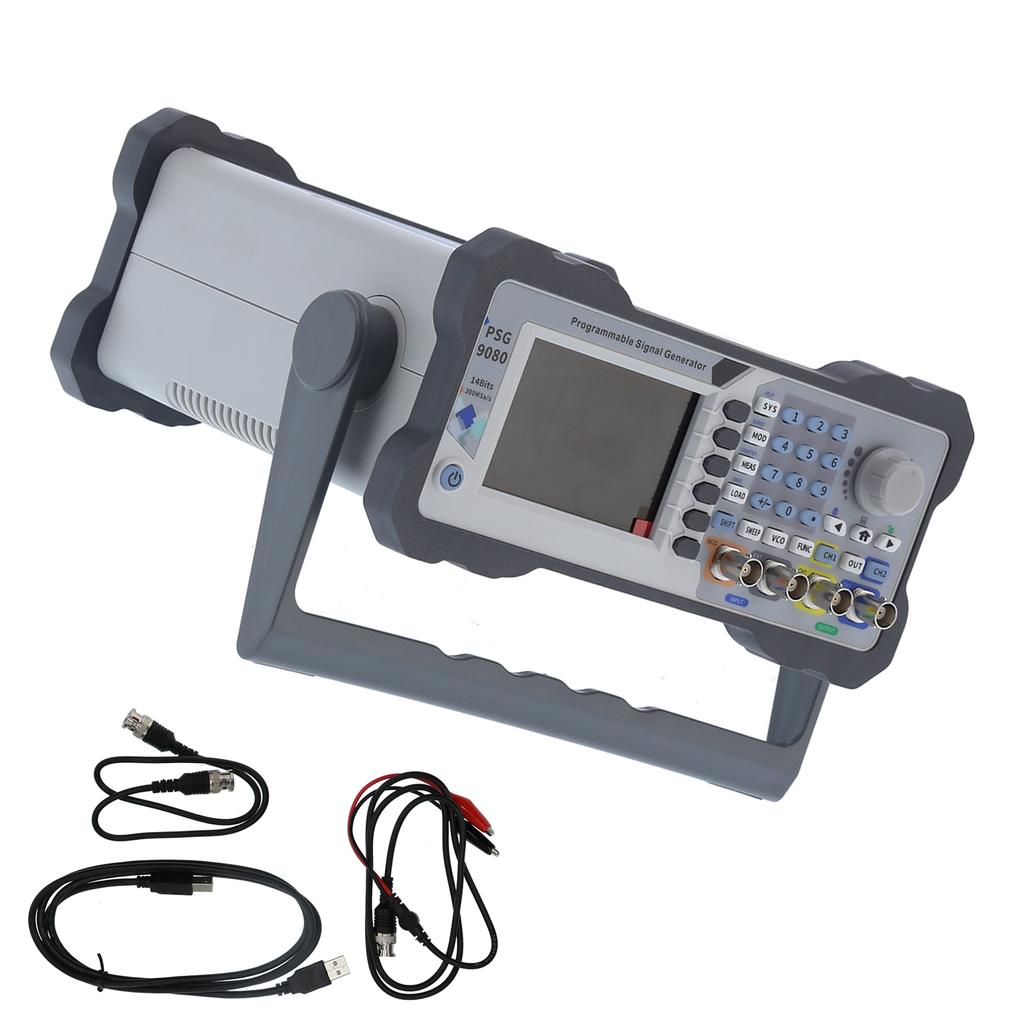

PSG9080 DDS Numerical Control Dual Channel Function Arbitrary Wave Signal Source Generator Frequency Meter

Feature: 1. The heat dissipation area is large, which can better maintain long‑term operation. 2. It is light in weight and can be operated with one hand to reduce the fatigue of the operator. 3. It is comfortable to hold, integrally formed without burrs, and has a smooth surface. 4. Easy to install, you can quickly complete the installation according to the instructions. 5. After the test, unplug the power plug and store the product. Specification: Item Type: Signal Generator Material: ABS Model: PSG9080 Frequency range 87.5 108MHZ (70 90M, 100 120M available) Frequency step 0.1MHZ Frequency stability + 10ppm ( 10 degrees C+50 degrees C) Display LED Modulation FM Antenna impedance 50 Ohm Antenna interface BNC Q9 Output power 0.2W, 1W, 3W, 5W (50MW, 100MW, 200MW, 0.5W) Spurious and Harmonics

< 30dB Frequency deviation

less than + 75kHz Modulation sensitivity 0.75V Audio source CD, MP3, PC Microphone level 1 2mv Frequency response 150 15000Hz Distortion

less than 2percent (F=75KHz,f=1KHz) S N

more than 55dB Power voltage

DC(9V 13.8V) Working current < 1.2A . Package List: 1 x Signal Generator1 x Manual 3 x Connection Line
