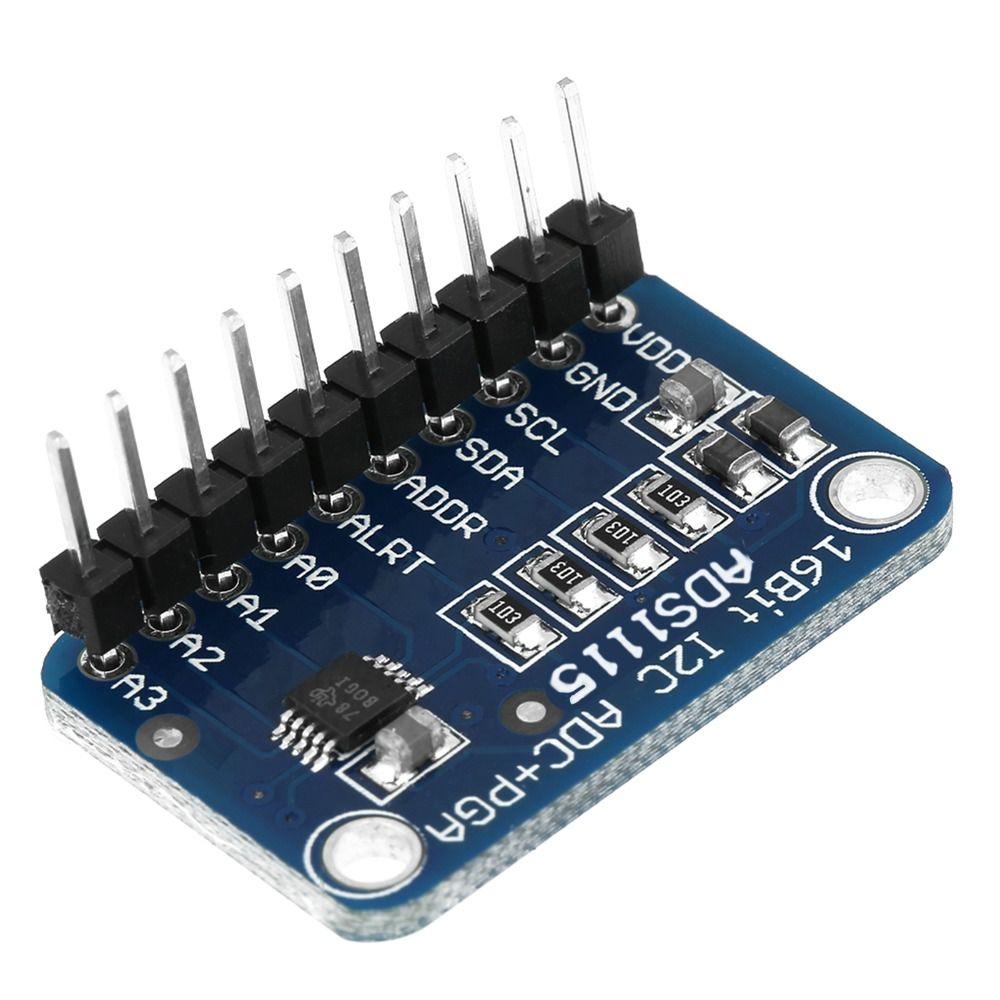

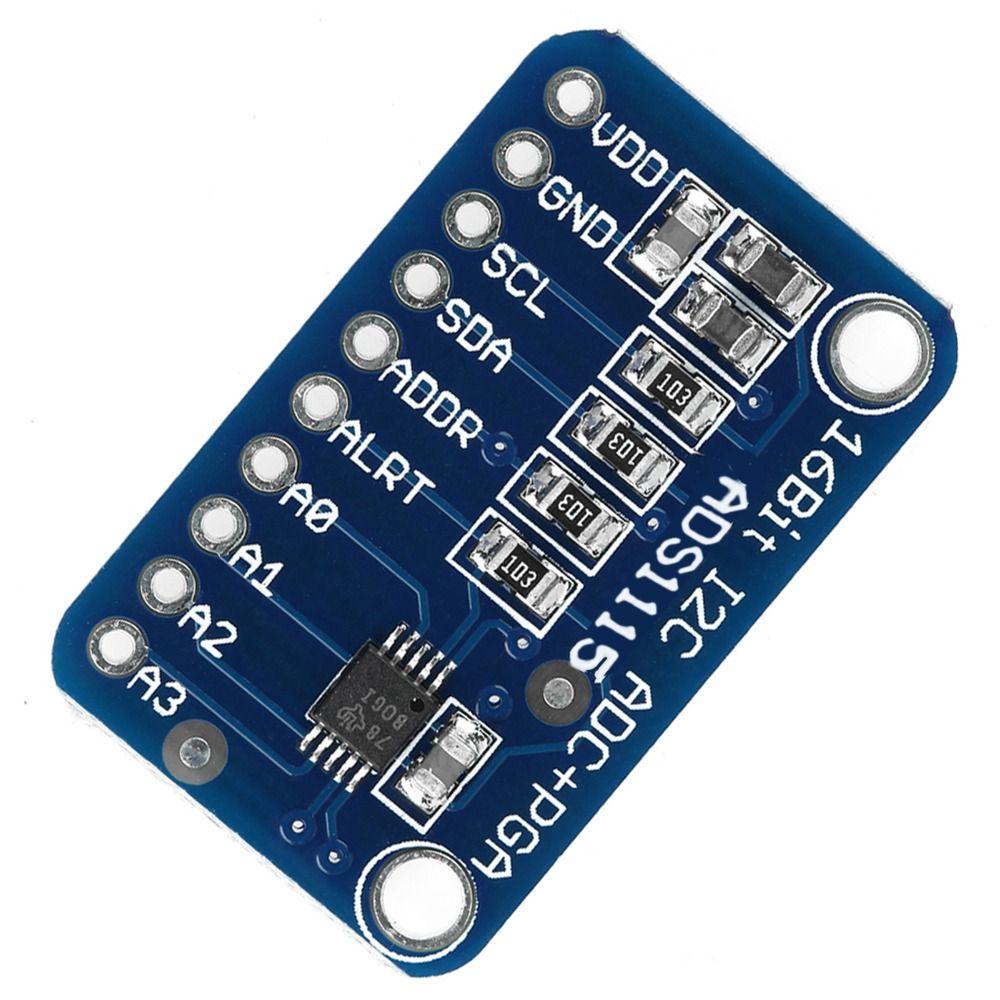

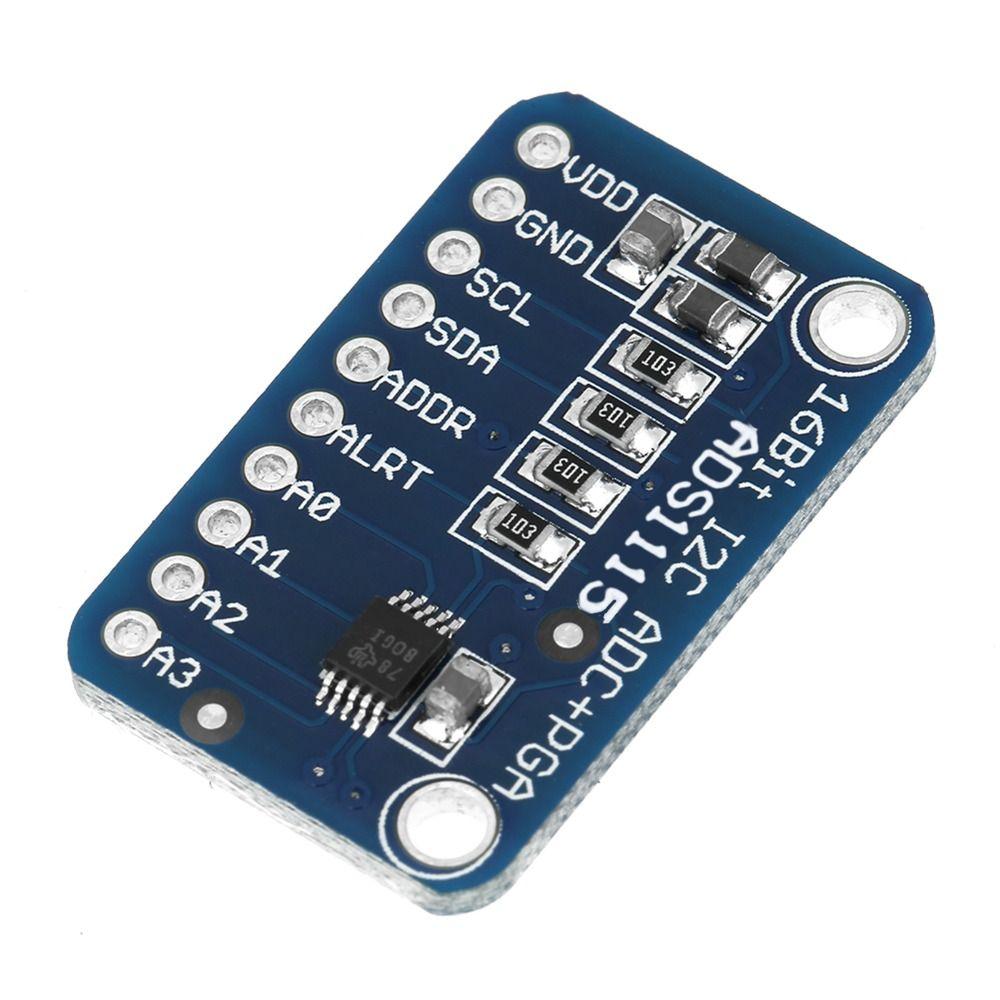

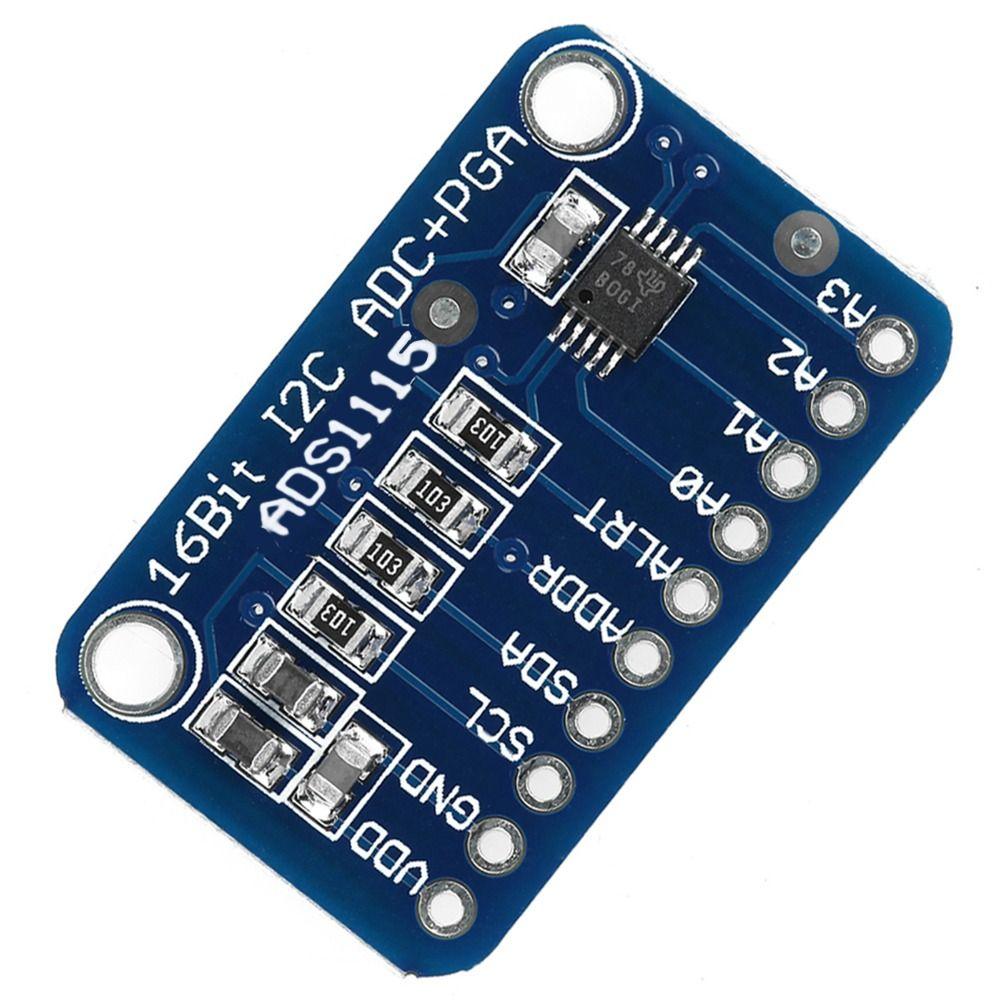

ADS1115 Analog To Digital Module 4 Input Channels 16Bit I2C Development Board Electronic Projects

Label:Yes 4,As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. 3,The chip can be configured as 4 single-ended input channels, or two differential channels. 5,The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options , so you can have up to 4 connected on a single 2-wire I2C bus for 16 single ended inputs. 1,We like this Analog-to-Digital Converter because it can run from 2V to 5.5V power/logic, can measure a large range of signals and its super easy to use. It is a great general purpose 16 bit converter. 2,For micro-controllers without an analog-to-digital converter or when you want a higher-precision Analog-to-Digital Converter, provides 16-bit precision at 860 samples/second over I2C.

Feature: Four single-ended or two differential inputs. Programmable comparator; internal low-drift voltage reference; internal oscillator; internal PGA. This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers.

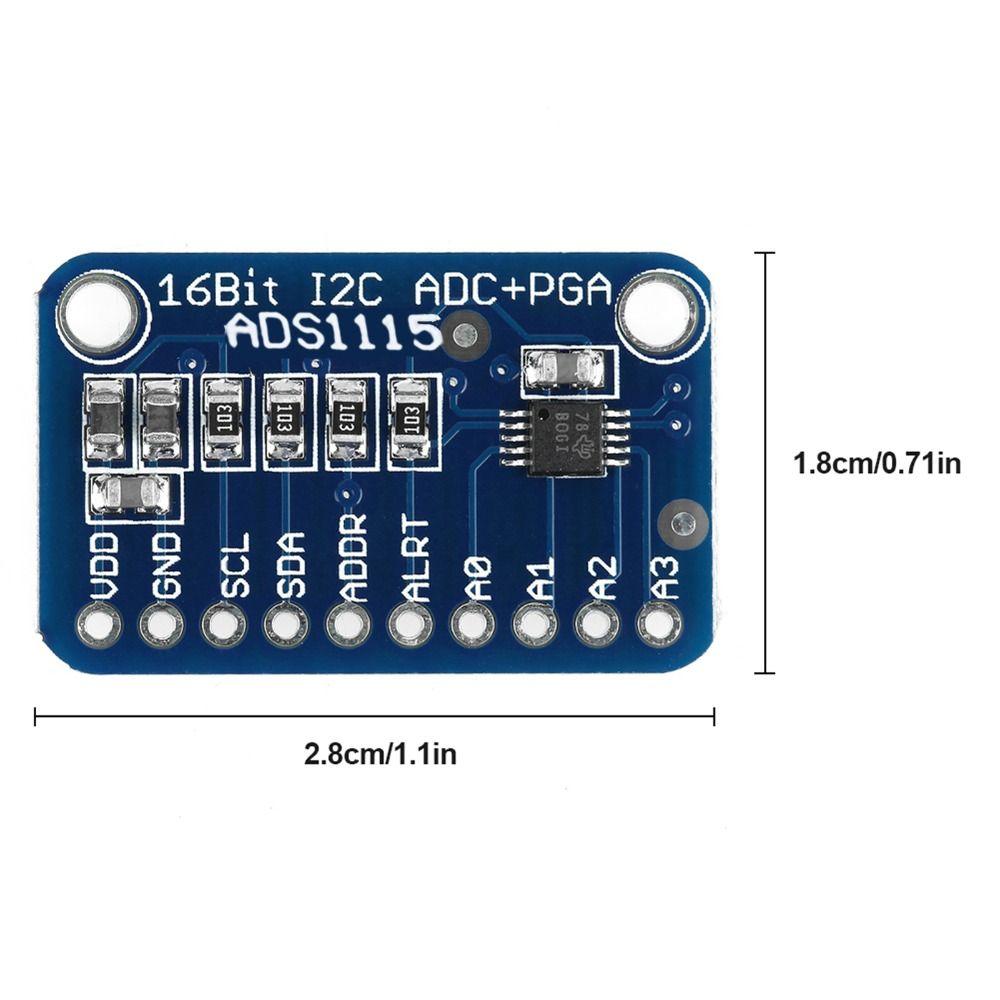

Specifications: Supply Range: 2.0v to 5.5v; Programmable Data Rate: 8sps to 860sps; I2C Interface: Pin-selectable addresses; Size:2.8*1.8cm/1.1*0.7in Weight: 5g

Low Current Consumption: Continuous Mode: Only 150uA Single-Shot Mode: Auto Shut-Down;

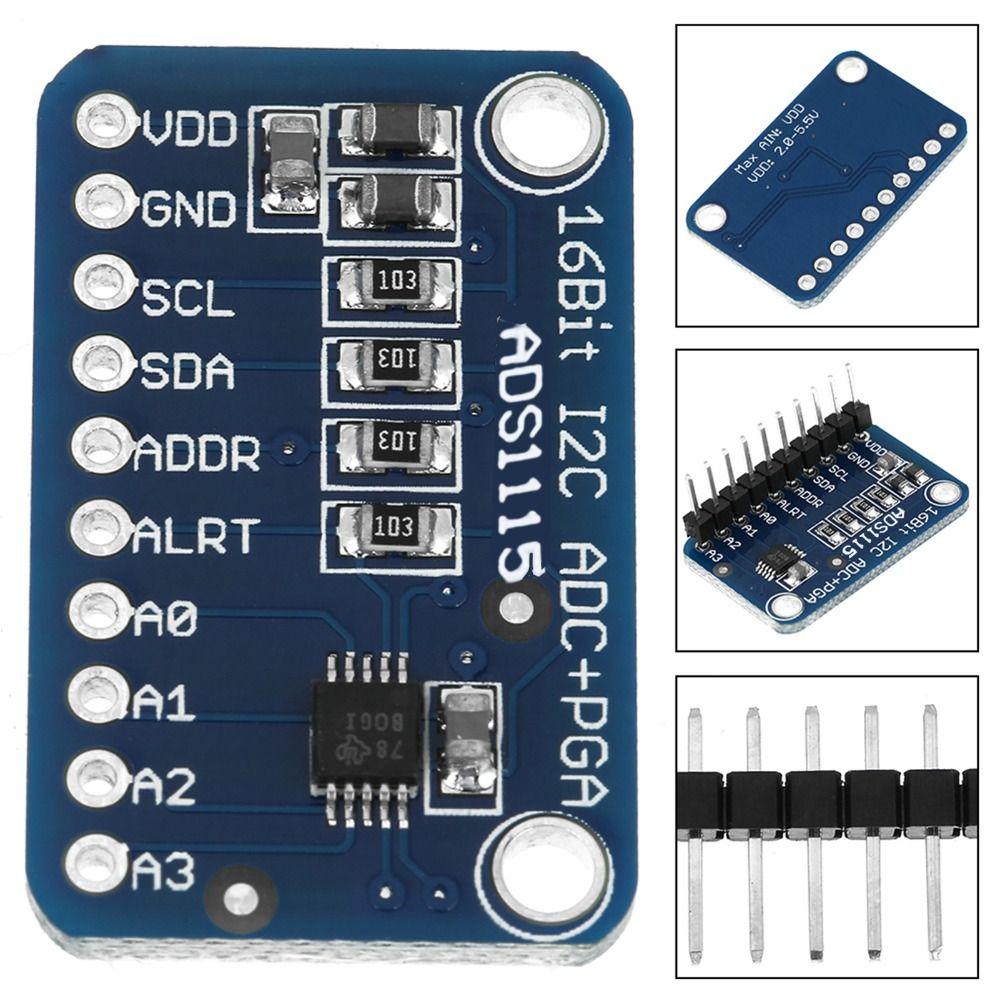

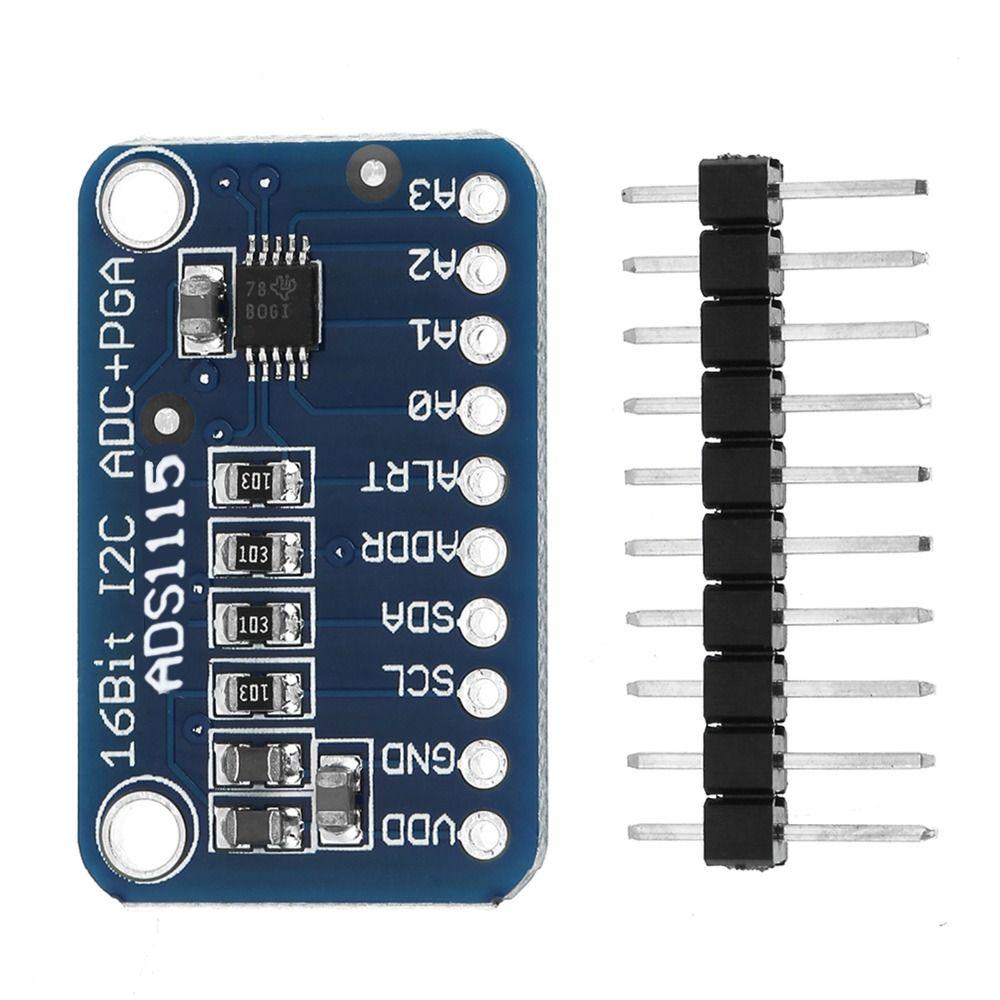

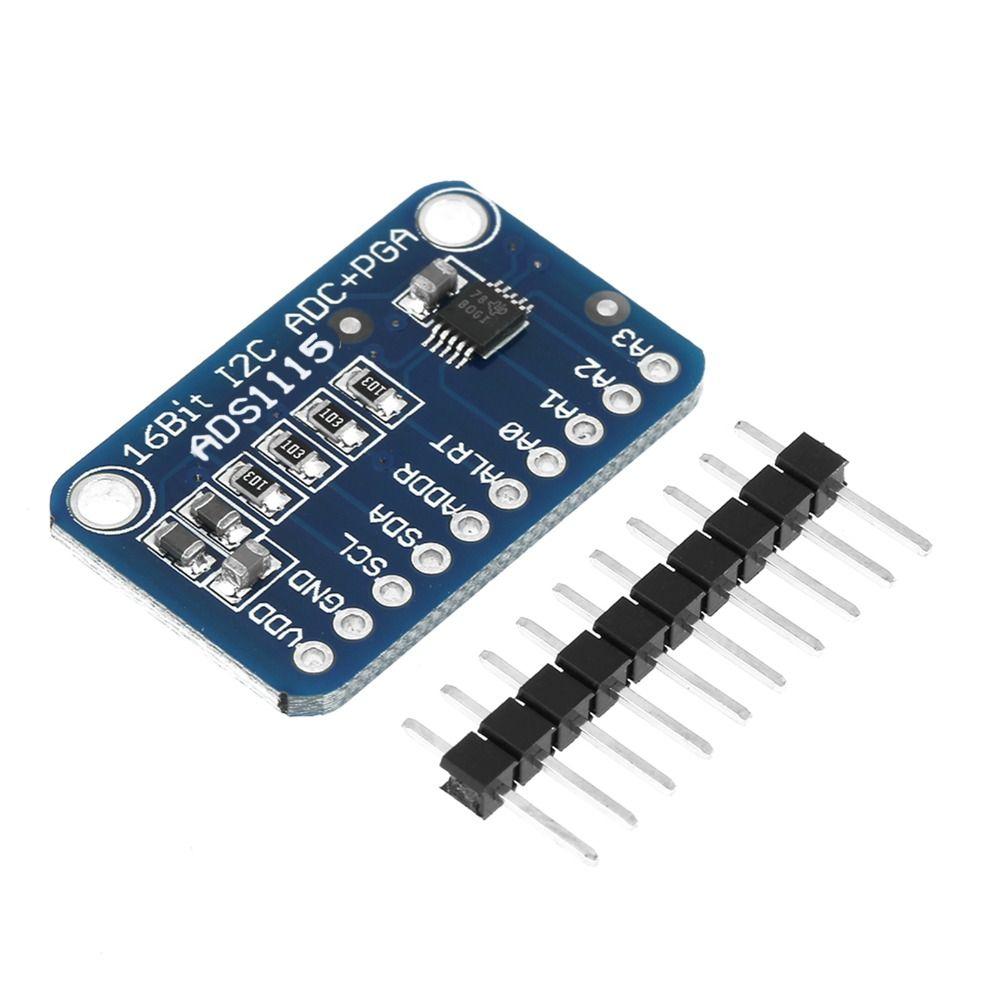

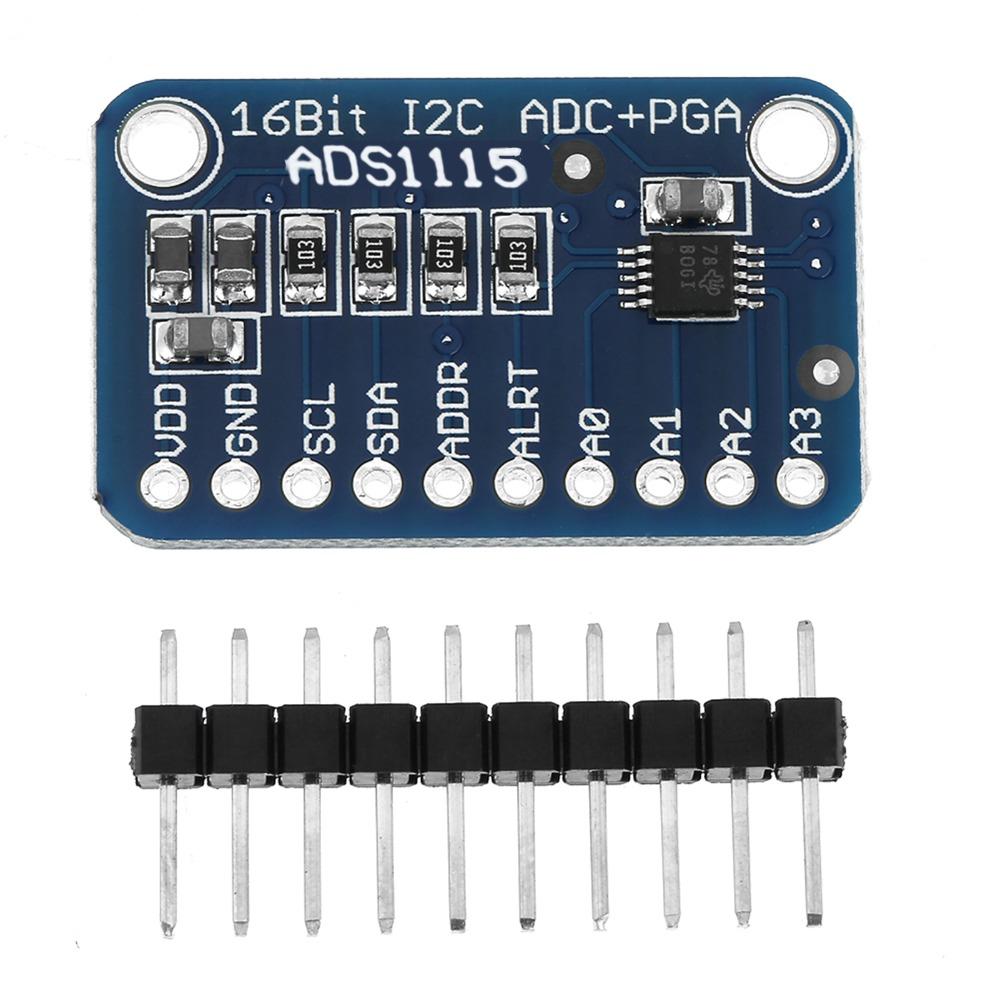

Package Includes: 1 xModule 1 x Pin Header
