Kratki Floki Left Fireplace Power 10 kW Outlet Ø200 BLACK TERMOTEC
Floki Steel Fireplace combines modern design and advanced combustion technology. The GLASS window enhances the space and provides a beautiful view of the flames. The TERMOTEC lining boosts efficiency and retains heat longer. The air supply system ensures uniform combustion and lower fuel consumption, making it an eco-friendly choice. SCHOTT ROBAX heat-resistant ceramic and high-quality steel guarantee durability and safety.
Floki M Air Fireplace - heats from 45 m² to 135 m²
Ecology
Ecoproject – Combusts wood efficiently, reducing fuel use and air pollution, helping the environment and reducing costs.
BImSchV 2 – Meets German environmental standards, emitting less smoke and harmful gases.
Heat recovery – Compatible with heat recovery systems, lowering heating costs and improving comfort.
The set includes:
Floki M 10kW Fireplace Insert Ø200 BLACK
Flex pipe Ø125 - 1 piece
Clamp - 4 pieces
Insulation tape - 1 piece
Steel pipe 200/0.5m - 1 piece
Steel pipe 200/1m - 1 piece
Adjustable steel elbow 200/90° - 1 piece
Ceramic chimney transition 200 - 1 piece
Floki fireplace base - 1 piece
Silicone 1200 - 1 piece
LUFT 9 x 80 - 1 piece (Black)
MAX adhesive for plates 4kg - 1 piece
K-84 adhesive - 4 pieces
Mounting dowel - 16 pieces
Insulation plate - 20 pieces
General
Fuel: seasoned hardwood (moisture ≤20%)
Nominal power: 10 kW
Heating power range: 4.5 - 13.5 kW
Material: steel
Thermal efficiency: 83%
Flue gas temperature: 240°C
Max log length: 50 cm
Required outlet area: ≥700 cm²
Required inlet area: ≥500 cm²
Glazing: Corner
Door opening: Left

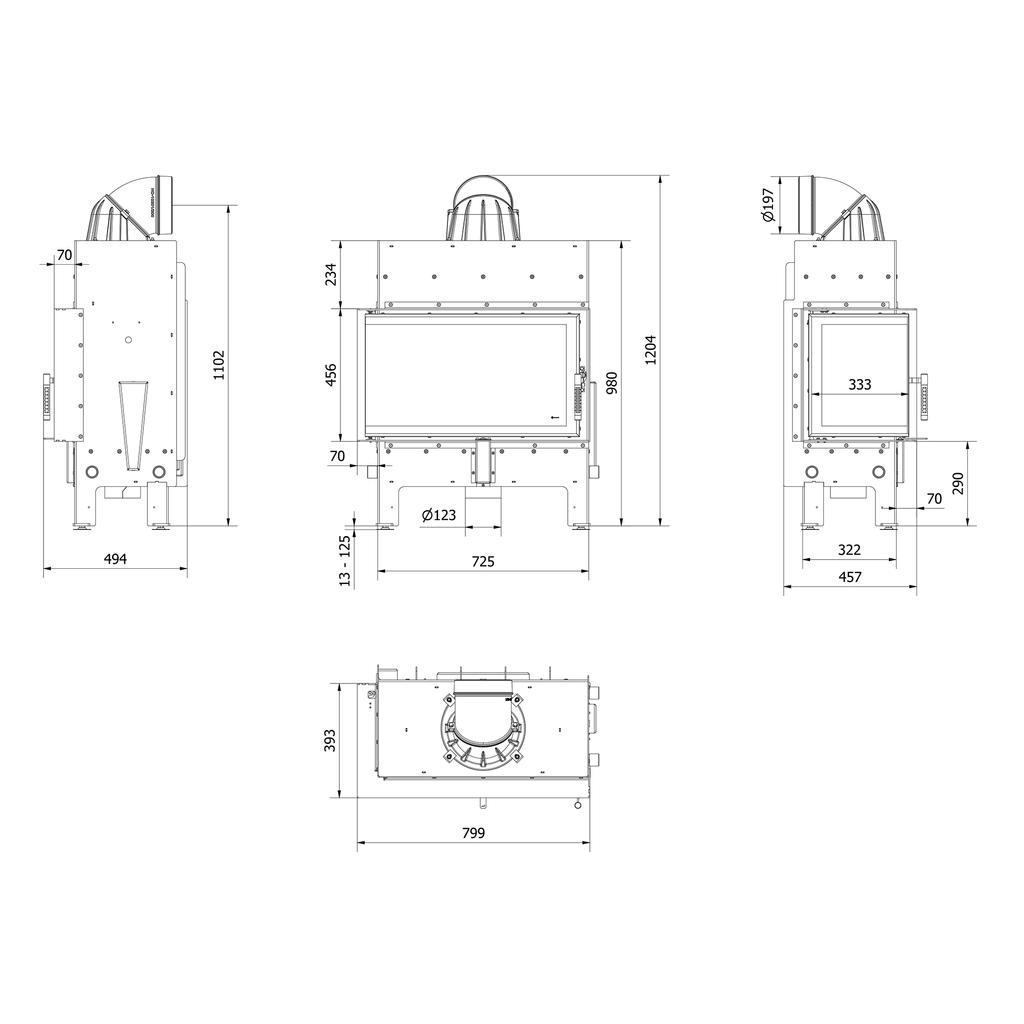

Physical parameters
Weight: 154.5 kg
Flue gas outlet diameter: 200 mm
Width: 79.9 cm
Height: 120.4 cm
Depth: 49.4 cm
Certificates/Compliance
Meets Ecoproject criteria: YES
Designed for heat recovery: YES
Complies with BImSchV 2 standard: YES
Energy Efficiency
Energy class: A+
CO emission: ≤ 0.09%
Dust emission: 28 mg/Nm³
Equipment
Air intake, combustion chamber lining, decorative glass door, BLACK TERMOTEC
Rotating flue outlet – Allows easy adjustment of the flue outlet position (360° rotation).
Removable grate – Provides easy access to the ash container.
TERMOTEC lining – Improves eco-friendly combustion and retains heat for longer.
Innovative handle – Perforated design prevents overheating, enhancing comfort.
Air intake regulation – Built-in damper for quiet, reliable air regulation.
Pipes for system connection – Meets safety standards for connection to existing chimney ducts.
Ventilation system – LUFT 45S grille with concealed air intake and seamless front design.
Plates for self-built enclosure – High-temperature resistant plates for building a fireplace enclosure.
Max adhesive – Ideal for mounting fireplace plates and other high-temperature applications.
Plate adhesive – Special adhesive for insulation plates and sealing ventilation channels.
Mounting dowel – For hard and soft insulation materials such as fiberglass and styrofoam.
