KRATKI FLOKI S 8 kW Insert Fireplace Ø160 Black
The Floki Steel Fireplace combines modern design with advanced combustion technology. The GLASS window visually enlarges the space, offering a beautiful view of the flames. The TERMOTEC lining of the combustion chamber increases combustion efficiency and retains heat for a longer period. The air supply system from the back and side ensures even combustion and lower fuel consumption. Thanks to this, Floki is an economical and ecological choice. Heat-resistant SCHOTT ROBAX ceramics and high-quality steel guarantee durability and safety. The fireplace minimizes the emission of harmful substances, protecting the environment. Floki is a stylish element of a modern interior and a reliable heat source.
Floki S Wood Fireplace - Heats from 35 m² to 110 m².
Ecodesign
Ecodesign is a European initiative aimed at improving energy efficiency and reducing pollutant emissions.
BImSchV 2
BImSchV 2 is a German law regulating air pollution control, covering requirements for fireplaces and stoves. Devices that meet BImSchV 2 standards must have low emissions of harmful dust and gases.
Heat Recovery
Heat recovery is the process of recovering heat from the exhaust air from the building and transferring it to the incoming air. Heat recovery can significantly reduce heating costs.

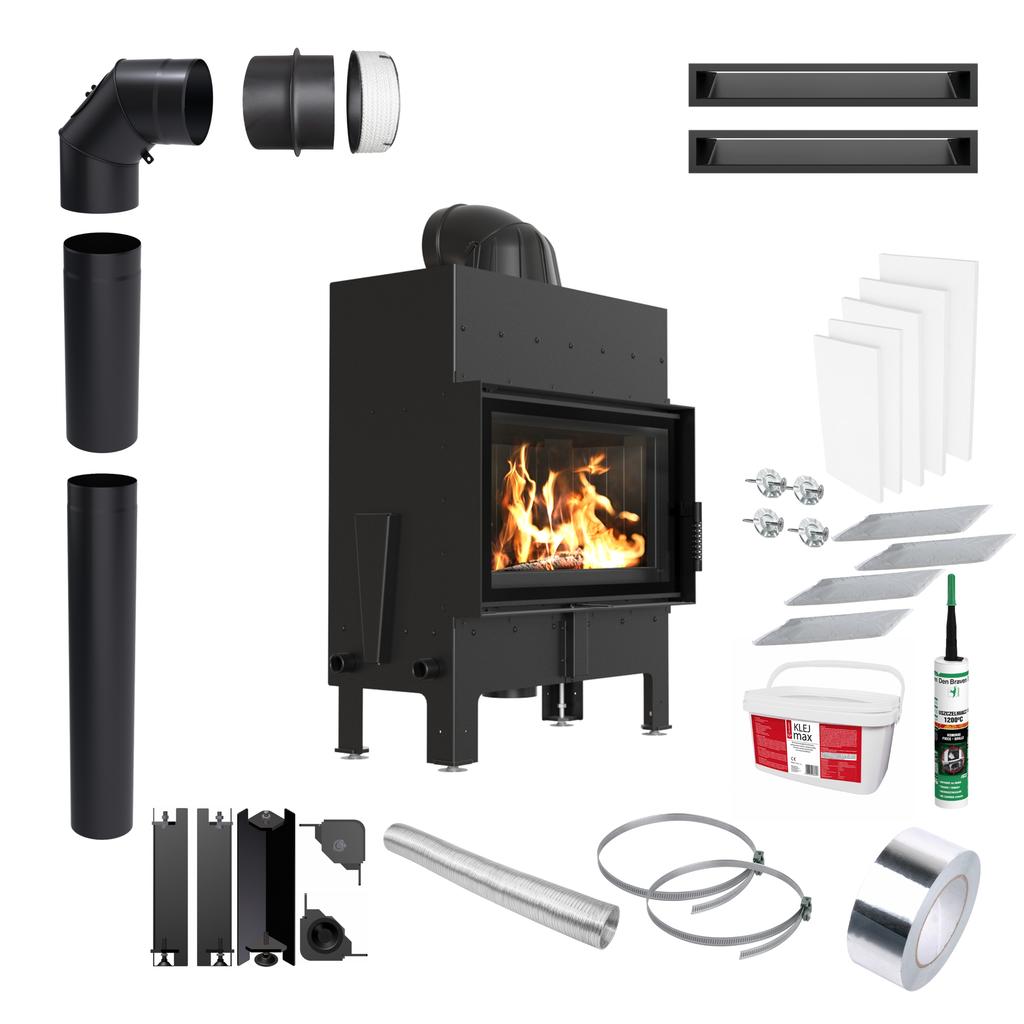

The Set Includes:
Floki S 8 kW Ø160 BLACK Fireplace Insert
Flex Pipe Ø125 - 1 piece
Worm Clamp - 4 pieces
Insulation Tape - 1 piece
Steel Pipe 200/0.5m x 1 piece
Steel Pipe 200/1m x 1 piece
Adjustable Steel Elbow 200/90° x 1 piece
Ceramic Chimney Adapter 200 x 1 piece
Floki Fireplace Base - 1 piece
Silicone 1200 - 1 piece
Luft 9 x 60 - 1 piece (Black)
Luft 9 x 60 SF - 1 piece (Black)
Max Glue for Plates 4kg - 1 piece
K-84 Glue - 4 pieces
Mounting Plug - 16 pieces
Insulation Plate - 20 pieces
General Information
Fuel Type: Seasoned hardwood (moisture ≤ 20%)
Nominal Power (kW): 8
Heating Power Range (kW): 3.5 - 11
Material: Steel
Thermal Efficiency (%): 80
Flue Gas Temperature (°C): 270
Max Log Length (cm): 40
Minimum Required Active Area of Outlet Grilles (cm²): ≥700
Minimum Required Active Area of Inlet Grilles (cm²): ≥500
Type of Glazing: Corner
Door Opening: Left
Physical Parameters
Weight (kg): 121.8
Flue Outlet Diameter (mm): 160
Width (cm): 65
Height (cm): 123.4
Depth (cm): 47.3
Certifications/Compliance
Meets Ecodesign Criteria: YES
Designed for Heat Recovery: YES
Complies with BImSchV 2 Standard: YES
Energy Efficiency
Energy Class: A
EEI Coefficient: 106
CO Emission (at 13% O2) ≤ stated in %: 0.08
Particle Emission (dust) (mg/Nm³): 19
Equipment
Air Supply
Combustion Chamber Lining
Decorative Glass Window
BLACK TERMOTEC
Technical Drawing
ROTATING FLUE OUTLET
Possibility to change the flue outlet orientation, making installation easier. The 360° adjustable setting allows connecting the flue outlet from the back or the top of the insert.
REMOVABLE GRATE
Allows access to the ash container, making it easier to keep the insert clean.
TERMOTEC LINING
The combustion chamber is lined with heat-accumulating TERMOTEC material, which increases the temperature inside the fireplace. This makes combustion more ecological, and the high temperature is maintained for a longer time.
INNOVATIVE HANDLE
A specially perforated handle design protects against overheating, contributing to a high level of comfort when using the fireplace.
BUILT-IN AIR SUPPLY REGULATION
The external air supply is regulated by an internal damper located below the door. The entire mechanism operates quietly and without failure within the fireplace.
PIPES FOR SYSTEM CONNECTION
Flue pipe for connecting wood-burning inserts to existing chimney flues. It meets all Polish and European standards, ensuring safety, maximum efficiency, and comfort.
Characteristics:
Sheet Thickness: 2 mm
Diameter: 160 mm
Temperature Resistance: 1000°C
Material: Steel Sheet
Coated with black heat-resistant paint
Plasma-welded
VENTILATION SYSTEM
The chimney grille serves as an aesthetic finish for channels that distribute warm air from the fireplace.
PLATES FOR DIY ENCLOSURE
Max Glue
Plate Adhesive
Mounting Plug
