KRATKI Air Fireplace FLOKI L Right 12 kW fi 200 Black
The Floki steel fireplace combines modern design with advanced combustion technology. The GLASS glass visually enlarges the space, providing a beautiful view. The TERMOTEC lining increases combustion efficiency and retains heat for a longer period. The air supply system from the back and sides ensures even combustion and lower fuel consumption. As a result, Floki is an economical and eco-friendly choice. The SCHOTT ROBAX heat-resistant ceramic and high-quality steel ensure durability and safety. The fireplace minimizes harmful emissions, taking care of the environment. Floki is a stylish element for modern interiors and a reliable heat source.
FLOKI L Wood Stove – heats from 100 m² to 160 m²
EcoDesign EcoDesign is a European initiative aimed at improving energy efficiency and reducing pollution emissions.
BImSchV 2 BImSchV 2 is a German regulation regarding air pollution control, covering requirements for fireplaces and stoves. Devices that meet BImSchV 2 standards must have low emissions of dust and harmful gases.
Heat Recovery Heat recovery is the process of recovering heat from the air expelled from the building and transferring it to the incoming air. This significantly reduces heating costs.

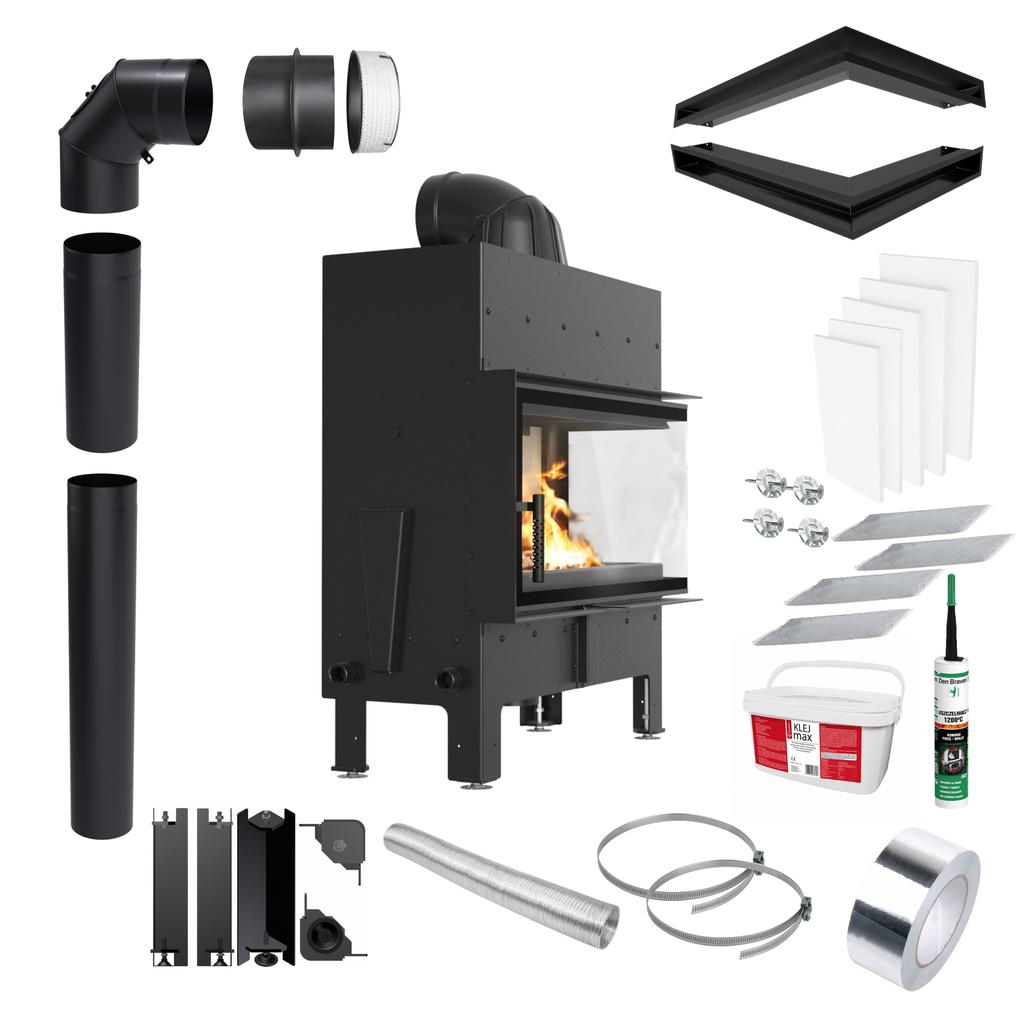

The set includes:
FLOKI L RIGHT 12 kW fi 200 BLACK Fireplace
Flex Pipe fi 125 - 1 pc
Clamps - 4 pcs
Insulation tape - 1 pc
Steel pipe 200/0.5m x 1 pc
Steel pipe 200/1m x 1 pc
Adjustable steel elbow 200/90° x 1 pc
Ceramic chimney transition 200 x 1 pc
Base for the FLOKI fireplace - 1 pc
Silicone 1200 - 1 pc
LUFT 9 x 80 x 40 - 1 pc (Black)
LUFT 9 x 80 x 40 SF - 1 pc (Black)
MAX glue for tiles 4kg - 1 pc
K-84 glue - 4 pcs
Mounting plug - 16 pcs
Insulation plate - 20 pcs
General
Fuel type: seasoned hardwood (moisture ≤20%)
Nominal power (kW): 10
Heating power range (kW): 4.5 - 13.5
Material: steel
Thermal efficiency (%): 83
Flue gas temperature (°C): 240
Max log length (cm): 50
Minimum required active area of outlet grilles (cm²): ≥700
Minimum required active area of inlet grilles (cm²): ≥500
Type of glazing: Corner
Door opening: Right

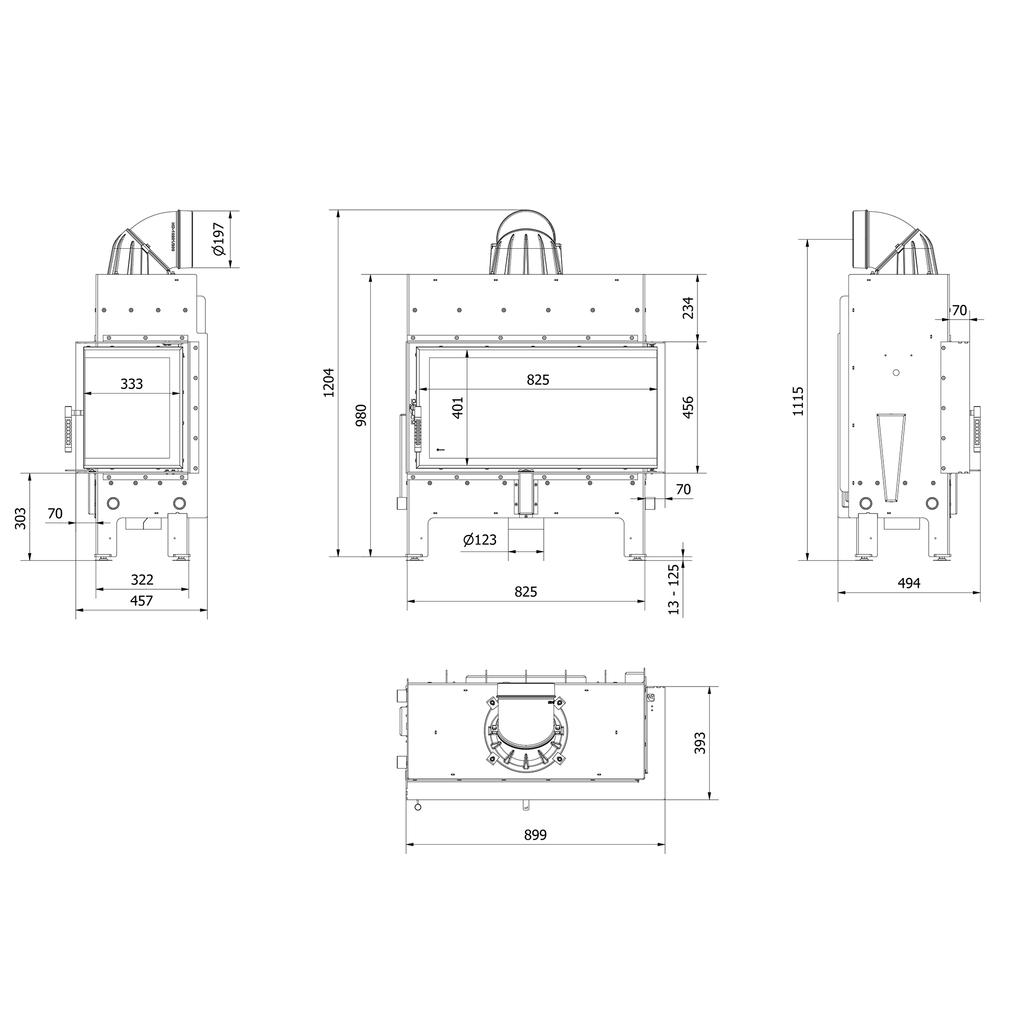

Physical Parameters
Weight (kg): 154.5
Flue gas outlet diameter (mm): 200
Width (cm): 79.9
Height (cm): 120.4
Depth (cm): 49.4
Certifications/Compliance
Meets EcoDesign criteria: YES
Intended for heat recovery: YES
Compliant with BImSchV 2 standard: YES
Energy Efficiency
Energy class: A +
EEI coefficient: 110.4
CO emission (at 13% O2) ≤ given in %: 0.09
Particulate emissions (mg/Nm³): 28
Equipment
Air inlet
Combustion chamber lining
Decorative glass type glass
BLACK TERMOTEC
ROTATABLE FLUE OUTLET
The flue outlet can be adjusted, making it easier to connect the insert. The 360° adjustable setting allows you to connect the flue outlet both from the back and from the top of the insert.
REMOVABLE GRATE
Provides access to the ash container, making it easier to maintain the insert.
TERMOTEC LINING
The combustion chamber is lined with TERMOTEC heat-accumulating material, which increases the temperature inside the fireplace.
INNOVATIVE HANDLE
The specially perforated handle design prevents excessive heating.
BUILT-IN AIR INLET REGULATION
The external air supply is regulated through a built-in damper located below the door.
PIPES FOR SYSTEM CONNECTION
The flue pipe is designed for connecting wood-burning inserts to existing chimney systems.
VENTILATION SYSTEM
The fireplace grille provides an aesthetic finish to the channels that distribute warm air from the fireplace.
PLATES FOR DIY ENCLOSURE
The set includes heat-resistant plates, which you can easily use to build an enclosure around the fireplace.
Max Glue
An ideal solution for securing the IZOL fireplace plate.
Glue for plates
Special glue for plates, intended for fire protection and high-temperature technology applications.
