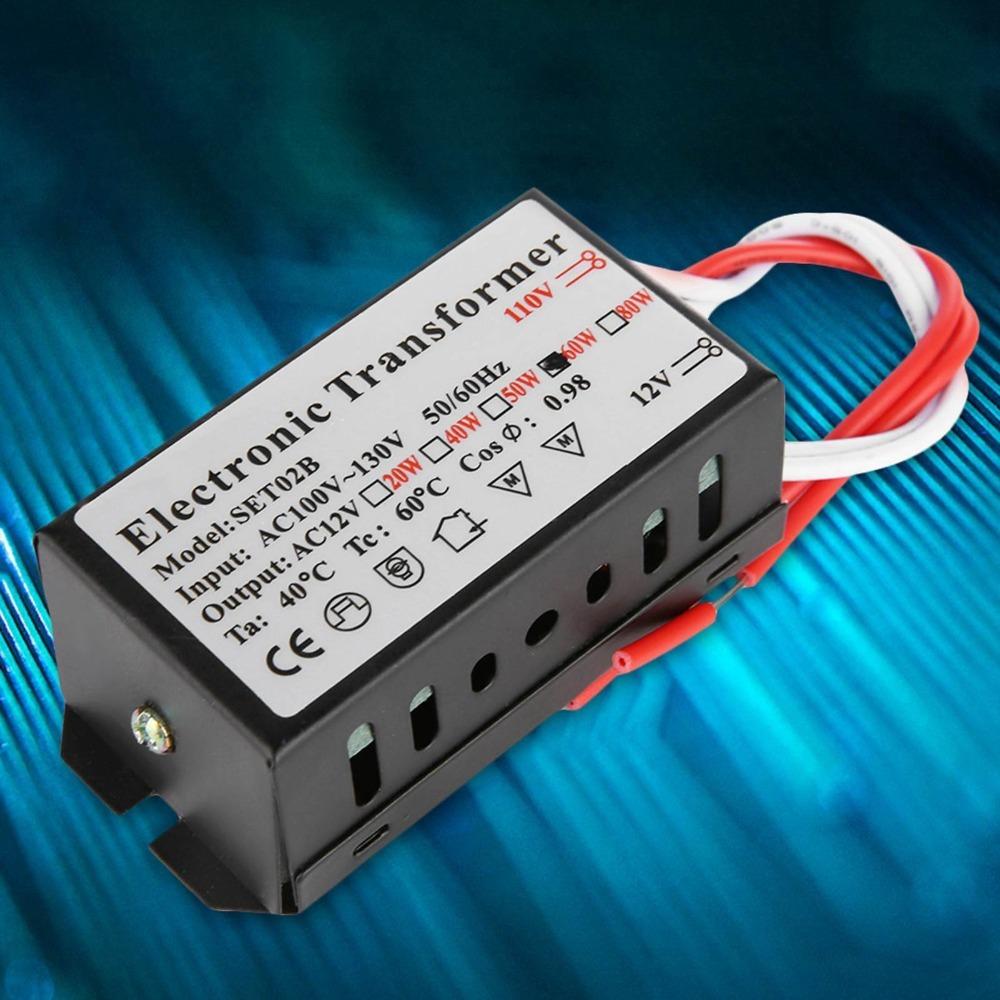

60W / 120W Voltage Converter 110V To 12V Power Supply Driver Economic Low Voltage Adapter Halogen

Label:Yes 20-60W REQUIRED LOAD: The total connected lamp load must be between 20W and 60W. Loads below 20W, such as a single 15W lamp, may not start, may flicker, or may not operate properly. Do not exceed the 60W maximum load. INDOOR DRY-LOCATION USE: This transformer is not waterproof. Install it in a dry, well-ventilated indoor location away from water, excessive heat, and tightly enclosed spaces. Professional installation by a qualified electrician is recommended. 100-130V to 12V AC Electronic Transformer, 60W, 20-60W Load Range, for 12V G4 Halogen Bulbs, Indoor Use Only

SIMPLE WIRING IDENTIFICATION: The red wires are the AC input wires, and the white wires are the 12V AC output wires. Disconnect the power supply before wiring and carefully verify the input and output connections before use. 12V AC OUTPUT, NOT DC: Converts 100-130V AC input to 12V AC output. Please confirm that your lamp requires 12V AC before ordering. This electronic transformer cannot power lamps or equipment that require a 12V DC power supply. FOR G4 HALOGEN BULBS: Designed for compatible 12V G4 halogen and quartz lamps. Not suitable for LED lights, pool lights, landscape lighting systems, automotive or motorcycle lights, or other DC-powered equipment.

Specification: Size: Approx. 9 x 4.5 x 2.5cm/3.54 x 1.77 x 0.98in Power: 60W, 120W(Optional) Input line (red wire) IN: 100V - 130V 50/60Hz Output lines (gray wire and white wire) OUT: AC12V Adaptation range: low voltage lamp--20W Lamp beads 8pcs can be used, more than 5pcs need to use a higher wattage transformer to be able to withstand. Selection method of electronic transformer: 1. Choose the same transformer power according to the original lamp; 2. Choose according to the total power of the total number of lamps.(For example, if a luminaire has 5 lamp beads of 20W or 10 lamp beads of 10W, the total wattage of the lamp beads is 100W, and a 105W transformer should be selected. If an 80W transformer is selected, the transformer will burn out. It is better to purchase a transformer with a power that is 5 - 20W greater than the total wattage of the lamp beads of the luminaire. In this way, the service life of both the transformer and the lamp beads can be extended, and the brightness of the lamp beads will be higher. Note: If the power is too large, the lamp beads will be dim instead. )

Package List: 1 x Electronic Transformer

Note: 1.The product is only suitable for 12V G4 halogen lamps, can not be used in car lights, motorcycle lights as other purposes. 2.. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 3.. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
