Label:Yes
4. Compact and Lightweight Design:The unit features a small, lightweight form factor, allowing for easy and space-efficient installation.
2. Stable and Quiet Performance:Full power, large allowance, stable output voltage, no noise.
3. Compatible with Dimming & Control Systems:Designed to work with dimming, zoning, and remote-control setups for flexible lighting and device management.
5. Optimized Circuit Design:An optimized internal circuit layout aims to deliver consistent power and support versatile application requirements.

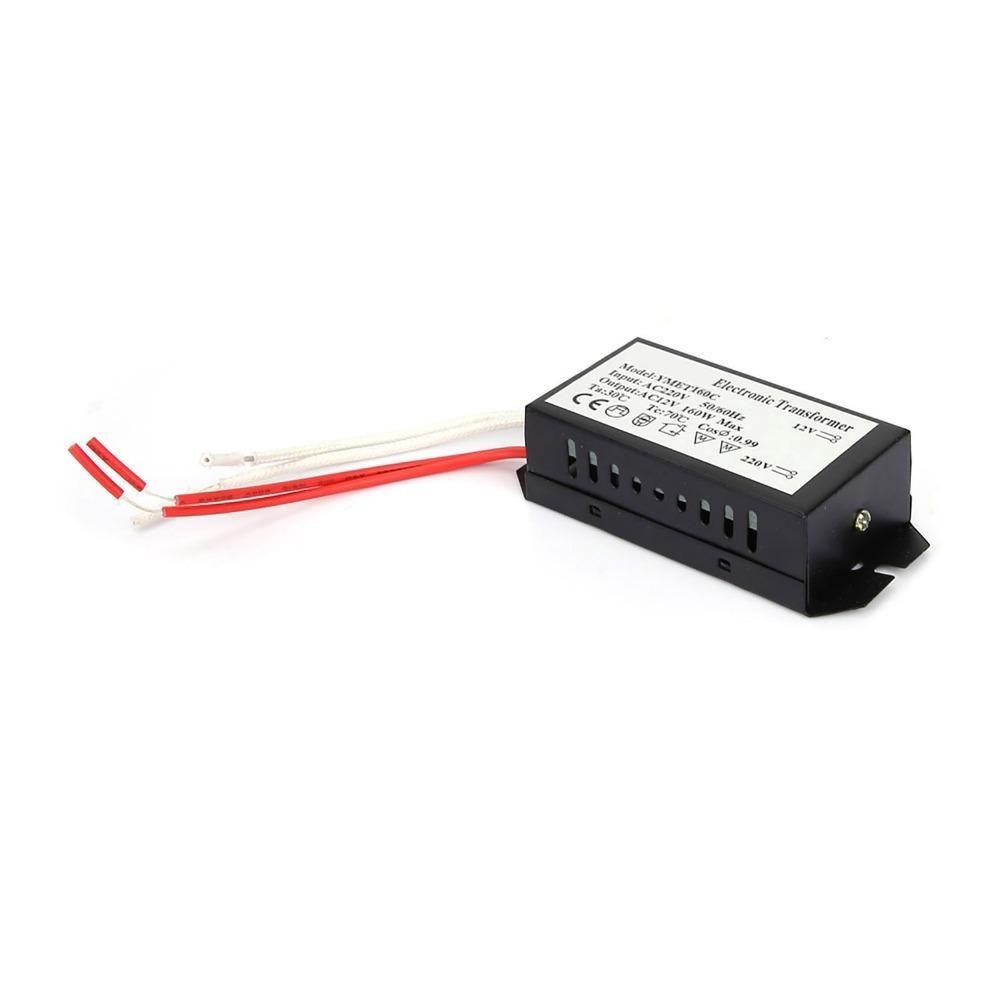

1. Efficient 220V to 12V Conversion:This power supply converts 220V AC input to a stable 12V DC output, designed to provide reliable power for compatible low-voltage devices.
Specification:
Input voltage: 220-240V
Output voltage: 12V
Power: 60W, 120W, 160W(Optional)
Weight: 35-83g/1.2-2.9oz
Size: 7.3 * 4.2 * 2.45cm(2.87 * 1.65 * 0.96in)
Color: Black
Support functions: dimming/segmentation/remote control.
Input line: Red line
Output lines: gray and white lines
Scope of application: Low voltage lighting fixtures -11 beads of 20w can be used, and higher wattage transformer are required to withstand more than 5 beads
Package List:
1 x Electronic Transformer
Purchasing Method for Electronic Transformer:
1.Select an electronic transformer with the same power rating as the original one for the luminaire. (e.g., a 160W transformer is required if the original one is 160W)
2.Select the transformer based on the total power of all lamp heads of the luminaire. (e.g., if the luminaire is equipped with 5 LED beads of 20W each or 10 LED beads of 10W each, the total power of the beads is 100W, and a 105W transformer is the ideal choice; a lower-wattage transformer like 80W will burn out. It is recommended to choose a transformer with a power rating 5-20W higher than the total power of the luminaire's beads. This can extend the service life of both the transformer and the beads, and also make the beads brighter. Note: An excessively high-wattage transformer will instead dim the beads! A 5-20W higher power rating is the optimal choice.
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
