ELP 4K 30FPS USB HDMI USB Camera Manual Zoom Webcam Variable Focus PC Camera Computer Mini Camera Telescope USB Security Camera 8mp IMX415 Industrial

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

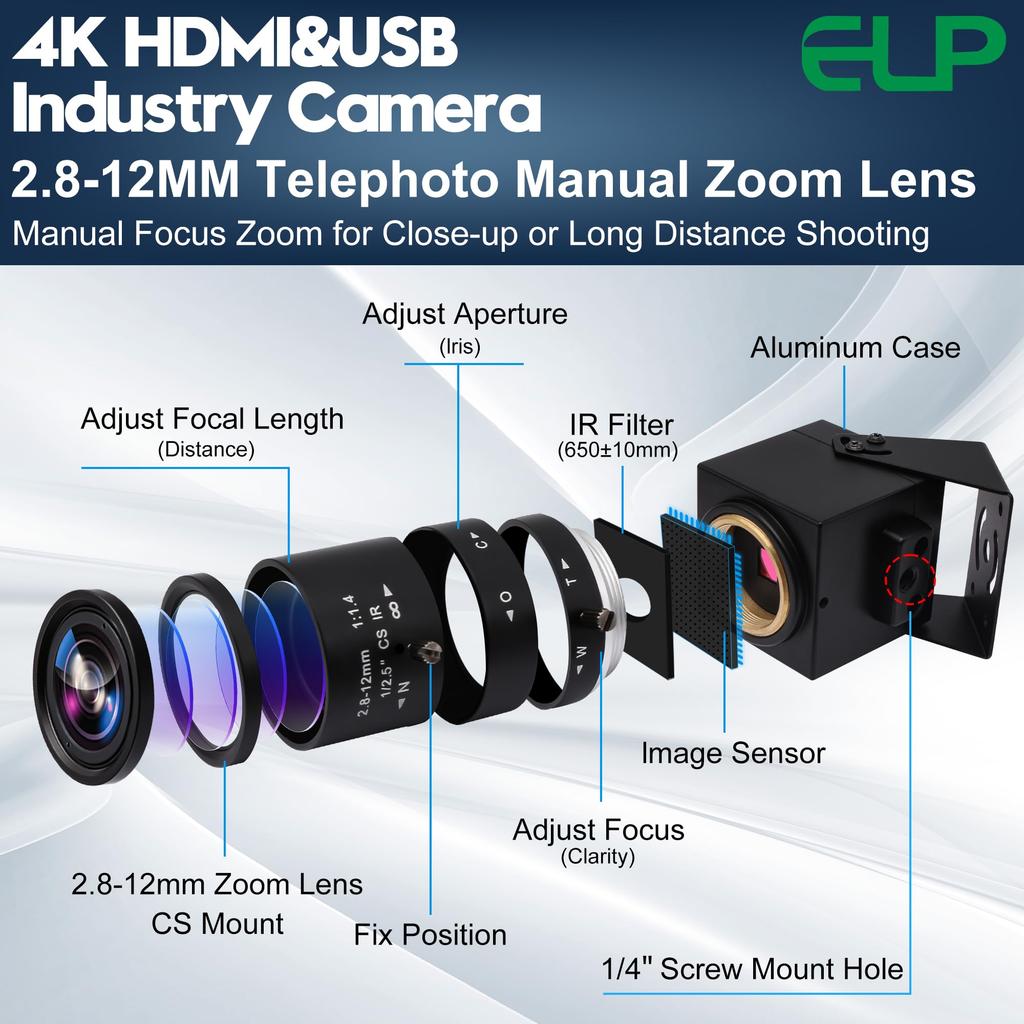

4K USB & HDMI manual zoom camera, USB Type-C power supply, simultaneous Type-C & HDMI display. A 2.8-12mm variable focus camera for all kinds of distance photography; zoom, brightness, and sharpness can be adjusted by rotating the lens. Ultra-clear, maximum resolution: 3840(H) * 2160(V), high-speed 2160P@30fps. High-quality 1/2.8-inch IMX415 sensor image sensor. H.264/MJPEG/YUY2 compression format is optional. Model ELP-USB4KCAM01H-CFV Sensor: 1/2.8 inch SONY IMX415 Maximum resolution 3840(H)*2160(V) Default resolution: 3840(H)*2160(V) Sensitivity 0.65V/lux-sec@550nm Pixel size: 1.45µm x 1.45µm Video compression: MJPEG / YUY2 (YUYV) / H.264 / H.265 Digital Zoom 2x Digital Zoom Resolution and frame rate: 3840x2160 MJPEG 30fps / H.264 30fps / H.265 30fps 2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps 1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps 1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps 1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps 640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps Image processing time: Approximately 8 seconds after opening the preview software. Center resolution 1000 LW/PH (center) S/N ratio 30 dB Minimum illuminance 0.2 Lux Shutter type: Electronic rolling shutter/frame exposure Connection port type: USB 2.0 interface & HDMI V 1.4 interface AEC Support AWB Support AGC Support Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, white Balance, backlight compensation, exposure Lens parameters: CS 5-50mm lens (CS 2.8-12mm option) Power and Interface: USB Type-C power, simultaneous display via Type-C and HDMI. Operating voltage: DC 5V Operating current 480-500mA Storage temperature -20°C to 80°C Operating temperature -10°C to 70°C Two USB cables (One 1.2m cable with Type-C port, one 1.5m cable with HDMI port) Operating system request Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android 5.x or later
