Ultra-low light camera with a minimum illumination of 0.01 lux: This ultra-low light USB camera operates even in low-light conditions, capturing sharp, clear images and accurate colors even in dark places, making it ideal for live streaming and security surveillance systems.
Full HD 1080P USB Camera: This FHD 1080P USB camera supports the H.264 compression format, saving more storage space. Maximum resolution: 1920(H) x 1080(V), high frame rate 30fps. Ideal for high-level video systems for personal or industrial use.

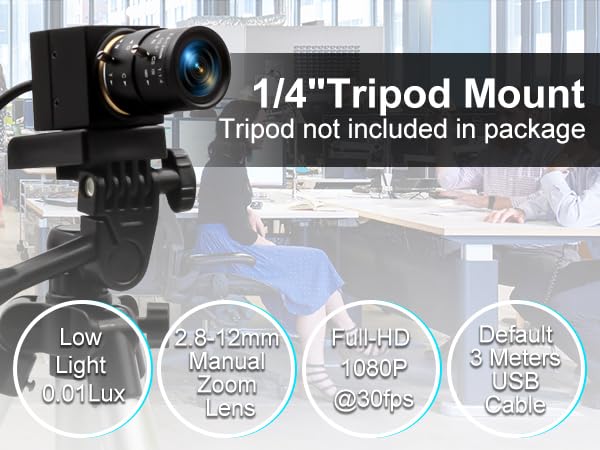

2.8-12mm Varifocal Lens: A 2MP USB webcam with a 2.8-12mm variable focus lens, simple zoom, and manual focus capabilities. Enjoy HD capture in various views, whether focusing on close-ups or long-range shots with a wide angle. Manual adjustment of focal length, focus, and exposure provides creative control. With CS mount lenses, it can also be with other devices such as microscopes.
Super CMOS IMX323 Sensor & IR Cut Filter: Equipped with a 1/2.9-inch CMOS IMX323 sensor and an IR cut filter @650nm, this FHD 1080P USB webcam delivers true-to-color HD image and video capture, preserving image purity and high saturation.
Plug and Play, No Driver Required: The ELP 2 Megapixel USB camera uses a standard USB connection and comes with a 3-meter cable and aluminum case. The UVC camera is plug and play; no driver downloads or installations are required. It's compatible with Windows, Linux, Mac, and Android systems and works with most social/video/monitoring software. Supports OTG protocol.
Sensor: SONY IMX323
Lens size: 1/2.9 inches
Pixel size: 12.8 x 11.6 mm
Image area: 2000 (H) x 1121 (V) pixels, 2.24 megapixels
Maximum resolution: 1080P
Compression format: H.264 / MJPEG / YUV2 (YUYV)
Resolution and frame
H.264320X240@ 30fps /352X288@ 30fps /
640X360@ 30fps /640X480@ 30fps /
800X600@ 30fps/1280X720@ 30fps/
1920x1080@30fps
MJPEG320X240@ 30fps /352X288@ 30fps /
640X360@ 30fps /640X480@ 30fps /
800X600@ 30fps/1280X720@ 30fps/
1920x1080@30fps
YUV2320X240@ 30fps /352X288@ 30fps /
640X360@ 30fps /640X480@ 30fps /
800x600 @ 15 fps
S/N ratio: 42dB
Dynamic range: 86dB
Sensitivity: 5.0V/lux-sec@550nm
Mini lighting: 0.01 lux
Shutter type: Electronic rolling shutter / Frame exposure
Connection port type: USB 2.0 high speed
Free drive: Protocol USB Video Class UVC
Supported OTG protocol: USB2.0 OTG
AEC / AEB / AGC: Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Power supply: DC 5V
Operating system requirements: Win7, Win8, Linux 2.6 or later, Android 4.0 or later
