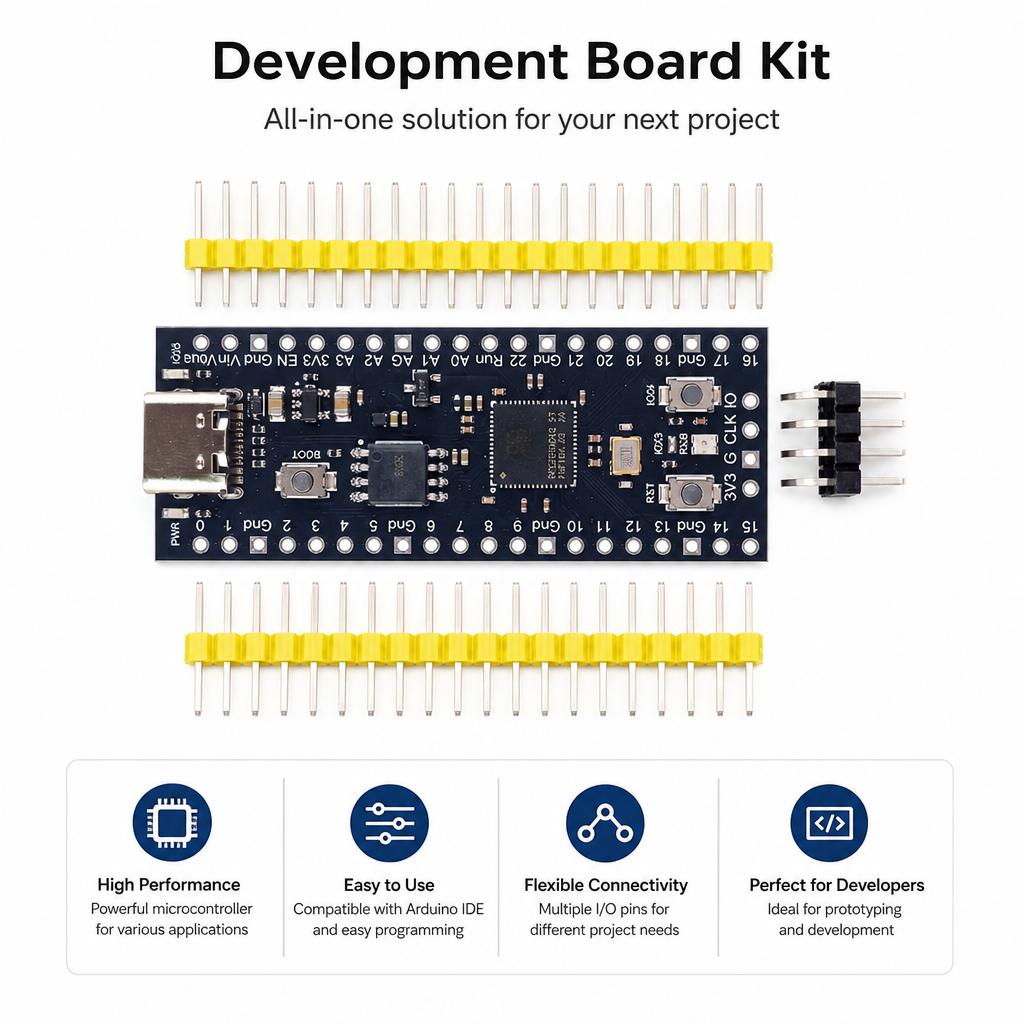

RP2350A Core Development Board 128Mbit 16MB Dual Core Processor with Pin Headers for Raspberry Pi Pico

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Shape : others Electronic : No Size : As Description Type : As Description Model Number : RP2350A DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Output Voltage : As Description Style : As Description Certification : NONE Condition : New Key Word -1 : RP2350A Key Word : for Raspberry Pi Pico Dropship : Support

RP2350A Core Development Board 128Mbit 16MB Dual Core Processor with Pin Headers for Raspberry Pi Pico Features:

1. Dual-architecture dual-core processor with a maximum clock speed of 150MHz and 520KB of on-chip SRAM.

2. Equipped with programmable I/O, comprehensive peripheral interfaces, and flexible and powerful hardware expansion capabilities.

3. Supports up to 16MB of external QSPI flash memory, allowing for d storage options and greater flexibility.

4. Supports multiple low-power modes, suitable for extended battery-powered device operation.

5. Supports both host and device applications, making it easy for beginners to get started.

Product Introduction: The RP2350 is a high-performance, secure, low-cost, and easy-to-use microcontroller. It features a large on-chip memory, a symmetric dual-core processor, a deterministic bus architecture, and a rich set of peripherals. Equipped with our unique programmable I/O (PIO) subsystem, it provides unparalleled power and flexibility for professional users. The RP2350 comes with detailed documentation, a complete MicroPython port, and a UF2 bootloader in ROM, providing a low barrier to entry for beginners and hobbyists. The RP2350 is a stateless device that supports in-situ execution with external QSPI memory caching. This design allows you to choose the appropriate density of non-volatile memory for your application. Manufactured using a modern 40nm process node, the RP2350 features high performance, low dynamic power consumption, and low leakage, and offers multiple low-power modes to support extended battery-powered operation.

Key Features: Dual Cortex-M33 or Hazard3 processors, up to 150MHz 520KB multiple high-performance SRAMs Up to 16MB of off-chip flash memory via a dedicated QSPI bus DMA controller Fully connected AHB crossbar switch On-chip programmable LDO for core voltage generation Two on-chip PLLs for generating USB and core clocks 30 GPIO pins, four of which can be used as analog inputs Two UARTs Two SPI controllers Two I2C controllers 24 PWM channels USB 1.1 controller and PHY for host and device support Three programmable I/O (PIO) blocks with a total of 12 state machines

Security: The RP2350 features a comprehensive security architecture built around Arm TrustZone for Cortex-M, including: Support for signed boot 8KB on-chip anti-fuse one-time programmable (OTP) memory SHA-256 Accelerated Hardware True Random Number Generator (TRNG) Architecture Switching: The RP2350 includes a pair of open hardware Hazard3 RISC-V cores that can replace the Cortex-M33 core at boot. Our boot ROM can even automatically detect the architecture of a built-in second-stage binary and reboot the chip into the appropriate mode. All of the chip's functionality is available in RISC-V mode, except for a few security features and a double-precision floating-point accelerator.

Product List: 1X Development Board 3X Pin Headers label:yes
