RP2350-USB-C Mini Development Board Dual Type-C Dual Core Microcontroller with ARM RISC-V Switch for IoT DIY Projects

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Material : Plastic Electronic : No Size : Development Board Type : Development Board Model Number : Development Board DIY Supplies : Electrical Brand Name : Aideepen Style : Development Board Output Voltage : Development Board Origin : Mainland China Certification : NONE

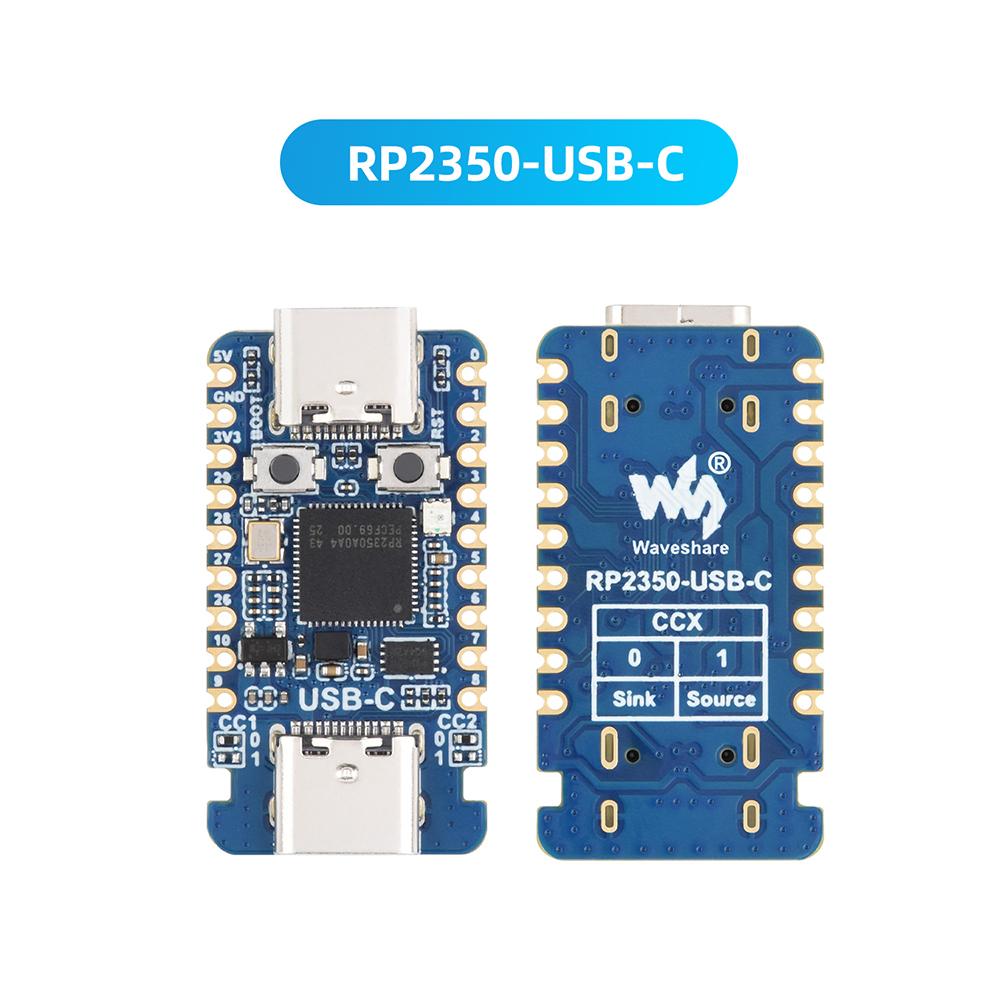

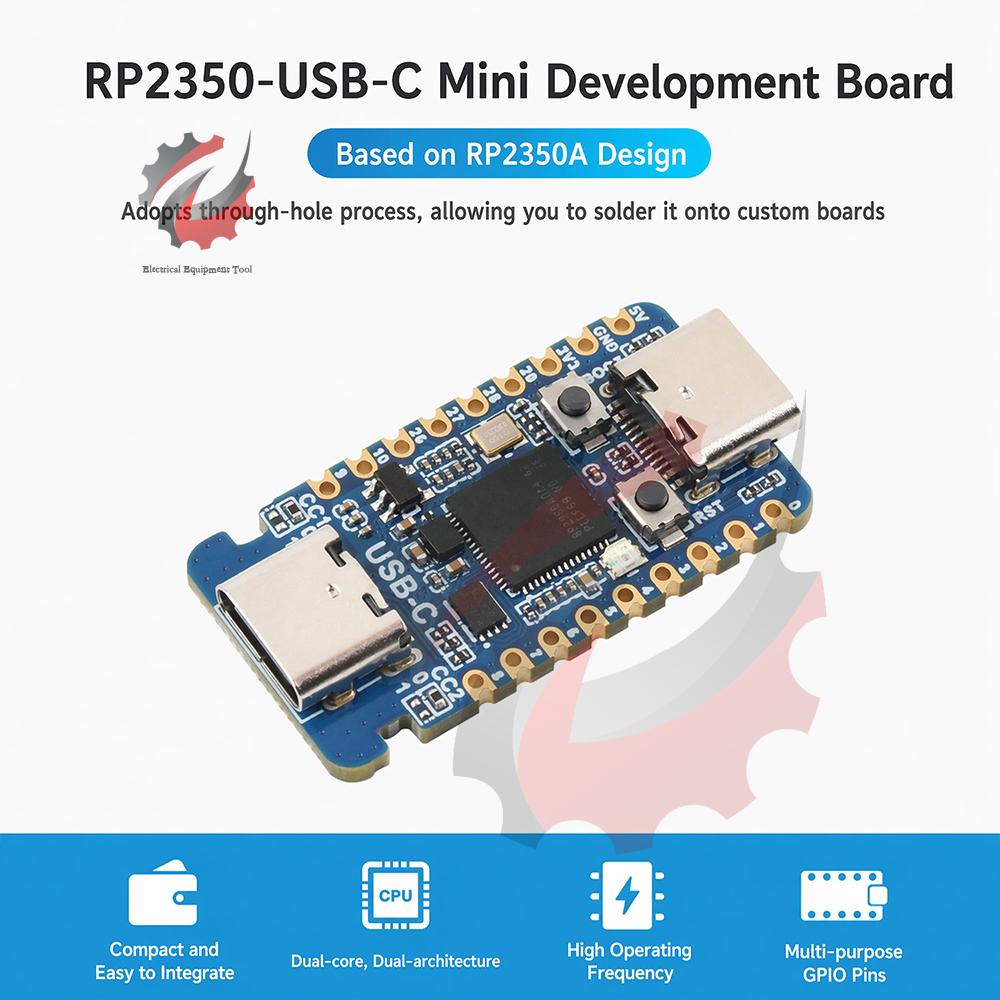

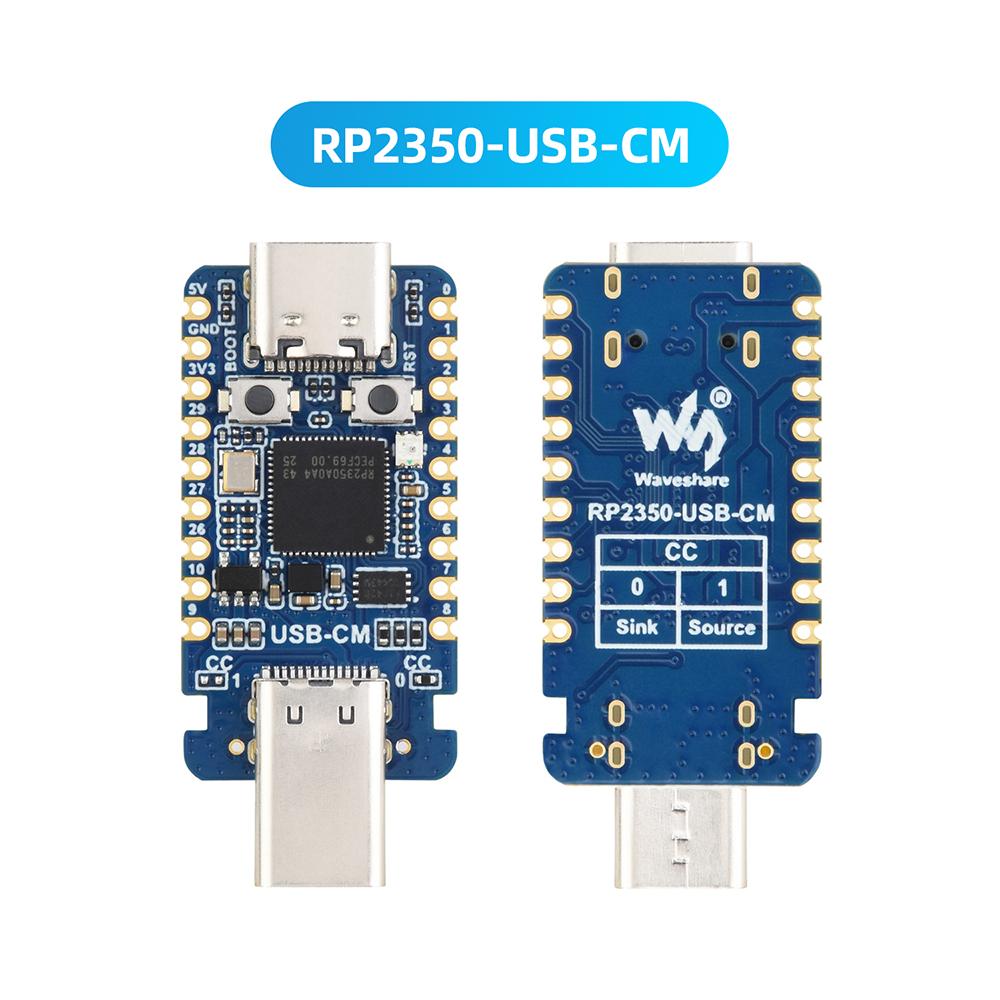

RP2350-USB-C Female/male Product Features: 1. Equipped with RP2350A dual core dual architecture chip, 150MHz main frequency, ARM/RISC-V architecture for free switching 2. Stamp hole half hole mini board type, dual Type-C, supports bidirectional switching of power supply from USB host to slave 3. Built in 520KB SRAM+2MB flash memory, equipped with 15 GPIO ports and SPI/I2C/UART/ADC/PIO peripherals 4. Supports low-power sleep mode, drag and drop burning, and comes with on-chip temperature sensing precision monitoring chip 5. Adapt to IoT terminals, DIY peripherals, industrial control, embedded teaching, and small automation equipment development Characteristic parameters: Version: RP2350-USB-C PIO-USB Female Edition; RP2350-USB-CM PIO-USB Public Port Version Adopting RP2350A microcontroller chip Unique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard3 RISC-V processor, with clock operating frequency up to 150MHz, supporting users to flexibly switch between the two architectures Built in 520KB SRAM and 2MB on-chip Flash Adopting Type-C interface, there is no need to worry about forward and backward insertion Support Type-C interface power supply (compatible with PD protocol) Stamp hole design, can be directly welded and integrated into the user's self-designed base plate USB 1.1 host and slave device support Support low-power sleep and sleep mode Can be recognized as a large capacity storage device through USB for drag and drop download of programs 15 GPIO pins of RP2350A lead out 2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channels Accurate on-chip clock and timer Built in temperature sensor for real-time monitoring of chip temperature 12 programmable I/O (PIO) state machines for custom peripheral support Product List: 1X module

RP2350-USB-A Features:1. Dual core dual architecture processor: Unique dual core, dual architecture, with a clock speed of 150MHz and strong performance. 2. Large capacity storage: Built in 520KB SRAM and 2MB on-chip Flash to meet various needs. 3. Flexible GPIO design: 15 multifunctional GPIO pins with strong scalability and flexible development. 4. Convenient interface design: Adopting Type-C interface, it can be directly soldered and integrated, and the stamp hole design is convenient for embedded applications. 5. Low power consumption and rich peripherals: Supports low-power mode, accelerated floating-point library, and 12 programmable PIO state machines. Product Features: Adopting the official independently designed RP2350A microcontroller chip Unique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard 3 RISC-V processor, with a clock operating frequency of up to 150MHz Built in 520KB SRAM and 2MB on-chip Flash Adopting Type-C interface, keeping up with the trend of the times, no need to worry about forward and backward insertion Stamp hole design, can be directly welded and integrated into the user's self-designed base plate USB 1.1 Host and Device Support Onboard 1 USB expansion port, compatible with USB 2.0/1.1 transmission Support low-power sleep and sleep mode Can be recognized as a large capacity storage device through USB for drag and drop downloads 15 GPIO pins of RP2350A lead out 2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channels Accurate on-chip clock and timer Built in temperature sensor On-chip accelerated floating-point library 12 programmable I/O (PIO) state machines for custom peripheral support Mini size 33mm * 17.5mm Package Include： 1X development board label:yes
