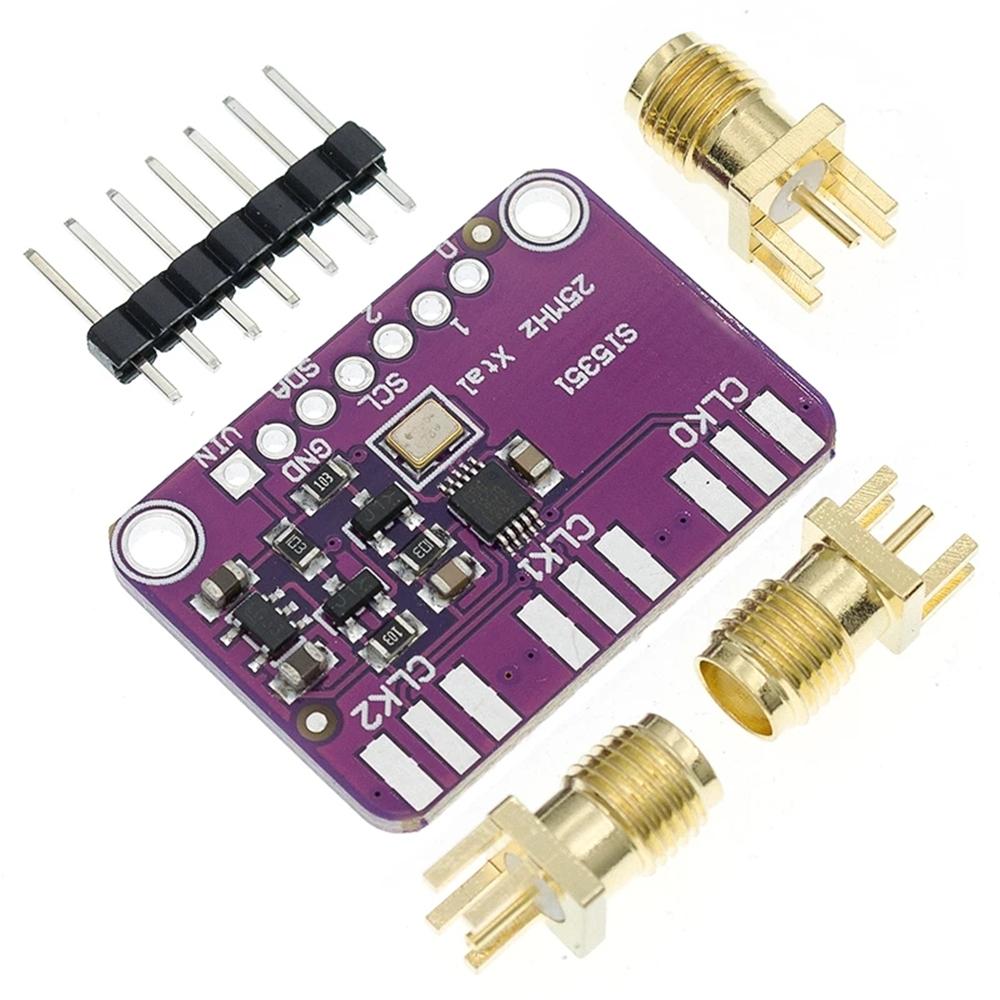

Wave Frequency Si5351 8KHz-160MHz DC 3V-5V Board Module Signal Generator Si5351A Clock Generator

Label:Yes Model: SI5351 Package Included:1 x Module Material: Electrical components Color: Purple Type:Module

Features: 1.The Si5351A clock generator is an I2C controller clock generator. 2.It uses the onboard precision clock to drive multiple PLL's and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. 3.There are three independent outputs, and each one can have a different frequency. 4.Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector. 5.We put this handy little chip onto it's own breakout board PCB, with a 3.3V LDO regulator so it can be powered from 3-5VDC. We also put level shifting circuitry on the I2C lines so you can use this chip safely with 3V or 5V logic.

Descriptions: 1.This chip has a precision 25MHz crystal reference and internal PLL and dividers so it can generate just about any frequency, from <8KHz up to 150+ MHz.

Notes: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2. Please allow slight dimension difference due to different manual measurement.
