FNIRSI 2C23T 2C53T: Universal Oscilloscope Signal Generator - Four Channels 200MSa/s 500MHz Bandwidth Three In One

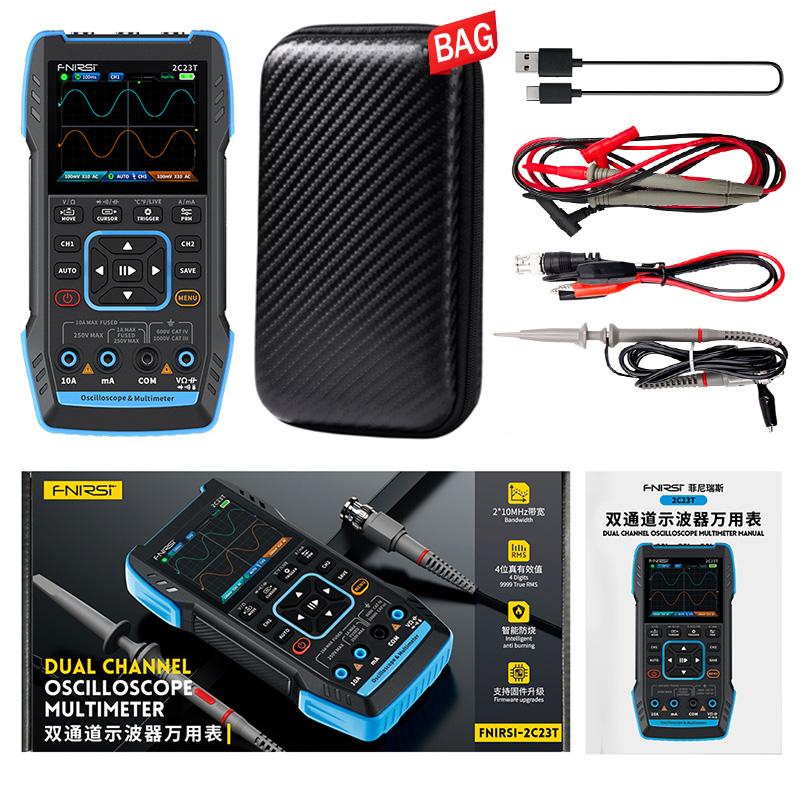

<kse:widget data-widget-type="customText" id="1005000026230402" type="relation"></kse:widget> FNIRSI 2C23T User Guide: https://www.mediafire.com/file/fqz2514197o6dpt/2C23T_User_Guide.pdf/file FNIRSI-2C23T is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI.

This device is equipped with three main functions of oscilloscope, multimeter, and signal generator.

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V;

Support for saving and viewing waveform screenshots for analysis .The multimeter has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off and other measurement functions.

Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument.

Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

Using a 2.8 inch 320 * 240 resolution high-definition LCD display screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. Provide users with more and stronger practical functions in a compact size, while also having good portability.

FNIRSI Model: 2C23T Display Resolution: 320*240 Pixels Max Waveform Capture Rate: 30,000wfm/s Resistance: 999.9Ω-99.99MΩ Amplitude: 0.1-3.3V Battery Included: no Certification: CE Temperature: -55~1300℃ / -67~2372℉ High-concerned chemical: none Model Number: 2C23T DC current: 9999uA-9.999A Time Base Range: 50ns-10s Trigger type: Rising edge, Falling edge Coupling method: AC/DC AC voltage: 9.999V-750.0V AC current: 9999uA-9.999A Real Time Sampling Rate: 5GSa/s Display Size: 2.9 Inches & Under Band Width: 10M*2 Save waveform screenshot: Yes DC Voltage: 9.999V-999.9V Diode: Support Batterie: 3000mAh Lithium Akku Record Length: 4k Impedance: 1MΩ Vertical sensitivity: 20mV-10V Display mode: YT/Scroll/XY Continuity test: Support Maximum measured voltage: ±400V Brand Name: FNIRSI Origin: Mainland China Semi-finishedproduct: No DIY Supplies: Electrical Digital Channels: 2 Gewicht: About 300g Export waveform images: Yes Capacitance: 9.999mF-999.9nF Live line detection: Support IS Battery Demountable: No Trigger mode: AUTO/Normal/Single Frequency: 1Hz-2MHz Ladeanschluss: USB TYPE-C (5V/1A) Standby Zeit: 6h (theoretisches Maximum, Laborwert) Abmessungen: 167*89*35 mm
