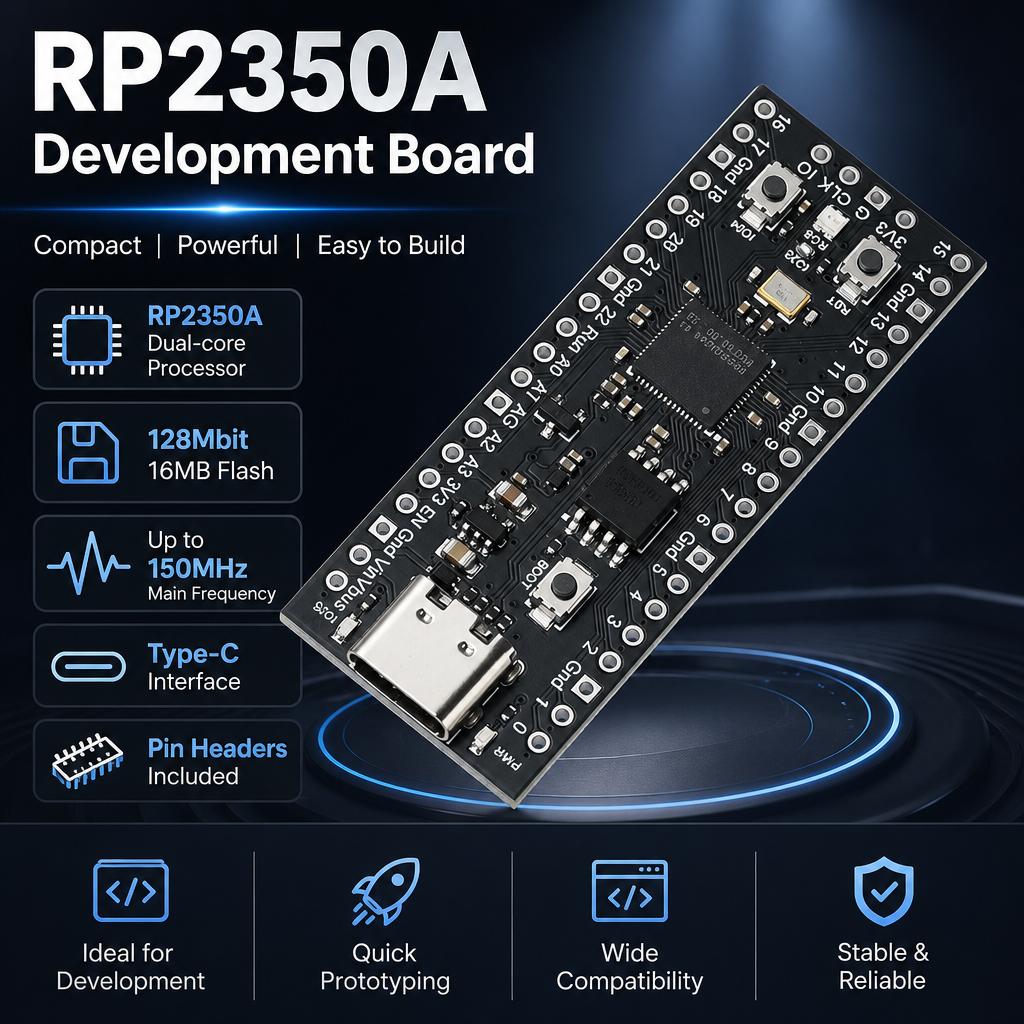

RP2350A Development Module 520KB SRAM USB Host Device Mode Hardware Encryption OTP Memory For Student Learning

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 5V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : RP2350A Development Board Feature 2 : Dual Core Microcontroller Board Feature 3 : RP2350 MCU Board Feature 4 : 128Mbit SRAM Feature 5 : 16MB QSPI Flash Feature 6 : Type C Interface Feature 7 : GPIO Programmable IO Feature 8 : Low Power MCU Feature 9 : MicroPython Development Feature 10 : Hardware Encryption

Product Features: 1. Dual architecture dual core processor, maximum clock speed of 150MHz, 520KB large capacity on-chip SRAM. 2. Equipped with programmable IO, complete peripheral interfaces, and flexible and powerful hardware expansion capabilities. 3. Supports up to 16MB of external QSPI flash memory, with optional storage as needed for more flexible use. 4. Support multiple low-power modes and adapt to battery powered devices running for extended periods of time. 5. Supports hosts and devices, even beginners can quickly get started.

Product Introduction RP2350 is a high-performance, secure, low-cost, and easy-to-use microcontroller. It has a large capacity on-chip memory, a symmetrical dual core processor, a deterministic bus structure, and a rich set of peripherals, and is equipped with our unique programmable I/O (PIO) subsystem, providing unparalleled power and flexibility for professional users. RP2350 has detailed documentation, a comprehensive MicroPython port, and a UF2 bootloader in ROM, providing the lowest entry barrier for beginners and amateur users. RP2350 is a stateless device that supports cache in place execution of external QSPI memory. This design decision allows you to choose the appropriate density of non-volatile storage for your application. The RP2350 is manufactured using modern 40nm process nodes, featuring high performance, low dynamic power consumption, and low leakage, and provides multiple low-power modes to support long-term operation powered by batteries.

Main functions: Dual Cortex-M33 or Hazard3 processors with frequencies up to 150MHz 520KB multi group high-performance SRAM Supports up to 16MB of off chip flash memory through a dedicated QSPI bus DMA controller Fully connected AHB crossbar switch On chip programmable LDO generates core voltage 2 on-chip PLLs for generating USB and kernel clocks 30 GPIO pins, of which 4 can be used as analog inputs 2 UART 2 SPI controllers 2 I2C controllers 24 PWM channels USB 1.1 controller and PHY, supporting both hosts and devices 3 programmable IO (PIO) blocks, totaling 12 state machines

Security: RP2350 has a comprehensive security architecture built around Arm TrustZone for Cortex-M, including the following features: Support signature startup 8KB on-chip anti fuse one-time programmable (OTP) memory SHA-256 Acceleration Hardware True Random Number Generator (TRNG) Architecture switching: RP2350 includes a pair of open hardware Hazard3 RISC-V cores that can replace Cortex-M33 cores at startup. Our startup RO M can even automatically detect the architecture of the second stage binary file that has been built and restart the chip to the corresponding mode. except for a small amount All functions of the chip, except for security features and double precision floating-point accelerator, can be used in RISC-V mode.

Product List: 1X development board 3X needle arrangement label:yes
