Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : 5V
Type : Module
Operating Temperature : 0-50C
Origin : Mainland China
Condition : New
3.5mm AUX To XH2.54-3P Adapter Board : Headphone Audio Signal Transfer Board
Amplifier Audio Extraction Board : Speaker Mod Wiring Board
3P Audio Terminal Board : Development Board Audio Signal Output Jack
PCB Small Mount Hole Audio Transfer : Lossless Audio Straight Through Adapter Board
Product Features:

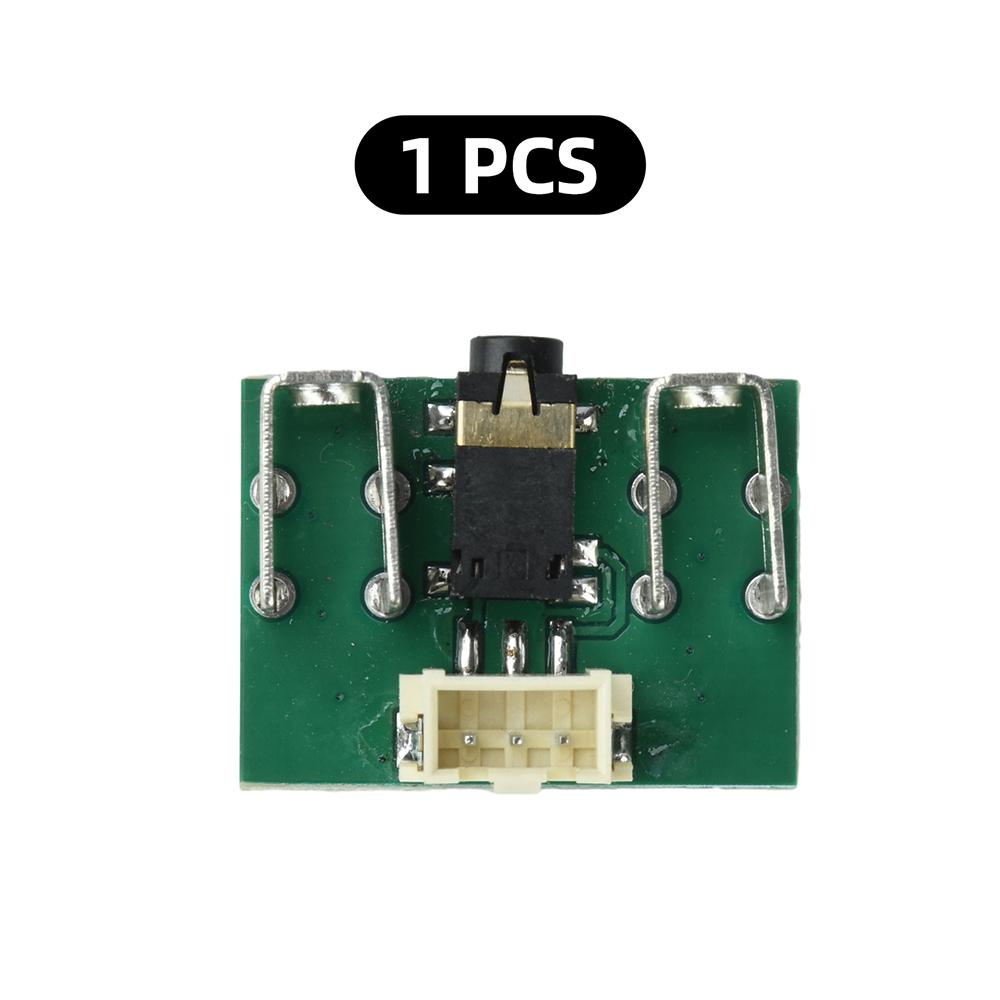

1. Plug and play signal adapter: It adopts a 3.5mm AUX audio interface to XH2.54mm-3P terminal design, which enables fast audio signal output and connection, and convenient and fast wiring.
2. High quality PCB material production: High quality PCB boards are selected, with reasonable circuit layout and stable conductivity, which can effectively meet the needs of audio signal transmission.
3. Compact structure and convenient installation: The adapter board has a compact and lightweight design, and is equipped with 2 mounting holes, making it easy to fix and install inside various devices.
4. Channel design for stable transmission: The adapter board only provides audio signal conduction function, without amplification, filtering or other circuit designs, which can maintain the original audio signal transmission and reduce additional losses.
5. Widely used in audio DIY scenarios: suitable for amplifier, speaker, audio module, development board, audio modification, headphone jack output, and signal connection and conversion of various DIY audio devices.
Product Parameters:
Material: PCB
Earphone jack: 3.5mm
Terminal specification: XH2.54mm-3P
Product size: 30mm * 22mm * 13mm; Screw hole diameter: 2mm (note: there may be slight errors in manual measurement, please refer to the actual product)
Product Description:
The adapter board only provides one pathway. As long as the signal is connected, it functions normally. Other issues are not related to it. Do not touch it directly with your hands to avoid sensing noise; It will not produce noise, and if there is noise, it has nothing to do with the adapter board! Please try to stay away from interference sources or shorten the connection for use!!
Product List:
1/5X module
label:yes
