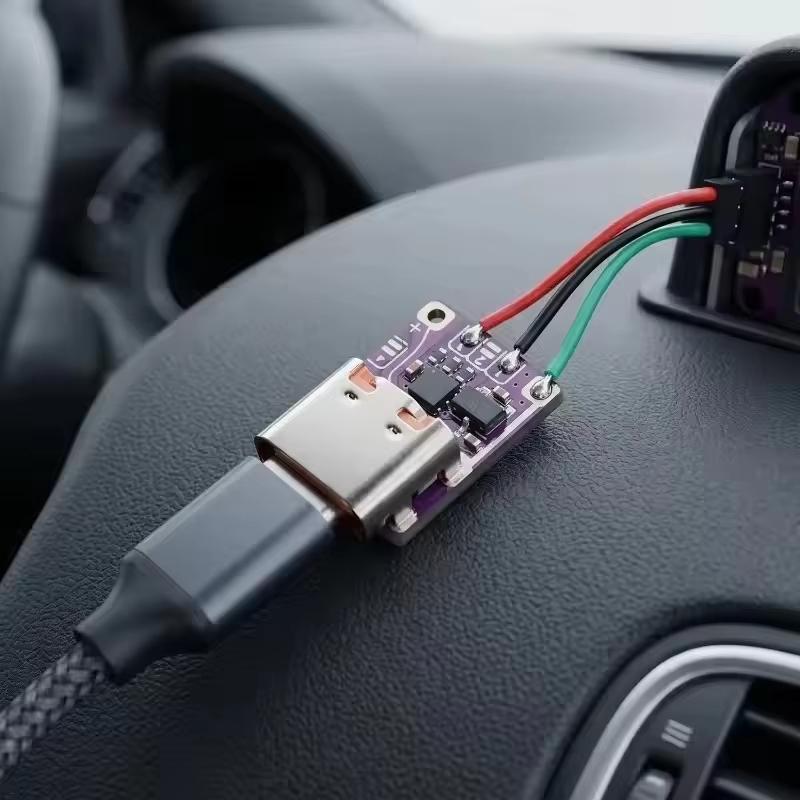

PD QC Trigger Module Type C High Voltage SPI Decoy Board High Precision Portable for Power Test Lab Research Electronic Repair Work

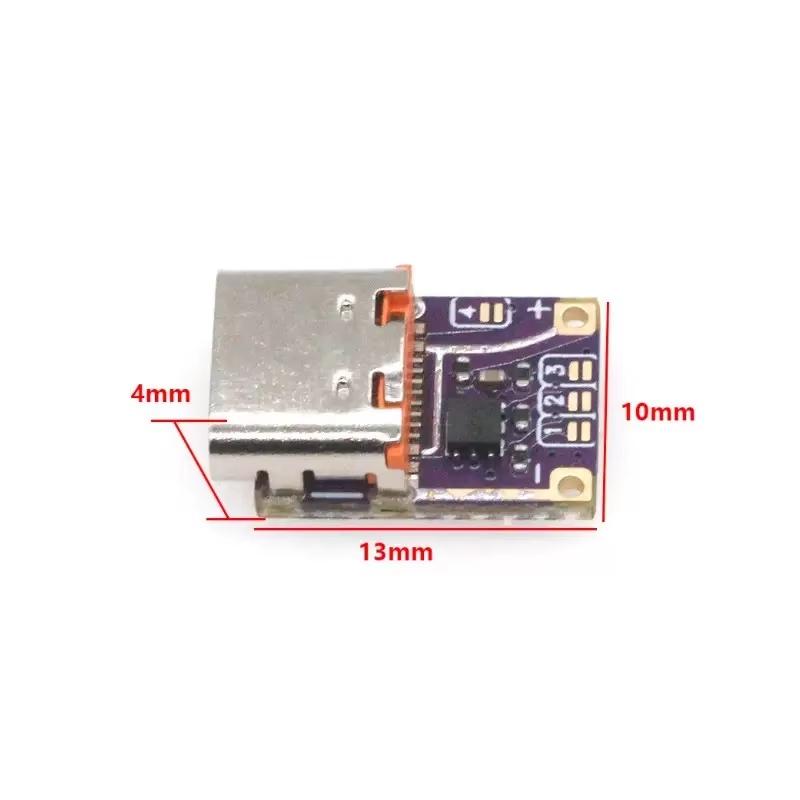

Description: PD QC Trigger Module Type C High Voltage SPI Decoy Board for Power Test & Repair Jobs Features: 1. Multi-Protocol Fast Charging Compatibility: We integrate a high-performance multi-protocol PD trigger IC and matched SMD components on this board, which supports PD2.0/3.0, QC2.0/3.0, AFC and all popular fast charging protocols, with adjustable voltage outputs ranging 5V/9V/12V/15V/20V. It works with nearly all Type-C fast chargers available on the market, eliminating the need for special power adapters and reducing your power supply costs. 2. Full-Coverage Protection Circuits: Its built-in OVP/OCP/SCP/OTP protection system uses a graded handshake logic that initiates at 5V before voltage boosting, and will automatically shut off power supply when any abnormality is detected. This effectively keeps your connected devices and chargers from damage, guaranteeing safe and reliable use for a long time. 3. Super Mini Size: Crafted with high-density FR-4 fiberglass PCB and an ultra-slim DFN packaged IC, it has very few peripheral components so it barely takes up PCB space. It is easy to be embedded inside small devices, or carried as a pocket-sized testing accessory, ideal for scenarios with limited space. 4. No Programming, Ready to Use Out of the Box: It uses a hardware-triggered design with fixed resistors for voltage adjustment, so it finishes PD handshake and activates the target voltage automatically right after being powered on, no extra MCU programming is needed. It is super easy to use even for newbies, and helps engineers cut down product development cycles greatly. 5. Long-Lasting Type-C Interface: The thickened anti-oxidation nickel-plated Type-C female port is designed with reinforced contact pins, which supports thousands of insertion and extraction cycles without bad contact issues. It prolongs the module’s service life and maintains stable power transmission even after frequent plugging. Specifications: Output Voltage: 5V/9V/12V/15V/20V / 5V/20V/28V/36V/48V (two optional ranges) Size: As displayed in the product images Color: As shown in the pictures Package Content: 1 * Trigger Module Notes: 1. The product images do not indicate the actual size, please check the description for specific size information. 2. Please allow small measurement errors caused by manual operation, thanks for your kind understanding. 3. The actual color of the item may be a little different from the images due to different monitor display settings. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
