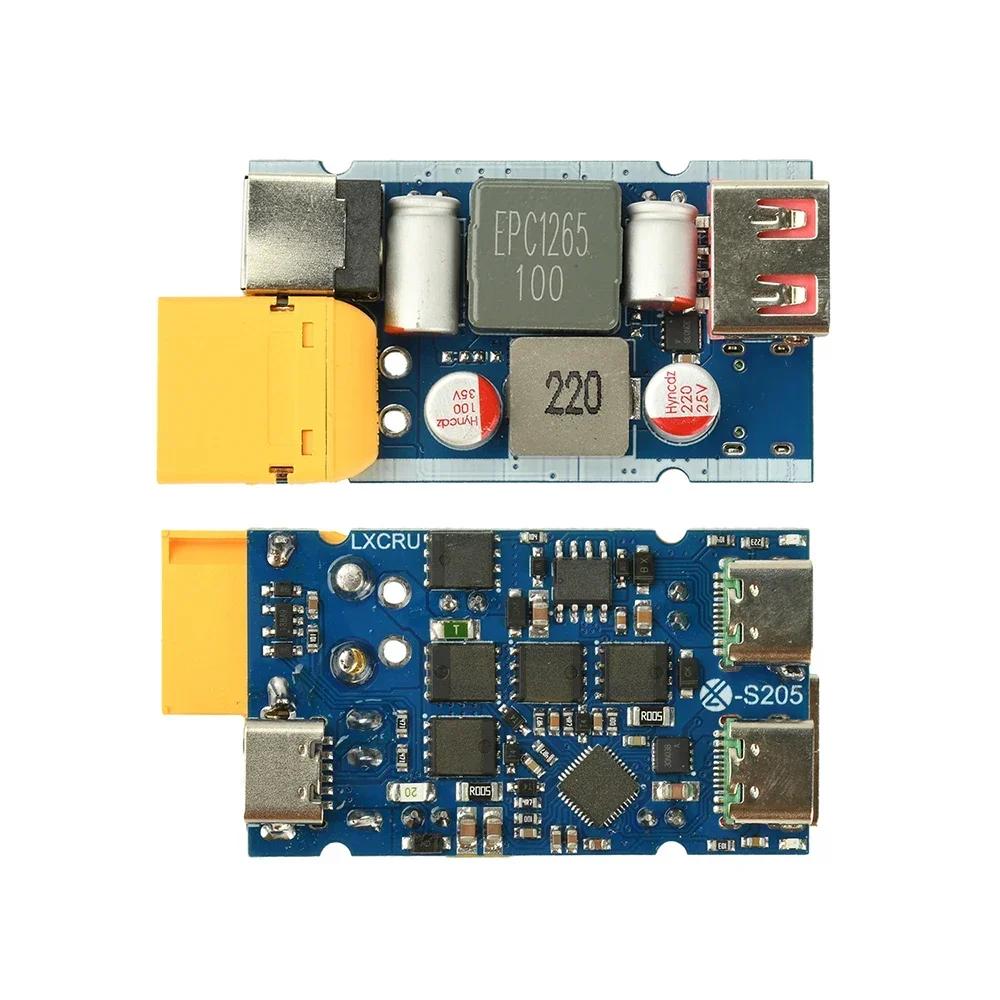

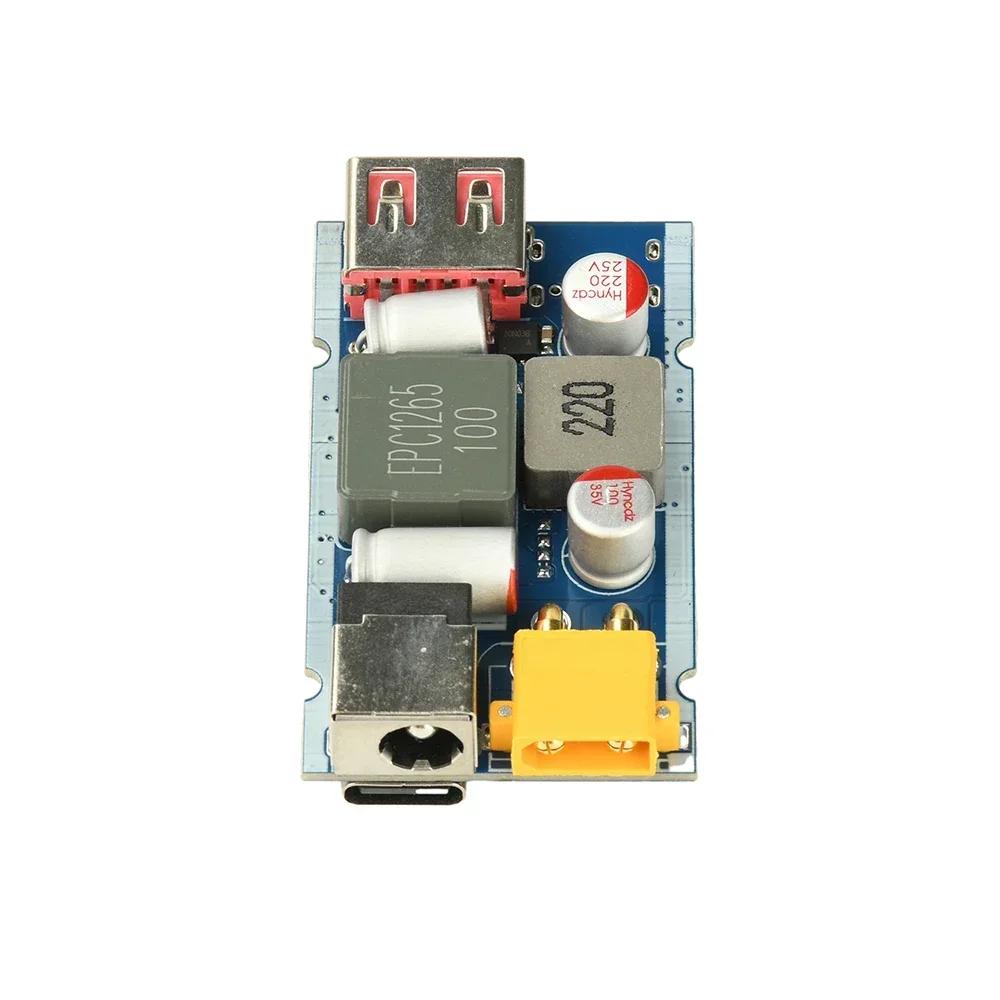

Step-up Step-down Fast Charging Module XT30/XT60 Interface PD 3.0 PPS QC 5.0 205W High Power for Laptop Phone Charging

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Dissipation Power : 205W Supply Voltage : DC9-30V Application : MOBILE PHONE Type : Voltage Regulator Operating Temperature : 0-50C Origin : Mainland China Condition : New Fast Charging Module : PD QC Charging Module Power Supply Module : 205W High Power Step-up Step-down Charging Module : Dual Port Fast Charger Module Multi-protocol : XT30 Interface XT60 Interface : PD 3.0 QC 5.0 Charging Module DC 9-35V Wide Voltage : 140W+65W Dual Channel Charging High Quality Solid Capacitor Charging Module : Universal Fast Charging Protocol Multi-device Charging Module : High Current Inductor Charging Laptop Fast Charger : Phone Fast Charger

1. Supports wide voltage input, adapts to multiple voltages, and is more convenient to use 2.140W/65W high power, fast charging 3. Adopting efficient voltage boosting technology, it can quickly charge multiple devices at the same time, meeting high-power electricity demand 4. Support multiple fast charging protocols such as PD and QC, intelligently identify devices and match the best charging mode 5. Use high-quality materials, high current inductors, and solid capacitors to ensure product quality 6. Equipped with multiple output interfaces, capable of supplying power to multiple devices simultaneously, with a reasonable layout Type 1/Type 2

Product Parameters Input voltage: DC9-30V (CA and A1 are boost/buck, C2 is buck) C1 supports PD/2.0/3.0/PPS C1 supports QC2.0/3.0/4.0/4.0+/5.0 C1 supports FCP and high/low voltage SCP/SFCP C1 supports a maximum of 28V/5A (140W) C2 supports PD3.0, PPS, PE1.12.0, QC3.0, QC3+, QC4+, FCP, SCP, AFC, with a maximum of 65W

Type 3/Type 4

Product Parameters Input voltage: DC9-35V (step-down type) Recommended voltage: 12-32V C1 supports PD/2.0/3.0/PPS C1 supports QC2.0/3.0/4.0/4.0+/5.0 C1 supports VOOC/DASH/WARP65W (requires USB port) C1 supports FCP and high/low voltage SCP/SFCP C1 supports AFC C1 supports PE1.1/2.0, with a maximum support of 20V/7A (140W) C2 supports PD3.0, PPS, PE1.12.0, QC3.0, QC3+, QC4+, FCP, SCP, AFC, with a maximum of 65W

Notes: 1. The module is divided into two channels: 140W and 65W. If you input the default DC5525 interface, XT30, or C port, you need PD fast charging power input to convert PD protocol to other charging protocols. The C1+A1 dual port can be charged simultaneously, but charging at the same time is normal charging. C2 and A1 or CI can be charged quickly at the same time, and attention should be paid to strengthening heat dissipation during fast charging. 2. Original cables are required to support fast charging. Other devices need to confirm whether they support QC and PD protocols. If they do, they can support fast charging. If not, they can only support regular charging.

Module * 1

Type 1/Type 2

Type 3/Type 4 label:yes
