160MHz ESP32 C6 IoT Development Board 1.28 Inch IPS Color Screen QMI8658 Sensor PCF85063 RTC Chip Wireless Communication Module

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 5V Type : Module Origin : Mainland China Condition : New Operating Temperature : 0-50C Feature 1 : ESP32-C6 Development Board Feature 2 : RISC-V MCU Board Feature 3 : IoT Development Board Feature 4 : 1.28 Inch IPS LCD Display Board Feature 5 : Six Axis Sensor MCU Board Feature 6 : RTC Timing Development Board Feature 7 : Type-C Interface Development Board

Product Features: 1. Equipped with ESP32C6 RISC V processor, with a main frequency of 160MHz, powerful computing power, safe and reliable 2. Integrated WiFi 6 and Bluetooth 5, supporting Zigbee Thread multi protocol wireless communication capability 3. Onboard 1.28-inch IPS color screen 240 × 240, 65K color display with clear and delicate image 4. Built in six axis sensor RTC chip, supporting lithium battery power supply and TF card storage expansion 5. Suitable for AIoT IoT development, intelligent wearable prototype production, and embedded project debugging

Product Introduction： ESP32-C6-LCD-1.28 is a low-cost, high-performance microcontroller development board. In a smaller board size, the board is equipped with 1.28-inch capacitive LCD screen, lithium battery charging chip, six axis sensors (three-axis accelerometer and three-axis gyroscope) and other peripherals, making it easy to develop and embed into the product. Equipped with ESP32-C6, suitable for the AIoT market, it features a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, with a clock speed of up to 160MHz, powerful AI computing capabilities, and secure encryption mechanisms

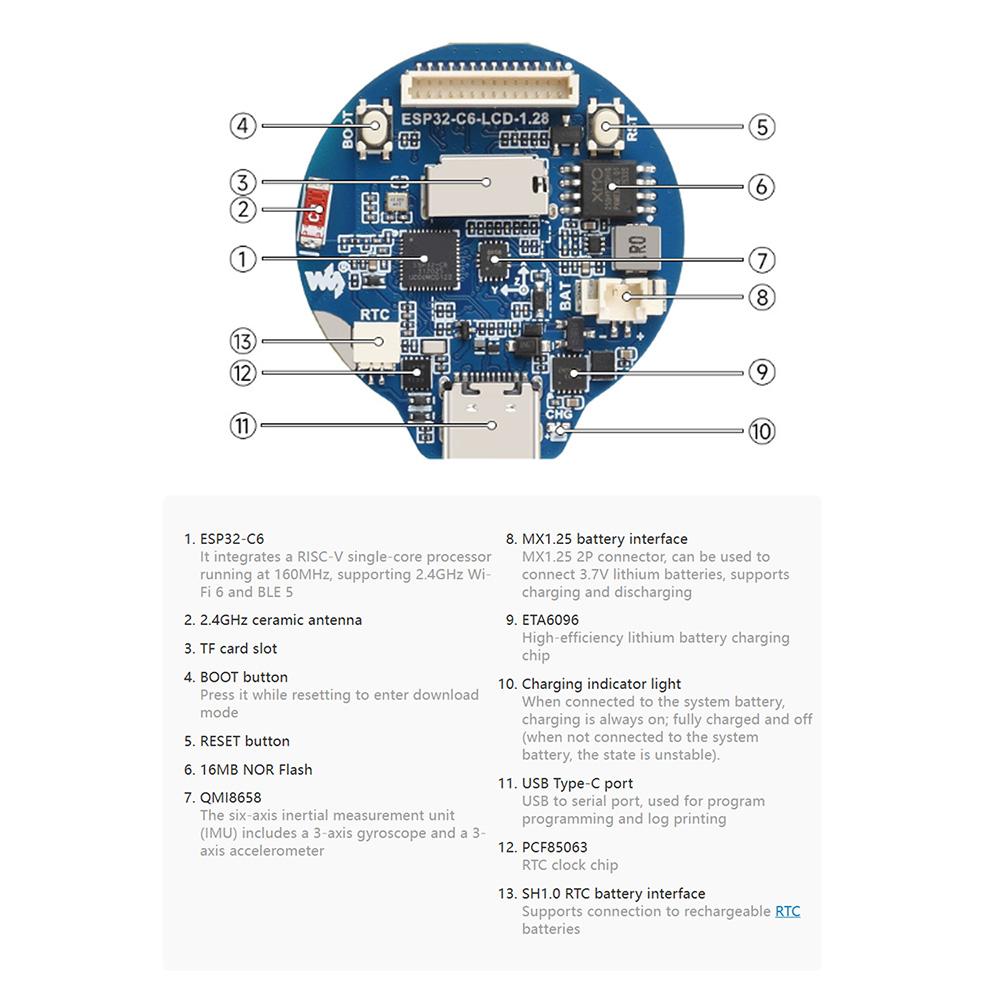

The main functional features include: Equipped with ESP32-C6 high-performance 32-bit RISC-V processor, with a clock speed of up to 160MHz Integrated Wi Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with excellent RF performance Built in 512KB HP SRAM, 16KB LP SRAM, and 320KB ROM, external 16MB Flash Adopting Type-C interface, there is no need to worry about forward and backward insertion Onboard 1.28-inch capacitive LCD screen, 240 × 240 resolution, 65K color, capable of displaying color images clearly The upper shell is made of CNC metal material, and the back is equipped with an acrylic frosted bottom plate (optional) Onboard QMI8658 six axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) The onboard PCF85063 RTC chip facilitates the implementation of RTC functional requirements Onboard 3.7V MX1.25 lithium battery charging and discharging interface Onboard SH1.0 14PIN expansion interface, capable of exporting 6 GPIO, 1 UART, and 1 I2C Onboard TF card slot, capable of storage expansion, high-speed data transmission, and enhancing flexibility in use

LCD screen parameters: Display panel: IPS Display size: 1.28 inches Display resolution: 240 × 240 pixels Display color: 65K Display brightness: 400cd/㎡ Contrast ratio: 1100:1 Communication interface: SPI Driver IC: GC9A01A Product List:

Bare screen: ESP32-C6-LCD-1.28 host x 1 SH1.0 14PIN connection wire 100mm × 1

With shell version: ESP32-C6-LCD-1.28-B host x 1 SH1.0 14PIN connection wire 100mm × 1 Screwdriver x 1 label:yes
