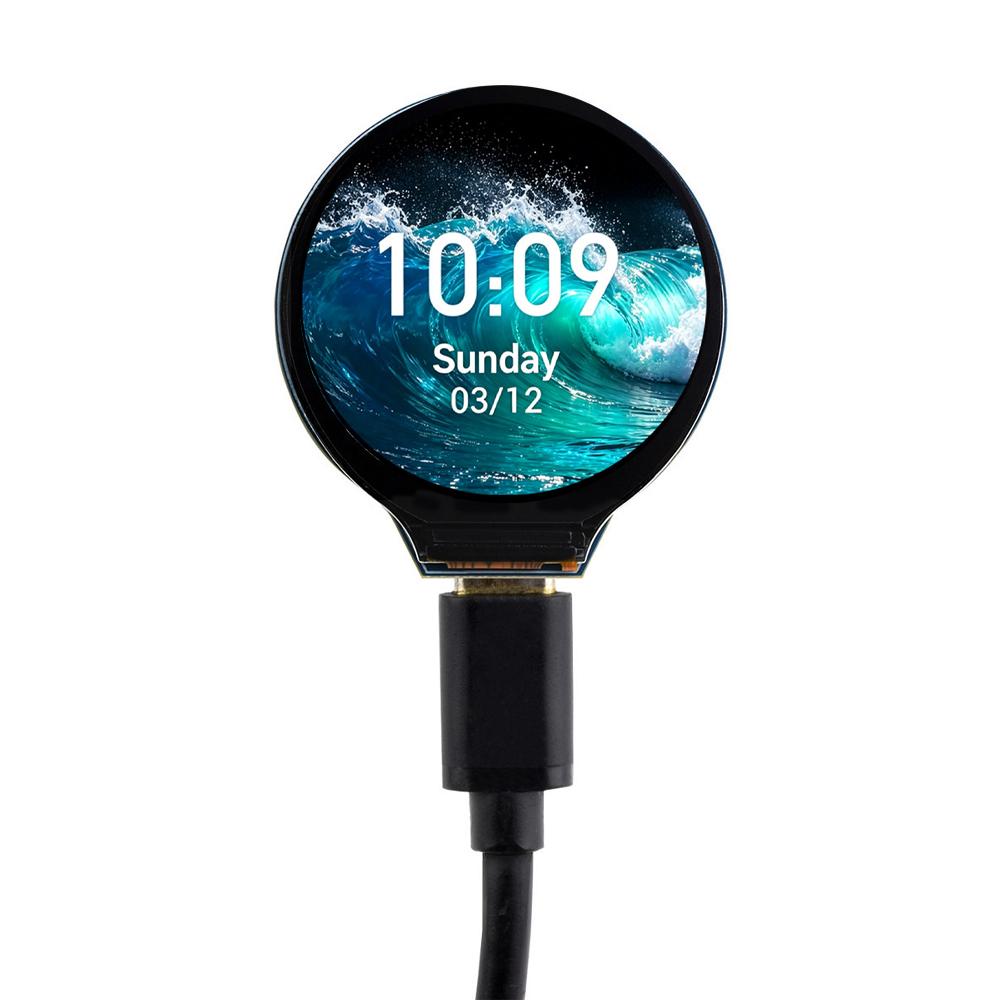

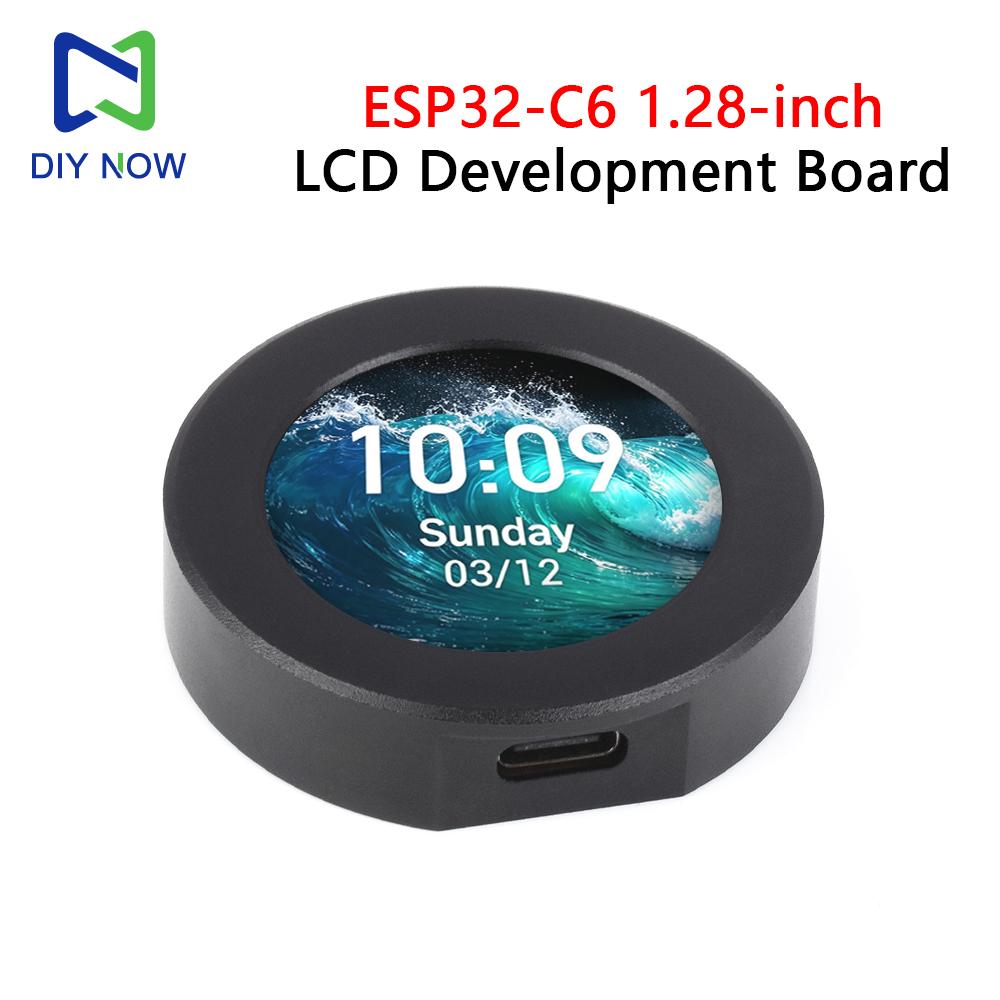

ESP32‑C6 1.28 Inch 240x240 Round LCD Development Board Module GC9A01A WiFi6 BLE5 16MB Flash LVGL GUI For IoT HMI Application

High-concerned chemical : none Display Mode : 1100:1 is_d : Yes Model Number : ESP32-C6 1.28-inch LCD screen Type : OLED Brand Name : DIY NOW Origin : Mainland China Resolution : 240x240 ESP32-C6 : 1.28-inch LCD screen Display Panel : LCD Display Size : 1.28 inch Colors : 65K Brightness : 400 cd/m² Communication Interface : SPI Driver IC : GC9A01A Wi-Fi 6 : Bluetooth 5 ESP32 C6 1.28 Inch LCD Development Board : ESP32 C6 RISC-V HMI Display Board ESP32 C6 LVGL GUI Board : 240x240 Round LCD

ESP32‑C6 1.28 Inch 240x240 Round LCD Development Board Module GC9A01A WiFi6 BLE5 16MB Flash LVGL GUI For IoT HMI Application No touch function

Looking for a compact, all-in-one development board with Wi-Fi 6, Bluetooth 5, Zigbee, Thread, and a stunning 1.28-inch color display – all powered by the latest ESP32-C6 RISC-V processor? The ESP32-C6-LCD-1.28 Development Board combines Espressif's next-generation ESP32-C6 chip with a vibrant 1.28-inch 240×240 IPS color display in a compact, feature-packed form factor. Supporting 2.4GHz Wi-Fi 6, Bluetooth 5 (LE), Zigbee 3.0, and Thread, this board is the ultimate platform for smart home gateways, HMI interfaces, wearable devices, and IoT prototypes. With onboard QMI8658 6-axis IMU, PCF85063 RTC, Micro SD card slot, and lithium battery charging, plus a 14-pin expansion header, it delivers unmatched versatility in a tiny 1.28-inch display form factor.

⭐ Key FeaturesESP32-C6 RISC-V Processor – 160MHz High Performance Powered by theESP32-C6with a32-bit RISC-V single-core processorrunning at up to160MHzand alow-power RISC-V co-processorat 20MHz. Built-in512KB HP SRAM, 16KB LP SRAM, 320KB ROM, and 16MB external Flashprovide ample memory forcomplex applications, GUI frameworks like LVGL, and data logging.Multi-Protocol Wireless – Wi-Fi 6 + BLE 5 + Zigbee 3.0 + Thread Supports2.4GHz Wi-Fi 6 (802.11ax)forhigher throughput, lower latency, and improved network efficiency, plusBluetooth 5 (LE), Zigbee 3.0, and Thread (IEEE 802.15.4). One board coversall major IoT wireless protocols– perfect forsmart home gateways, Matter-compliant devices, and cross-protocol applications.️ 1.28" Round IPS LCD – 240×240, 65K Colors Built-in1.28-inch round IPS panelwith240×240 resolutionand65K colors. Driven by theGC9A01A controllerviaSPI interfacewith400 cd/m² brightnessand1100:1 contrast ratio. Deliverscrisp, vibrant visuals– perfect forGUIs, dashboards, animations, and status displays.QMI8658 6-Axis IMU – Motion & Orientation Sensing OnboardQMI8658 6-axis inertial measurement unitwith3-axis accelerometer and 3-axis gyroscope. Ideal formotion gesture detection, step counting, orientation tracking, and tilt sensingin wearable and robotics applications.⏰ PCF85063 RTC – Real-Time Clock with Battery Backup OnboardPCF85063 RTC chipwithSH1.0 battery headersupport. Maintainsaccurate time even when main power is disconnected– essential fordata loggers, timers, and scheduled tasks.Lithium Battery Management – Recharge & Discharge OnboardMX1.25 lithium battery headerwithbuilt-in charging circuit– supports3.7V Li-Po battery charging and discharging. Simplifiesportable and wearable device development.Micro SD Card Slot – Expandable Storage OnboardMicro SD card slotforexpanding storage capacity and high-speed data transfer– ideal fordata logging, media storage, and firmware updates.14-Pin Expansion Header – GPIO, UART, I2C SH1.0 14-pin expansion interfacebreaks out6 GPIO pins, 1 UART, and 1 I2C– connectsensors, actuators, and external peripheralswith ease. Includes a100mm SH1.0 14-pin cablefor flexible connections.Type-C Interface – Modern & Convenient StandardUSB Type-C connectorforpower, programming, and serial communication. No more fumbling with cable orientation – works with any standard USB-C cable. Technical SpecificationsParameter Specification Processor ESP32-C6, 32-bit RISC-V single-core, up to 160MHz SRAM 512KB HP SRAM + 16KB LP SRAM ROM 320KB Flash 16MB (external) Wi-Fi 2.4GHz Wi-Fi 6 (802.11ax), backward compatible with 802.11 b/g/n Bluetooth Bluetooth 5 (LE) Other Protocols Zigbee 3.0, Thread (IEEE 802.15.4) Display 1.28" Round IPS LCD, 240×240, 65K colors, GC9A01A, SPI Display Brightness 400 cd/m² Contrast Ratio 1100:1 IMU QMI8658 6-axis (3-axis accelerometer + 3-axis gyroscope) RTC PCF85063 with SH1.0 battery header Battery Management MX1.25 Li-Po header, built-in charging circuit Storage Micro SD card slot Expansion SH1.0 14-pin header: 6×GPIO, 1×UART, 1×I2C Power Interface USB Type-C Enclosure SH1.0 14-Pin Cable (100mm) ️ LCD Display Specifications Parameter Specification Panel Type LCD Display Size 1.28 inches (round) Resolution 240 × 240 pixels Display Colors 65K (RGB) Brightness 400 cd/m² Contrast Ratio 1100:1 Communication Interface SPI Driver IC GC9A01A Typical Applications – Who Is This For?

Smart Home Gateways & Multi-Protocol Hubs WithWi-Fi 6, Bluetooth 5, Zigbee 3.0, and Threadall on one board, this is theperfect platformfor buildingMatter-compliant gateways, smart home hubs, and cross-protocol bridges. The1.28-inch displayprovides aclear visual interfacefor device status and control.HMI & LVGL GUI Applications The240×240 IPS displayand160MHz RISC-V processorarewell-suited for LVGL– buildinteractive control panels, dashboards, and touchless interfacesfor your IoT and embedded projects.Wearable Devices & Smart Watches Thecompact 1.28-inch round displayandonboard IMU, RTC, and battery chargingmake this board ideal forsmart watches, fitness trackers, and wearable gadgets.Data Logging & Portable Instruments TheMicro SD card slotandonboard RTCenablestandalone data logging– perfect forenvironmental monitoring, industrial sensors, and scientific experiments.STEM Education & Maker Projects With support forArduino IDE, ESP-IDF, and MicroPython, this board isaccessible to beginnerswhile offeringprofessional-grade capabilitiesfor advanced users. Perfect foruniversity labs, coding bootcamps, and DIY maker projects.Product Prototyping & Development Forprofessional developers and engineers, this board provides aquick way to validate HMI and IoT conceptsbefore committing to custom PCB design. TheCNC aluminum enclosuregives prototypes afinished, product-ready look. Package Includes1 × ESP32-C6-LCD-1.28 Development Board 1 × SH1.0 14-Pin Cable (100mm) label:yes
