Quantity : 1
High-concerned chemical : none
Package : TQFP
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Features:
1.The module is an ESP-32 development board, and the parameter characteristics of ESP-32 refer to the parameter characteristics of the module.
2.802.11B/G/WIFI+BT module; Low power dual core 32-bit CPU, can be used as an application processor;
3.The main frequency can reach up to 240MHz, and the computing power can reach up to 600DMIPS;Built in 520KB SRAM;
4.Support interfaces such as UART/SPI/I2C/PWM/DAC/ADC; Support OPENOCD debugging interface;
5.Supports multiple sleep modes, with a current as low as 6.5UA during deep sleep; Embedded LWIP and FREERTOS;
6.Support STA/AP/STA+AP mode; Support SMART CONFIG/AIRKISS one click distribution network;
7.Universal AT command, easy to use; Support local serial port upgrade and remote upgrade.
Product Description:

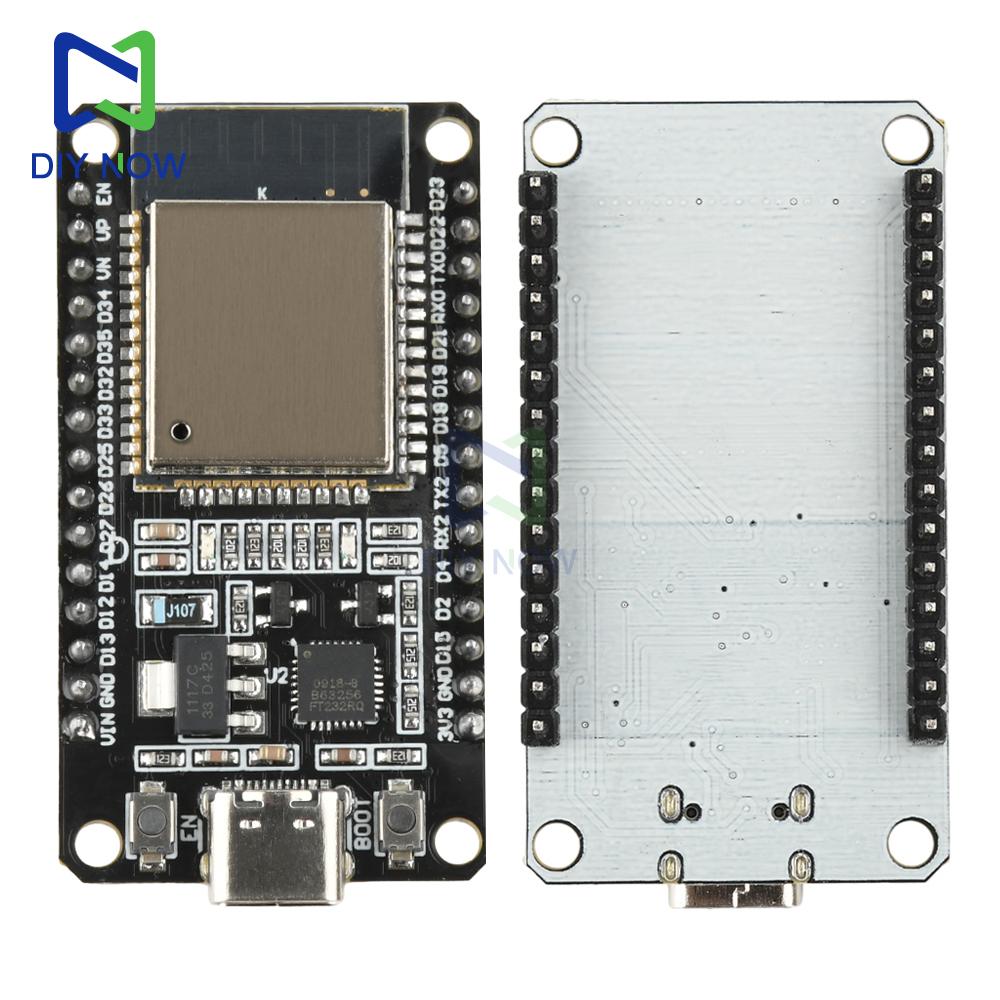

The main body of the module is the ESP-32 module, which uses a USB to serial port chip CP2102 to expand the TYPE-C interface. It can be directly connected to a computer for debugging, and data transmission is fast and stable. It has a power indicator light (red light) and a working status indicator light (blue light) on it, which allows you to know the status of the module at any time. There are two touch buttons, one to reset and the other to enable the module to enter download program mode. In addition, the pins on both sides of the development board can facilitate developers' connection and use.
The module has powerful Bluetooth and WIFI functions. As a Bluetooth and WIFI development board, it can access rich resources. In addition, the module supports multiple development environments, expanding the available range of its resources and greatly improving the ease of learning and development. Of course, it can also be widely used in IoT applications, such as home automation, wireless industrial control, wireless positioning system signals, etc.
Parameters:

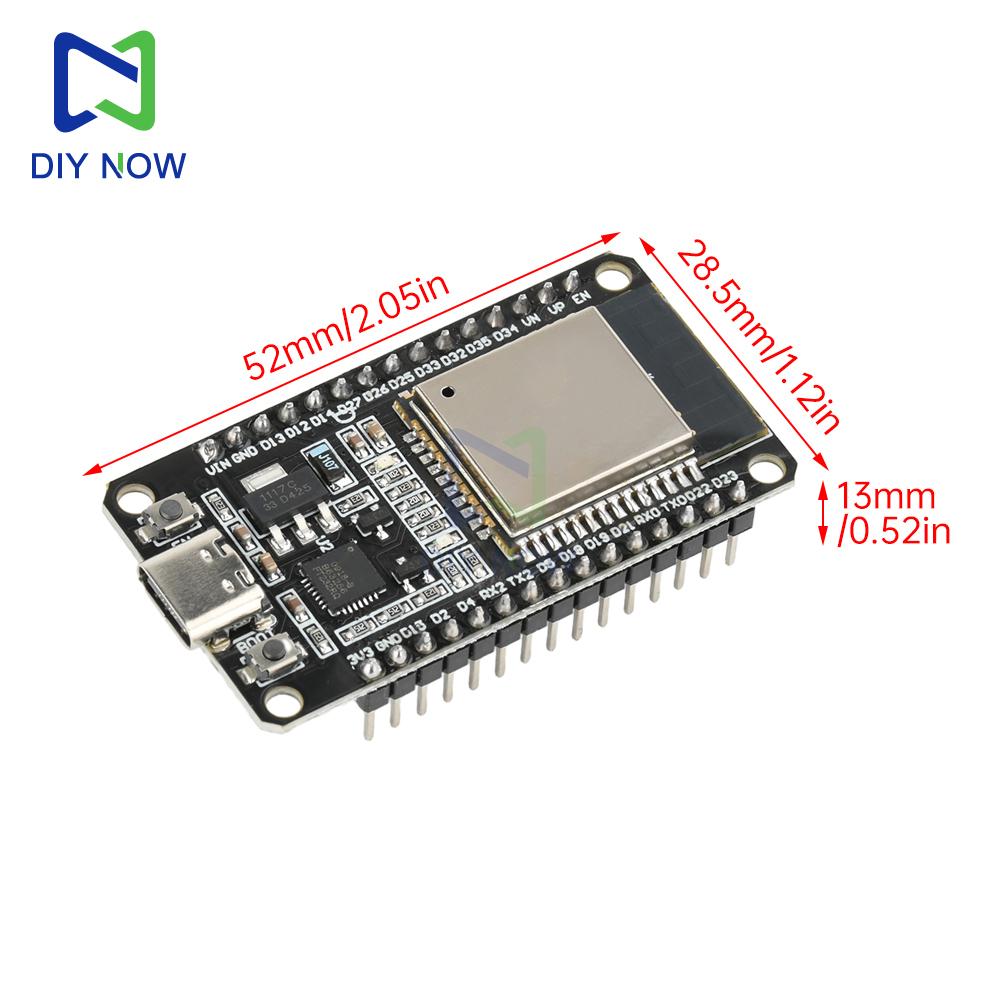

Size: W * L 28.5mm * 51.8mm
SPIFlash: default 32M bit
Bluetooth: Bluetooth 4.2BR/EDR and BLE standards
Wi Fi: 802.11b/g/n/
Supported interfaces: UART, SPI, SDIO, 12C, PWM, 12S, IR, ADC, DAC
On chip sensors: Hall sensors, temperature sensors, capacitive touch sensors
LO port: 22
Serial port speed: default 115200bps
Spectrum range: 2412~2484MHz
Antenna form: onboard PcB antenna with a gain of 2dBi
Transmission power:
802.11b: 17 soil 2dBm (@ 11Mbps)
802.11g: 14+2dBm (@ 54Mbps)
802.11n: 13 ± 2dBm (@ MCS7)
Receiving sensitivity:
CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps (1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption: 300mA@3.3v
Security: WPA/WPA2/WPA2 Enterprise/WPS
Power supply range: USB Power supply: 5v
Vin pin power supply: 5.0v~12V
Package include:
1X development board
label:yes
