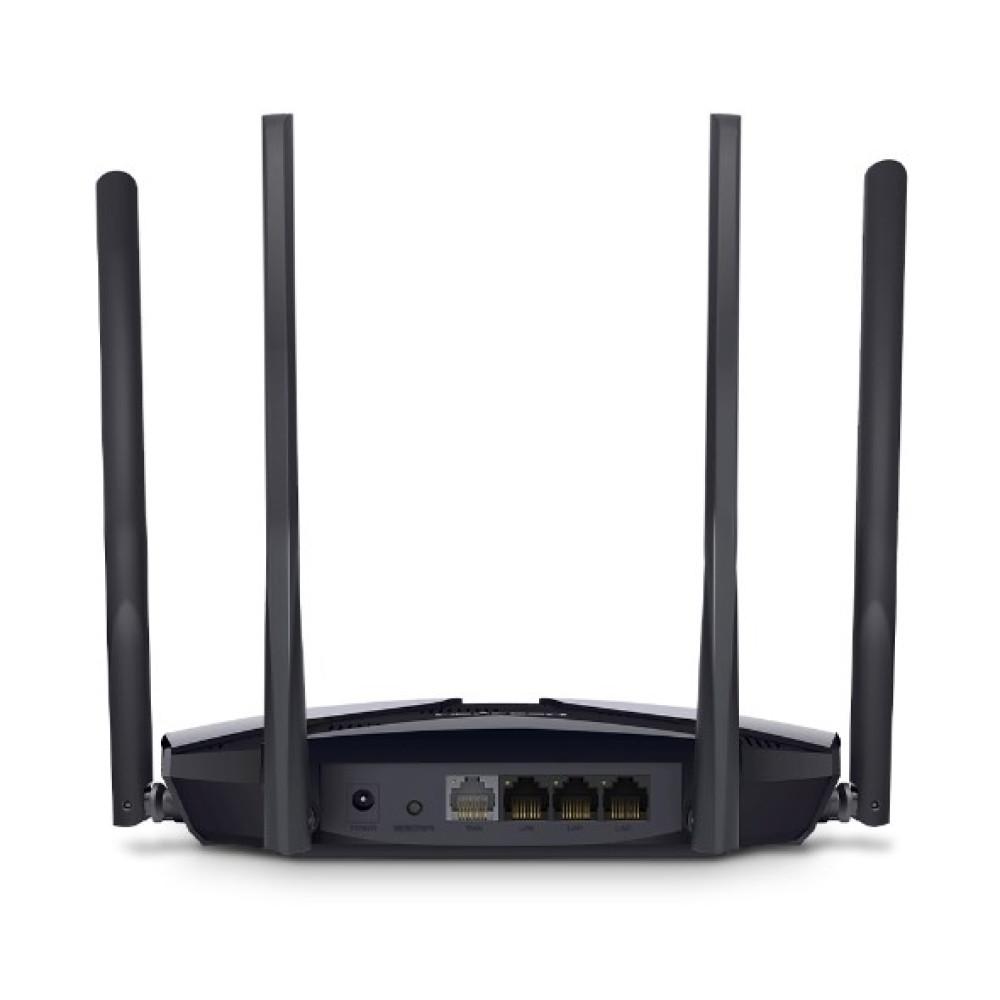

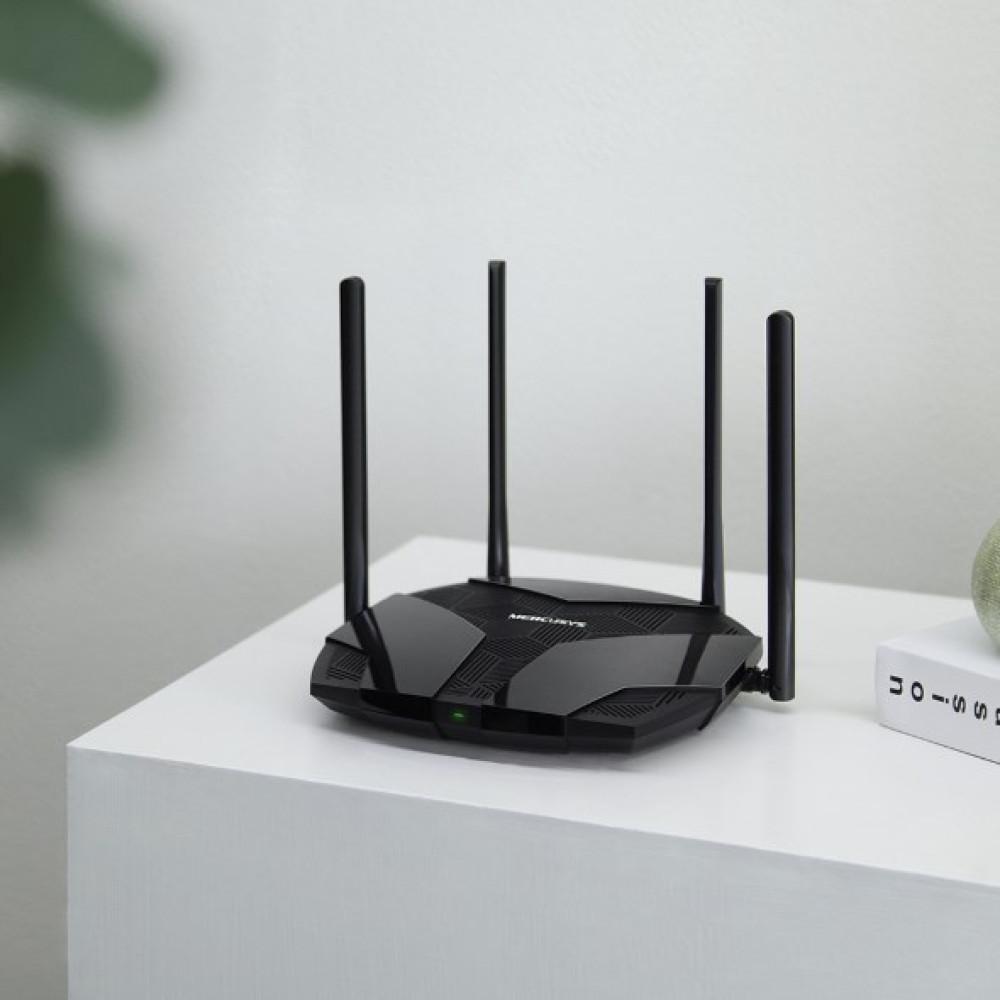

Mercusys Mr80X Router

Mercusys MR80X WiFi 6 Router AX3000

✅ MERCUSYS ROUTER MR80X

• WIFI 6 SPEEDS – WiFi 6 speeds of up to 3Gbps provide blazing-fast browsing, streaming, and downloading at the same time.• MORE DEVICES, MORE FUN – MU-MIMO and OFDMA support reduce congestion and increase throughput.• WIFI THAT REACHES FURTHER – 4 omnidirectional high-gain antennas and Beamforming technology spread a stable Wi-Fi signal throughout your home.• COMPREHENSIVE SECURITY PROTECTION – The latest WPA3 encryption standard ensures your wireless network is secure.• GIGABIT WIRED CONNECTIONS – Make the most of your internet connection and data transfer at blazing speeds.• POWER SAVINGS – Target Wake Time (TWT) reduces the power consumption of your mobile and IoT devices during data transmission.

• LESS WIFI INTERFERENCE – Minimizes interference from neighboring networks and improves transmission efficiency with BSS Coloring.

• SMART CONNECT – Intelligently selects the best available band for each device.

• Gigabit WiFi Connections.

✅ Doubled Throughput with 160MHz Channel Width.

The MR80X exceeds the limits of previous channel widths and brings your devices to a whole new level of speed. WiFi 6 with speeds of up to 3Gbps,2 lets you download large files in minutes and stream 4K video without lag.

✅ Connect 4x More Devices Simultaneously

Streaming and gaming on multiple devices is a blast without sacrificing performance. The MR80X supports OFDMA and MU-MIMO1, boosting your WiFi's capabilities by allowing simultaneous data transfers with multiple client devices. This provides 4x faster network performance in high-traffic environments.

✅ Targeted Signal that Penetrates Walls

Four external high-gain antennas and integrated signal amplifiers ensure a strong WiFi signal that reaches far. Beamforming detects your connected devices and focuses the wireless signal towards them, making the connection more stable.

✅ Reduce interference from neighbors' WiFi networks

Interference from other nearby wireless networks can cause problems with your network signal, especially if you live in an apartment building or close to neighbors. The MR80X uses BSS Coloring to mark data frames to distinguish them from those from other access points. This helps minimize signal interference from neighbors' networks and improve transmission efficiency.

✅ Targeted signal that penetrates walls

Four external high-gain antennas and integrated signal amplifiers ensure a strong WiFi signal that reaches far. Beamforming detects your connected devices and focuses the wireless signal towards them, making the connection more stable.

✅ Eco-friendly power saving

Target Wake Time reduces the power consumption of your mobile and IoT devices during data transfer to extend their battery life.1

✅ Targeted signal that penetrates walls

Four external high-gain antennas and integrated signal amplifiers ensure a strong Wi-Fi signal that reaches far. Beamforming detects your connected devices and focuses the wireless signal towards them, making the connection more stable.

Specification

✅ WAN CONNECTION

• Ethernet WAN: Yes • DSL WAN: No • SIM Card Slot: No • WAN Connection Type: RJ-45

✅ WIRELESS LAN FEATURES

• Wi-Fi Frequency: Dual-band (2.4 GHz/5 GHz) • Basic Wi-Fi Standard: Wi-Fi 6 (802.11ax) • WLAN Data Transfer Rate (max): 3000 Mbit/s • Wi-Fi Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) • WLAN Transfer Rate Data transfer rate (first band): 2402 Mbit/s • WLAN data transfer rate (second band): 574 Mbit/s

✅ NETWORK

• Wired LAN: Yes • Ethernet LAN interface type: Gigabit Ethernet • Ethernet LAN data transfer speed: 10, 100, 1000 Mbit/s • Cable technology: 10/100/1000Base-T(X) • Communication standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n • Port Forwarding: Yes • Port Triggering: Yes • Number of Guest Networks (2.4 GHz): 1 • Number of Guest Networks (5 GHz): 1 • Wireless Radio: Yes • VPN Server: OpenVPN, PPTP • VPN Supports: OpenVPN, PPTP supported

✅ PORTS AND INTERFACES

• Number of Ethernet LAN Ports (RJ-45): 3 • USB Port: No • DC Output Jack: Yes

✅ FEATURES MANAGEMENT

• Wi-Fi Multimedia (WMM) / (WME): Yes • Reset Button: Yes • WPS Button: Yes

✅ SECURITY

• Encryption / Security: WEP, WPA, WPA2, WPA3 • Firewall: Yes • Firewall Security: SPI Firewall, IP and MAC Address Binding • Guest Access: Yes • DMZ Support: Yes • Network Address Translation (NAT): Yes • NAT Functionality: Port Forwarding, Port Triggering, UPnP, DMZ

✅ PROTOCOLS

• DHCP Client: Yes • DHCP Server: Yes • Universal Plug and Play (UPnP): Yes

✅ DESIGN

• Product Color: Black • LED Indicators: LAN, WAN • Product Type: Desktop Router

✅ ANTENNA

• Antenna Type: External • Antenna Gain Level (max): 5 dBi • Number of Antennas: 4

✅ POWER

• Power Type: External Power Adapter • AC: Yes

✅ WEIGHT AND DIMENSIONS

• Product Width: 208.8 mm • Product Depth: 171.6 mm • Product Height: 41.7 mm
