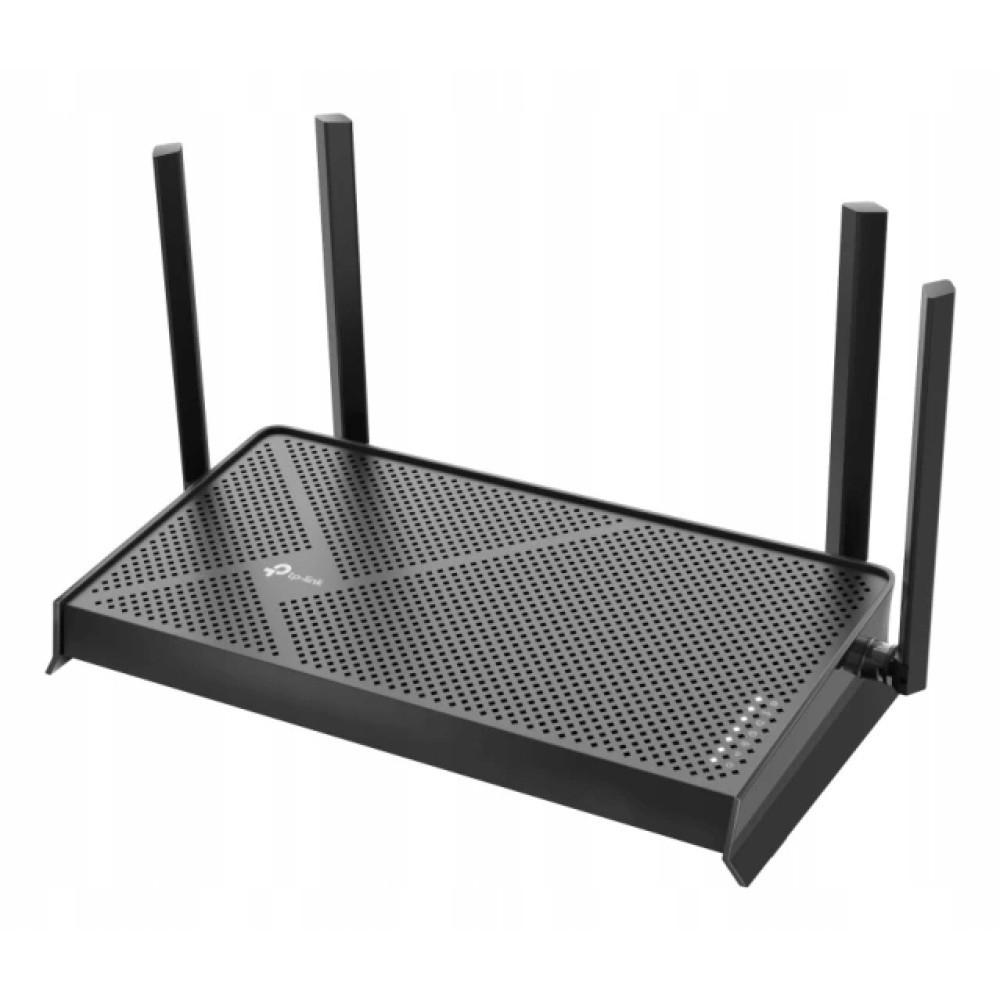

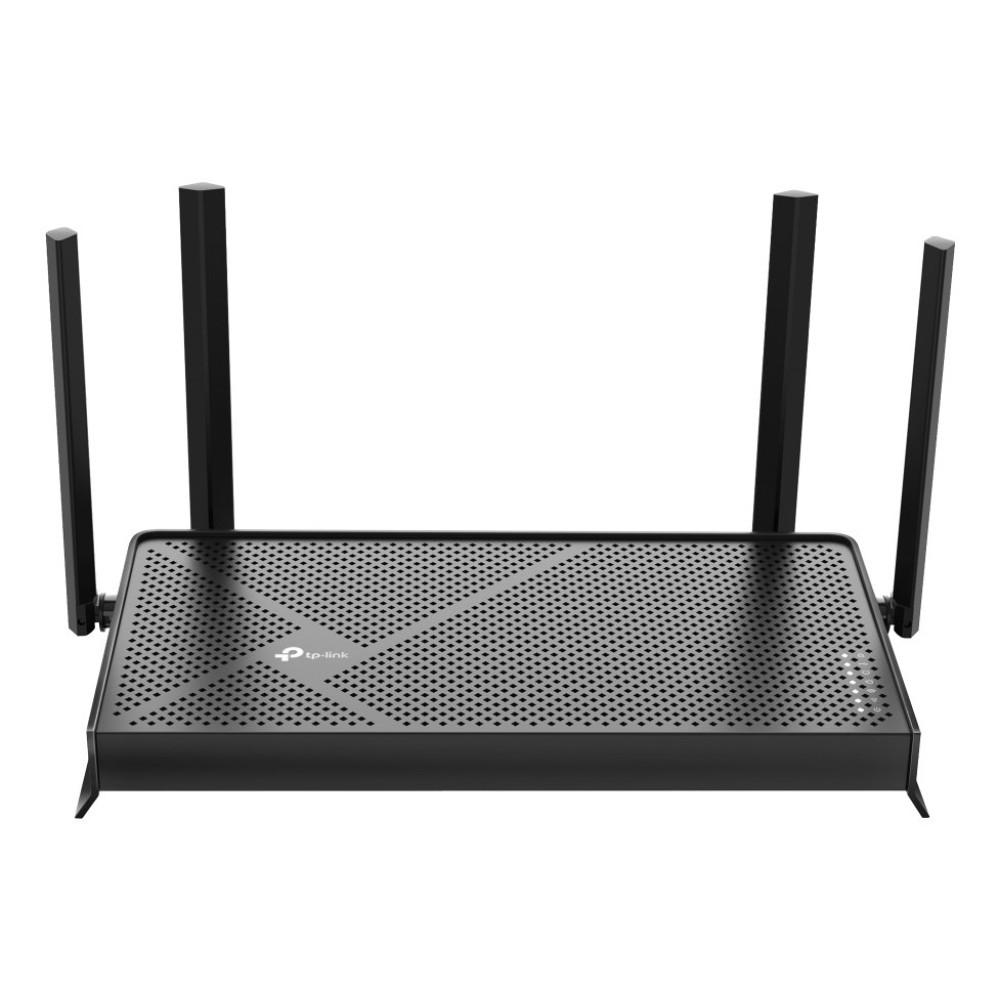

Router TP-Link Archer BE230

TP-Link Archer BE230 Router

WAN Connection

• Ethernet WAN: Yes • SIM Card Slot: No • 3G/4G USB Connection: No • WAN Connection Type: RJ-45

Wireless LAN Features

• Wi-Fi Frequency: Dual-band (2.4 GHz/5 GHz) • Basic Standard Wi-Fi: Wi-Fi 7 (802.11be) • WLAN data transfer rate (max): 2882 Mbit/s • Wi-Fi Standards: Wi-Fi 7 (802.11be) • WLAN data transfer rate (first band): 2882 Mbit/s • WLAN data transfer rate (second band): 688 Mbit/s • Modulation: 4096-QAM, OFDMA

Network

• Wired LAN: Yes • Ethernet LAN Interface Type: 2.5 Gigabit Ethernet • Ethernet LAN Data Transfer Rate: 1000 Mbit/s, 2500 Mbit/s • Wired Technology: 10/100/1000Base-T(X) • Port Forwarding: Yes • Port Triggering: Yes • Dynamic DNS (DDNS): Yes • Number of Guest Networks (2.4 GHz): 1 • Number of guest networks (5 GHz): 1 • Samba support (mass storage): Yes • Built-in FTP server: Yes • Media server: Yes • VPN support: • OpenVPN Server• PPTP VPN Server• L2TP VPN Server• WireGuard VPN Server

Management ports and interfaces

Web management: Yes

• Service quality support (QoS): Yes • Reset Button: Yes • WPS Button: Yes • Security • Encryption/Security: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3

• Firewall: Yes

• Guest Access: Yes

• Access Control List (ACL): Yes

• Parental Controls: Yes

• DDoS Protection: Yes

• IP Filtering: Yes

• DMZ Support: Yes

• Protocols

Design

Antenna

• Works with Amazon Alexa: Yes

• Works with Google Assistant: Yes

• Device Firmware Upgrades: Yes

• Power

Operating Conditions

Technical specifications and key features:

USB port:

• • Yes Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1

• Technology:

• Intelligent mesh: Yes Number of data streams: 4x4

• Dhcp server:

• • Yes Universal Plug and Play (UPnP): Yes

• Product Color:

• : Black Built-in On/Off Switch: Yes

• Product Type: Desktop Router

• Certifications: • Compliance: CE, Federal Communications Commission (FCC), RoHS Antenna Design:

• • External Number of Antennas: 4 • Power Type:

• • Alternating Current Operating Voltage: 12 V • Output Current: 1.5 A • Temperature Range (Operation):

• • 0 - 40 °C Relative Humidity Range: 10 - 90% •
