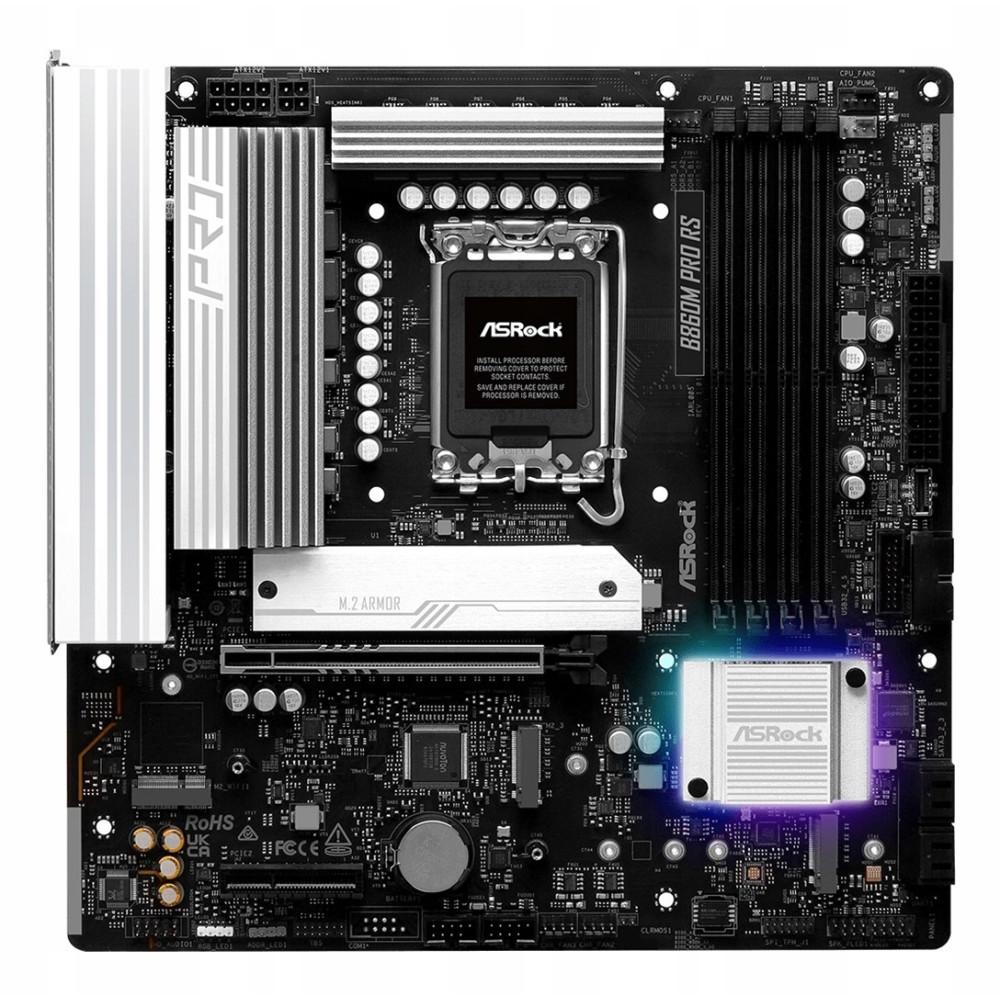

ASRock B860M Pro RS Motherboard

ASRock B860M Pro RS – modernity and reliability Compact form factor. Next-generation performance

The ASRock B860M Pro RS motherboard is designed for users who demand stability, high performance, and support for the latest technologies. Support for 14th and 13th Generation Intel® Core™ processors guarantees computing power suitable for both gaming and professional work. With support for high-clocked DDR5 memory, you'll experience faster system response, smoother multitasking, and higher data throughput.

Durability and safety

The Pro RS model features a solid construction and modern design. A high-efficiency power supply guarantees stable operation even under heavy loads, while ASRock technologies, including Full Spike Protection, protect components against surges and interference. Additionally, the microATX form factor makes the board a universal choice for both compact and complex computer builds.

​​

Modern Connectivity and Expansion

ASRock B860M Pro RS offers a rich set of connectors and ports that provide complete freedom in expanding your PC. You have fast USB 3.2 Gen1 ports, M.2 PCIe Gen4 connectors for lightning-fast NVMe SSDs, and PCIe 4.0 x16 for modern graphics cards. Integrated HDMI and DisplayPort connectors allow you to enjoy high-quality images without an additional graphics card, while the 2.5GbE network adapter ensures a fast and stable internet connection.

Specifications

Processor

• Processor Manufacturer: Processor Socket • Intel: LGA 1851 (Socket V1)

Safety Warning

• Warnings: To prevent damage, do not open or modify the motherboard., If you experience problems with installation, contact a qualified service center., When disposing of the product, follow local recycling regulations. electronics.

Memory

• Supported memory types: DDR5-SDRAM • Number of memory slots: 4 • Memory slot type: DIMM • Memory channel support: Dual-channel • Maximum memory capacity: 256 GB • Unbuffered memory: Yes

Memory controllers

• Supported hard drive interfaces: M.2, SATA III • Number of supported memory drive sizes: 7 • RAID service: Yes • RAID levels: 0, 1, 5, 10

Internal I/O

• Number of USB 2.0 ports: 2 • USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 • USB 3.2 Gen 2 (3.1 Gen 2) ports: 1 • Number of SATA III connectors: 4 • Front panel audio connector: Yes • ATX power connector (24-pin): Yes • CPU fan connector: Yes • Number of CPU fan connectors: 2 • Number of case fan connectors: 3 • EPS power connector (8-pin): Yes • Number of EPS Power Connectors (8-pin): 1 • TPM Connector: Yes • RGB LED: Yes • Number of RGB LED Connectors: 4

Back Panel I/O Ports

• Number of USB 2.0 Ports: 2 • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports: 3 • Number of USB 3.2 Gen 2x2 Type-C Ports: 1 • Number of Ethernet LAN (RJ-45) Ports: 1 • Number of HDMI Ports: 2 • Number of DisplayPorts: 1 • DisplayPort Version: 1.4 • Line-in: Yes • Microphone: Yes

Network

• Wired LAN: Yes • Type Ethernet Interface: 2.5 Gigabit Ethernet LAN Controller: Dragon RTL8125BG Wi-Fi: No Motherboard Chipset: Intel B860 Audio Chipset: Realtek ALC897 Audio Output Channels: 7.1 Channels Motherboard Form Factor: Micro ATX Chipset Family: Intel Supported Windows Operating Systems: Windows 11 x64 Expansion Slots PCI Express x4 (Gen 4.x) Slots: 1 PCI Express Slot x16 (Gen 5.x): 1 • Number of M.2 (M) slots: 1

BIOS

• BIOS type: EFI AMI

Weight and dimensions

• Product width: 244 mm • Product depth: 244 mm

Package contents

• Cables: SATA
