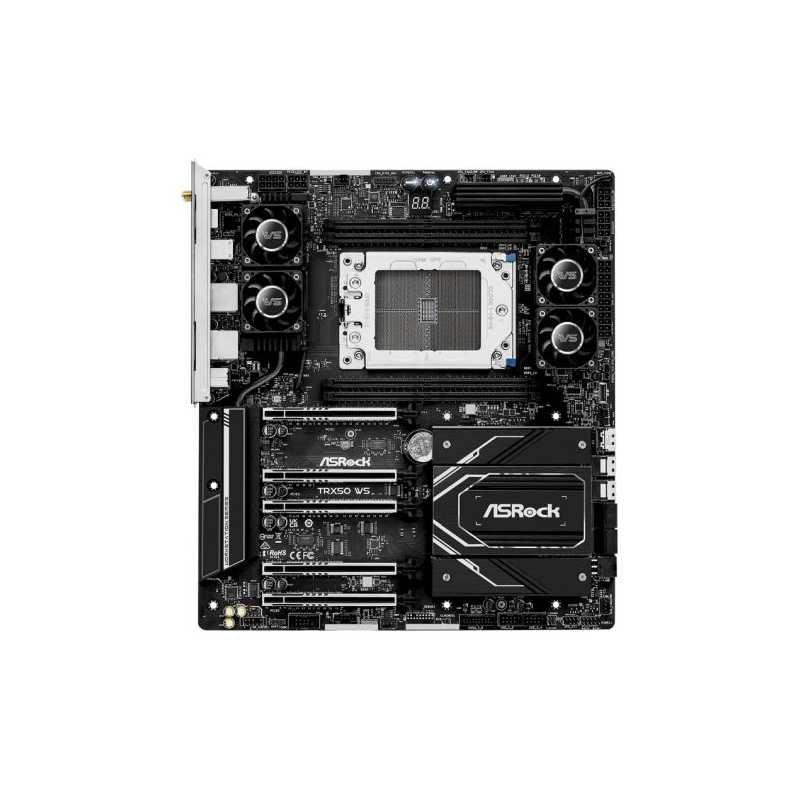

AsRock TRX50 WS Motherboard

Asrock TRX50 WS Motherboard Breakthrough Productivity for Demanding Tasks

The Asrock TRX50 WS is a true breakthrough in motherboards, designed for the most demanding users. With PCIe Gen5 for graphics cards and M.2, and quad-channel DDR5 memory, this motherboard delivers unprecedented performance, allowing you to complete the most advanced projects in record time. Compatible with AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series processors, it guarantees unrivaled computing power. The Asrock TRX50 WS is the ideal tool for professionals who need uncompromising power and speed in their work. The Asrock TRX50 WS stands out not only for its performance but also for its robust construction. A low-loss PCB, 18+3+3 power phase with 110A SPS for the VCore, and long-life 20K Black Caps capacitors ensure durability and stable operation even in the most extreme conditions. A pre-installed I/O shield further protects the board from damage, while 15μ gold-plated connectors ensure better contact and durability. This motherboard is built for long-term, heavy-duty use, offering the reliability professionals demand. Ultimate Connectivity and Affordability The Asrock TRX50 WS boasts state-of-the-art connectivity with 10G LAN, 2.5G LAN, and Wi-Fi 6E, providing ultra-fast data transfer speeds and stable network connections. Features like the BIOS Flashback Button and ASRock's automatic driver installer make system management and updates easier, crucial in dynamic work environments. PCIe 5.0 slots and advanced storage options with RAID 0, RAID 1, and RAID 10 support for SATA and NVMe SSDs open up new possibilities in terms of speed and storage capacity. The Asrock TRX50 WS is the perfect choice for those who need both advanced features and ease of use in everyday use.

Processor

Processor manufacturer: AMD Processor socket: Socket sTR5 Processor: AMD Ryzen™ 7000 Series

Supported processor sockets: Socket sTR5 Memory Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory slot type: DIMM

Memory Channel Support: Quad Channel

ECC Correction: Yes Maximum Memory Capacity: 1 TB Supported Memory Module Capacity: 32GB, 16GB, 64GB, 24GB, 48GB, 96GB Memory Controllers

Graphics

Internal I/O Number of USB 2.0 Ports: 2 Slots USB 3.2 Gen 1 (3.1 Gen 1): 1 Number of SATA ports: 4 ATX power socket (24-pin): Yes Number of case fan connectors: 3 Number of COM ports: 1

TPM connector: Yes

Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1

Back panel I/O ports

Number of USB ports 3.2 Gen 1 (3.1 Gen 1) Type-A: 2 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 4 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1 Number of Ethernet LAN (RJ-45) ports: 2 Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports: 1 Number of microphone inputs: 1 Line out: Yes SPDIF optical output: Yes

Number of antenna connectors: 2

Network Motherboard layout: AMD TRX50 Intended use: PC Motherboard format: EATX Chipset family: AMD Expansion slots PCI Express x16 (Gen 4.x) slots: 2 Number of M.2 (M) slots: 2 PCI Express x16 (Gen 5.x) slots: 3

BIOS

Operating Conditions Weight and Dimensions Technical Specifications and Key Features: Supported Hard Drive Interfaces:

Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)

Built-in Card Graphics: No Wired Lan:

Wake-On-LAN

Yes: Yes

Bios Type:

Clear CMOS Button

UEFI AMI: Yes Temperature Range (Storage):

Temperature Range (Operation) 10 - 35 °C: -40 - 70 °C

Product Width: 305 mm Product Depth: 277 mm
