Epdm Illbruck Me220 600mm/25mm Sealing Apron

ILLBRUCK ME220 EPDM APRON

WITHOUT ADHESIVE 600mm/25m

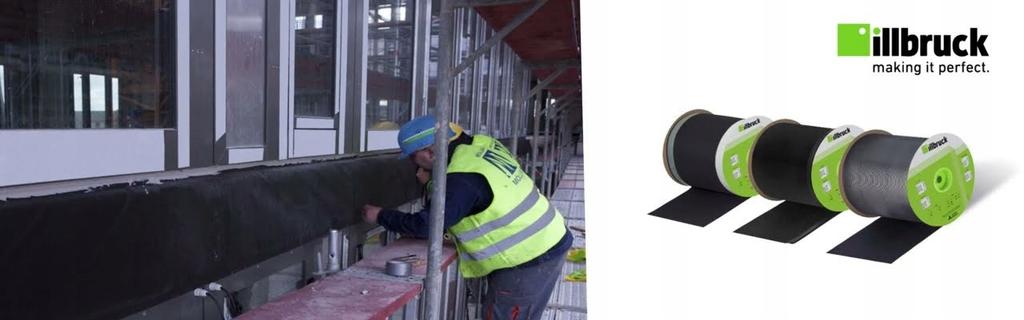

ME220 foil, an elastomeric membrane based on synthetic rubber, is designed for sealing joints between windows, as well as joints between curtain wall elements (mullion-transom) with structures made of aluminum profiles, and building construction.

• Excellent resistance to aging and UV radiation

• Resistant to driving rain (in the illbruck EPDM system up to 1200 Pa) and airtight (in the illbruck EPDM system a < 0.1)

• Tested in the most difficult operating conditions

• Recommended for use with OT015 adhesives (for non-porous substrates) and CT113 (for porous substrates)

Product also available on Mb offer no.: 14066877175

CT113 bucket 4.7kg (contains solvents) - offer no.: 13892601603

OT015 in foil 600ml (without solvents) - offer no.: 14091705569

CT600 - spray primer primer/adhesive (contains some solvents) - no. offers: 14087438657

• The substrate must be dry, free of oil, grease, dust and other contaminants that would hinder adhesion.

• ME901 Primer butyl & bitumen as a primer (adhesion increase): Airing time approx. 10 – 40 minutes, depending on the temperature. Consumption approx. 125 ml/m2 or approx. 200 m/l at a width of 4 cm (depending on the porosity of the substrate) or ME902 Primer butyl & bitumen in aerosol: approx.

50 m from one container / 25 m on a very absorbent substrate.

• Unroll ME220 from the roll and cut it to the desired length.

• The bonding surfaces (foil and/or substrate) should be greased. EPDM foil adhesive illbruck OT015 or CT113.

• Press the EPDM foil onto the substrate and lift it if necessary, so that the solvent can escape from the adhesive on larger surfaces.

• Then adhere the EPDM foil to the substrate and press thoroughly using a pressure roller.

• The EPDM foil with an adhesive layer (self-adhesive strip and/or butyl) can be adhered directly to a suitable substrate (self-adhesive strip for a smooth substrate, e.g. PVC, butyl e.g. for masonry, plaster) and pressed with a roller.

• In the case of butyl glue, it may be necessary to prime the substrate with Primer ME901 or Primer spray ME902 (in the case of EPDM adhesives, priming is not necessary if properly prepared).

• The ME220 foil should be adhered without tension.

Width: 60 cm Length: 25 m Thickness: 0.75 mm
