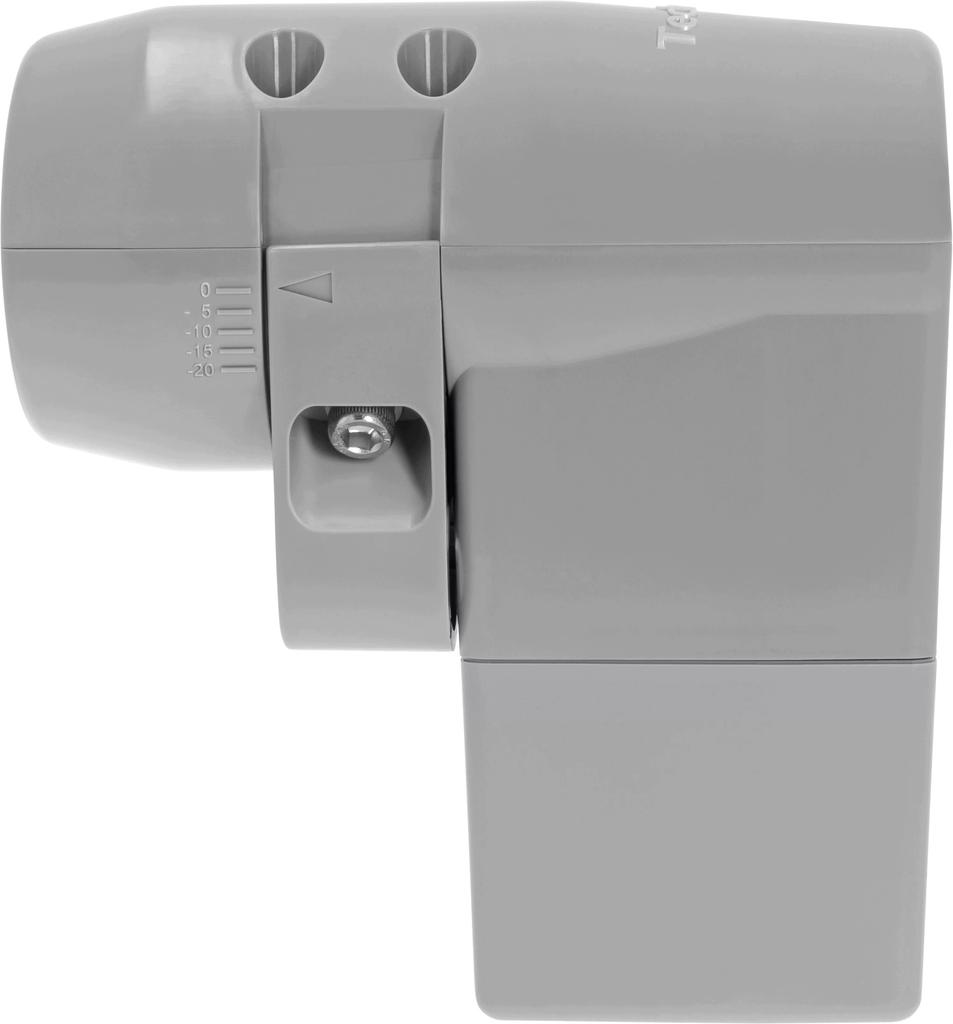

UNYSAT Unicable SCR 8+6 TechniSat SATMAN 4K converter

? The single-cable future on the SATMAN antenna – Dedicated TechniSat UNYSAT SCR 8+6 (Unicable) LNB

Do you want to feed up to 14 tuners/decoders with an independent signal, but are limited by the number of cables installed in your home? Standard 40 mm universal LNBs do not fit the iconic aluminum dishes from the TechniSat SATMAN series due to the specific shape of the housing.

The dedicated TechniSat UNYSAT Universal SCR 8+6 LNB converter solves this problem by combining the revolutionary Unicable (SCR) technology with the TechniSat factory mounting system!

This is a unique hybrid converter that, on a single output optimized for SCR technology, sends an independent signal to up to 8 Unicable receivers/frequencies over a single coaxial cable. Additionally, the device has 6 classic Legacy outputs, allowing direct connection of another 6 standard decoders.

⚠️ ATTENTION - ONE-CABLE UNICABLE MAGIC: The SCR/Unicable output requires decoders that support the Unicable standard (e.g. Ultrabox 4K Polsat Box / Canal+). Thanks to this, you can connect, for example, a multi-head decoder with a PVR recorder with one cable, using its full capabilities (recording multiple channels at once)!

? Why is the TechniSat UNYSAT SCR 8+6 the king of performance for SATMAN antennas?

• ?️ Dedicated UNYSAT mounting system: Direct, slide mounting to the arm of TechniSat SATMAN series antennas (35, 45, 65 and 85 cm). The lack of plastic adapters guarantees perfect alignment with the dish geometry and maximum signal amplification.

• ? Hybrid powerhouse (14 receivers): 1x SCR output (up to 8 Unicable frequencies over a single cable) + 6x classic Legacy output (for standard decoders). Together, you can handle up to 14 independent signals from a single antenna!

• ? Uncompromising 4K Ultra HD: The highest quality components ensure lossless, high-density signal transmission, offering flawless 4K, Full HD and 3D images throughout your home.

⚙️ Armored workmanship and advanced connector cover

Unicable technology requires flawless signal quality, and the UNYSAT series provides optimal operating conditions for the extensive electronics:

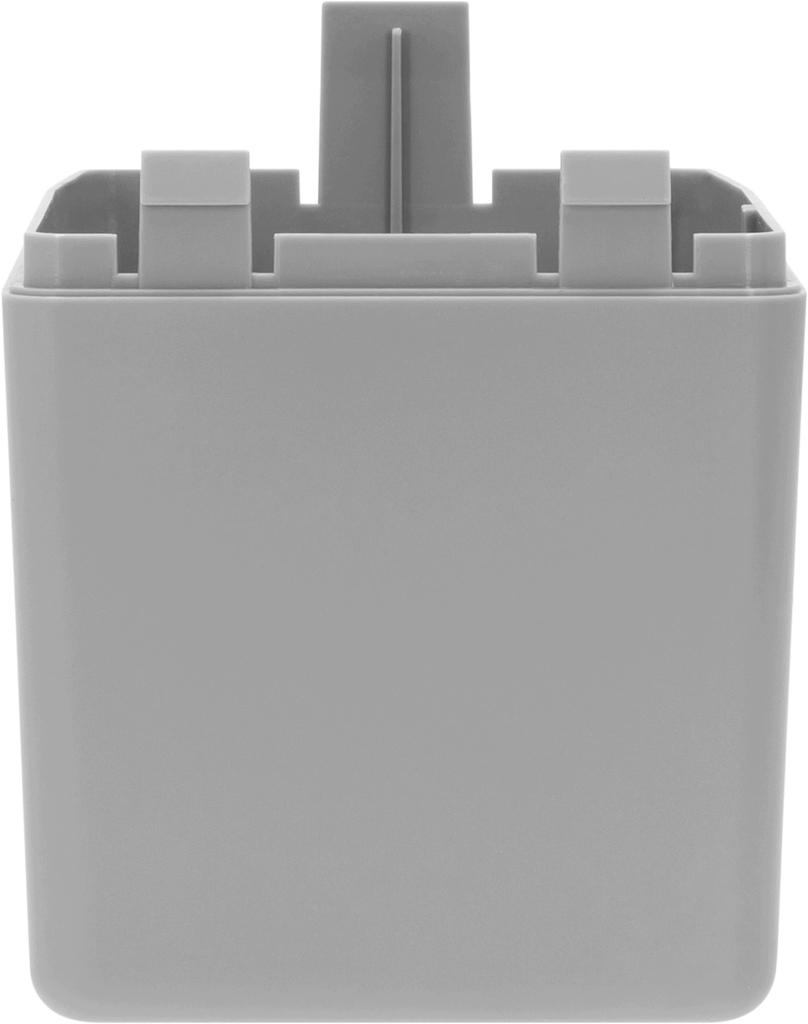

1. Integrated protective housing (UNYSAT System): The entire electronic module along with the set of output sockets is located inside a tight, damage-resistant housing. Once the wires are connected, the entire connector section is sealed off from moisture, rain, and snow.

2. Full weather resistance: The body, made of durable gray plastic, is 100% resistant to UV radiation and severe frost. The material does not crumble and fits perfectly with the gray and beige TechniSat SATMAN dishes.

3. No interference and clean band separation: Sensitive electronics eliminate SCR frequency overlap, ensuring a stable and cut-free image on all 14 potential receivers simultaneously.

? Technical data and specifications of the converter

• Manufacturer: TechniSat

• Series: UNYSAT

• Type of converter: SCR / Unicable + Legacy (Hybrid)

• Mounting: Dedicated UNYSAT mounting for TechniSat SATMAN series antennas (DOES NOT fit the universal 40 mm clamp!)

• Number of outputs:

1x SCR/Unicable output (up to 8 Unicable / UB channels on 1 cable)

6x Legacy output (classic, direct connection to a standard decoder)

• Maximum number of supported signals: 14 (8 SCR + 6 Legacy)

• Compatibility: 4K Ultra HD, Full HD, 3D, DVB-S, DVB-S2, Unicable I (EN50494)

• Lower input band: 10.7 - 11.7 GHz

• Upper input band: 11.7 - 12.75 GHz

• Color: Gray (Graphite)

? Knowledge base – Read before buying!

Does this LNB fit a standard antenna (e.g. Canal+, Polsat Box, Corab)? ABSOLUTELY NOT! The LNB has a dedicated UNYSAT mounting system. It works and fits ONLY with antennas from the TechniSat SATMAN series.

Due to the specific housing profile, you cannot mount it on a traditional 40 mm clamp in a standard antenna. If you have a different antenna, choose the universal 40 mm Unicable LNB from our other auctions.

What should I do if my decoder does not support Unicable/SCR technology? No problem! The converter has as many as 6 traditional Legacy outputs that work like a regular converter (you can connect any decoder to them, even an older one).

You can use the SCR output with newer 4K decoders that support Unicable or leave it for the future.

? Switch to single-cable technology without replacing your antenna. Order the dedicated TechniSat UNYSAT SCR 8+6 converter and connect your entire home in 4K quality!
